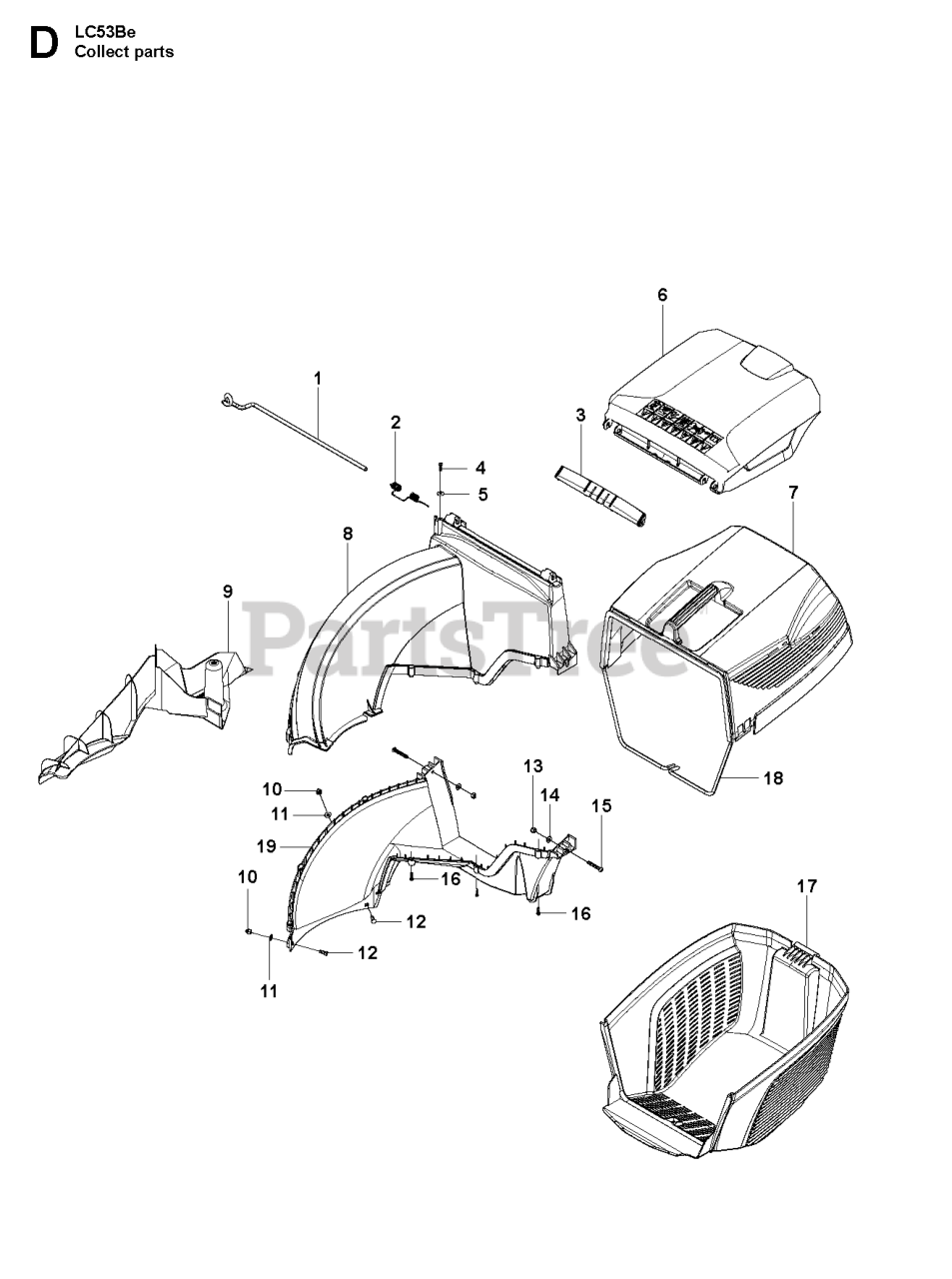

LC 53 BE (966669001-00) - Husqvarna Walk-Behind Mower (2011-01) BAGGER Parts Diagram

Walk-Behind Mower

BAGGER Parts Diagram

  • Title

14

Husqvarna 505198401

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 501987601

GRASSBAG LOWER

$

$

Not available

9

Husqvarna 505151401

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 502244701

SPRING SAFETY FLAP A009

$

$

Not available

11

Husqvarna 505198401

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 575885501

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 502245901

AXLE HATCH REAR DISCHARGE

$

$

Not available

18

Husqvarna 502447101

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 505557701

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

$2.49

$

Usually ships in 3-10 days

0

8

Husqvarna 505396701

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 505156101

NEEDS DESCRIPTION

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 522669302

NEEDS DESCRIPTION

$3.97

$

Usually ships in 3-10 days

0

7

Husqvarna 501987701

GRASSBAG UPPER

$

$

Not available

6

Husqvarna 501967701

HATCH REAR DISCHARGE

$

$

Not available

10

Husqvarna 502305001

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 502435301

SCREW ITXPANT T50X16 ZN/FE (A

$2.49

$

Usually ships in 3-10 days

0

19

Husqvarna 505396901

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 504598101

NEEDS DESCRIPTION

$

$

Currently unavailable

532 17 58-20

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

532 18 00-54

Husqvarna 532180054

48" HI-LIFT BLADE

$15.99

$

In Stock, Qty 20+

0

539 91 30-10

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

539 10 15-72

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 11

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

532 17 43-75

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$37.99

$

In Stock, Qty 16

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

532 17 43-56

Husqvarna 532174356

MANDREL ASM
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0

539 10 88-83

Husqvarna 539108883

SWIVEL

$

$

Not available

539 10 26-12

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$4.99

$

In Stock, Qty 6

0

539 10 75-20

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

532 18 06-55

Husqvarna 532180655

DEFLECTOR.ASM.BLACK.48"

$42.99

$

In Stock, Qty 15

0

539 10 97-80

Husqvarna 539109780

DECK IDLER ARM

$

$

Not available

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539 10 76-31

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

539 99 07-30

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

532 17 43-65

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

539 10 76-09

Husqvarna 539107609

TORSION SPRING

$4.99

$

In Stock, Qty 20+

0

539 99 01-96

Husqvarna 539990196

NUT 5/16C HEX

$1.49

$

Usually ships in 3-10 days

0

539 10 86-68

Husqvarna 539108668

TENSION RELIEF LEVER BLK

$

$

Not available

539 10 32-57

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

539 10 76-13

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

539 99 02-08

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

539 10 75-18

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

532 17 60-66

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

532 13 39-57

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

539 11 27-21

Husqvarna 539112721

DECK SVC W/DECALS HUSQ ORANGE

$

$

Not available

532 19 34-06

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

539 99 07-99

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

539 10 76-17

Husqvarna 539107617

PIVOT BUSHING
(Superseded to 532174606)

$4.99

$

In Stock, only 2 left!

0

539 10 32-95

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

539 10 80-25

Husqvarna 539108025

BELT SHIELD

$

$

Not available

539 10 76-30

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

539 10 76-26

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

539 99 05-82

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 10 78-03

Husqvarna 539107803

TENSION RELIEF LINKAGE

$

$

Not available

539 10 76-14

Husqvarna 539107614

VORTEX MOWER BAFFLE
(Superseded to 532174378)

$14.99

$

In Stock, Qty 13

0

532 13 14-91

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 19-77

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 12

0

539 10 12-31

Husqvarna 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

539 10 92-43

Husqvarna 539109243

BELT, DECK

$85.99

$

In Stock, Qty 8

0

539 10 76-27

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539 10 95-82

Husqvarna 539109582

SUPPORT PLATE, BLACK

$14.99

$

Usually ships in 3-10 days

0

539 11 27-32

Husqvarna 539112732

DECAL, BELT ROUTING
(Superseded to 539113942)

$7.49

$

In Stock, only 4 left!

0

539 10 22-43

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539 10 75-90

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0
