LH685-0011 - Kohler Aegis Engine, Made for Moridge Mfg., 23hp Oil Pan/Lubrication 3-66-13 Parts Diagram

Aegis Engine, Made for Moridge Mfg., 23hp

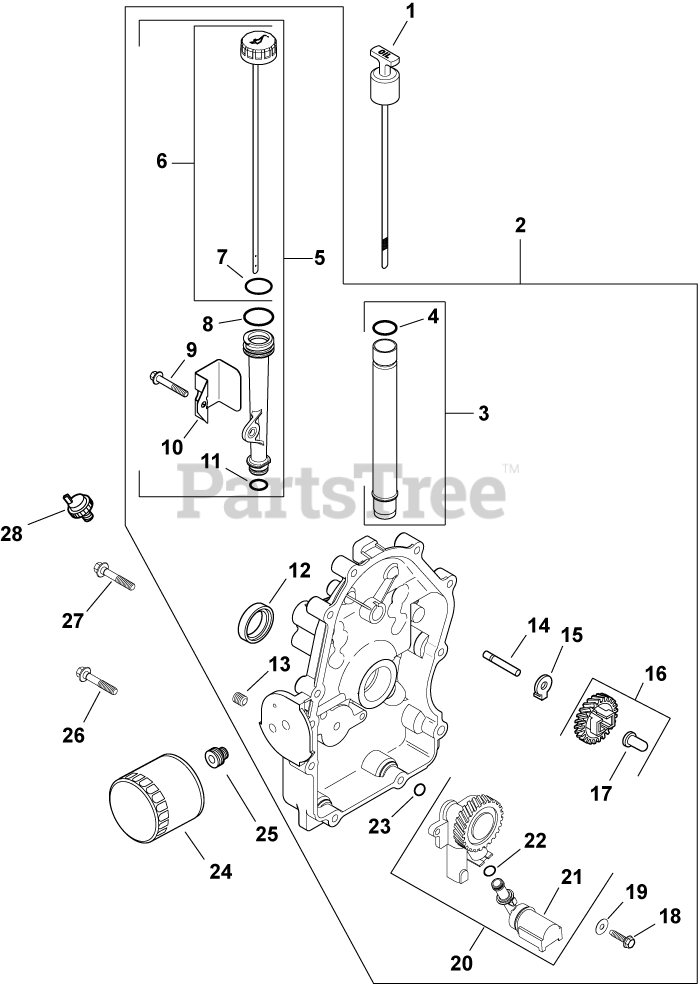

Oil Pan/Lubrication 3-66-13 Parts Diagram

  • Title

1

Kohler 24 038 08-S

DIPSTICK

Note: (BEFORE S/N 3522700011)

$33.99

$

Usually ships in 2-5 days

0

2

Kohler 24 009 165-S

KIT, CLOSURE PLATE ASSEMBLY USE 24 009 225-S
(Superseded to 24 009 239-S)

Note: (INCLUDES 3-23)

$451.99

$

Usually ships in 2-5 days

0

3

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

Note: (INCLUDES 4, 25 597 05-S, 270889-S, 12 468 03-S, 25 100 24-S, X-7-8-S)

$43.99

$

In Stock, only 1 left!

0

4

Kohler 41 153 01-S

O-RING

$6.99

$

In Stock, Qty 7

0

5

Kohler 24 123 22-S

KIT, OIL FILL TUBE - PLASTIC

Note: (INCLUDES 6-11)

$46.99

$

Usually ships in 2-5 days

0

6

Kohler 24 038 15-S

KIT, DIPSTICK

Note: (INCLUDES 7)

$22.99

$

In Stock, only 2 left!

0

7

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.99

$

In Stock, Qty 6

0

8

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$3.49

$

In Stock, Qty 13

0

9

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$3.49

$

Usually ships in 2-5 days

0

10

Kohler 24 314 49-S

SHIELD, DIPSTICK HEAT
(Superseded to 24 314 61-S)

$24.99

$

Usually ships in 2-5 days

0

11

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, only 3 left!

0

12

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$12.99

$

In Stock, Qty 20+

0

13

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

14

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, only 2 left!

0

15

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (INCLUDES 17)

$68.99

$

In Stock, only 2 left!

0

17

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, only 4 left!

0

18

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.99

$

In Stock, Qty 14

0

19

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 2 left!

0

20

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (INCLUDES 21, 22)

$

$

Not available

21

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

22

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 13

0

23

Kohler 24 153 08-S

O-RING

$7.99

$

In Stock, only 1 left!

0

24

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$16.99

$

In Stock, Qty 20+

0

25

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

26

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0

27

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.99

$

In Stock, Qty 20+

0

28

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 3 left!

0

2559705-S

Kohler 25 597 05-S

(Loctite 620 Retaining Compound) (0.5 ml.)
(Superseded to 25 597 11-S)

Note: NOT ILLUSTRATED (BEFORE S/N 3522700011)

$8.49

$

In Stock, only 2 left!

0

270889-S

Kohler 270889-S

WASHER, FLAT 13/32"

Note: NOT ILLUSTRATED (BEFORE S/N 3522700011)

$8.49

$

Usually ships in 2-5 days

0

1246803-S

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

Note: NOT ILLUSTRATED (BEFORE S/N 3522700011)

$6.49

$

In Stock, only 2 left!

0

2510024-S

Kohler 25 100 24-S

NUT, 3/8-16 GRADE 5

Note: NOT ILLUSTRATED (BEFORE S/N 3522700011)

$3.99

$

In Stock, Qty 6

0

X-7-8-S

Kohler X-7-8-S

SCREW, CAP HD 3/8-16x3/4"

Note: NOT ILLUSTRATED (BEFORE S/N 3522700011)

$3.49

$

Usually ships in 2-5 days
