LH685-3016 - Kohler Aegis Engine, Made for Walker Mfg., 23hp Cooling System 13-66-5 Parts Diagram

Aegis Engine, Made for Walker Mfg., 23hp

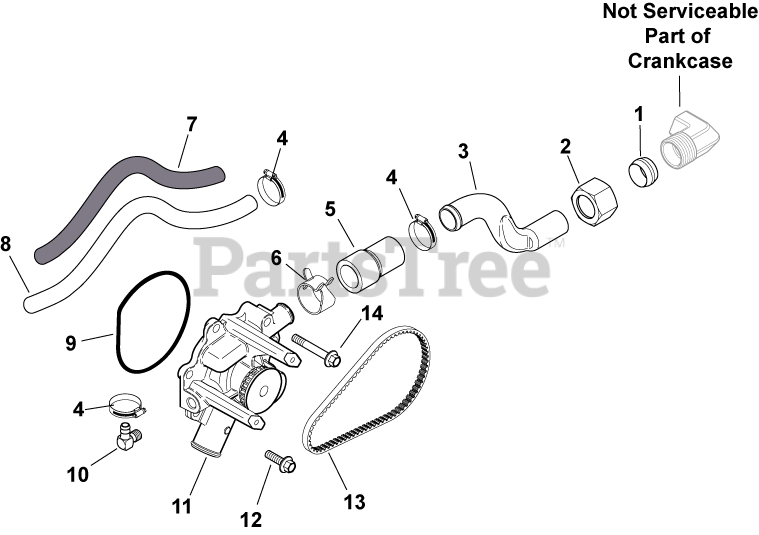

Cooling System 13-66-5 Parts Diagram

  • Title

1

Kohler 66 431 03-S

SLEEVE

$5.99

$

Usually ships in 2-5 days

0

2

Kohler 66 100 01-S

NUT

$19.99

$

Usually ships in 2-5 days

0

3

Kohler 66 123 03-S

TUBE, CROSSOVER - USE 66 755 16-S
(Superseded to 66 755 16-S)

$69.99

$

Usually ships in 2-5 days

0

4

Kohler 25 237 12-S

CLAMP, HOSE-USE 25 237 32-S
(Superseded to 25 237 32-S)

$7.99

$

Usually ships in 2-5 days

0

5

Kohler 66 123 01-S

HOSE, CROSSOVER - USE 66 755 16-S
(Superseded to 66 755 16-S)

$69.99

$

Usually ships in 2-5 days

0

6

Kohler 66 237 07-S

CLAMP

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

8

Kohler 66 326 24-S

HOSE, BY-PASS (12.00")

$10.99

$

Usually ships in 2-5 days

0

9

Kohler 66 153 01-S

O-RING

$2.99

$

In Stock, Qty 8

0

10

Kohler 45 155 01-S

CONNECTOR

$10.99

$

Usually ships in 2-5 days

0

11

Kohler 66 393 01-S

PUMP ASSEMBLY, WATER - USE 66 393 10-S
(Superseded to 66 393 10-S)

$383.99

$

In Stock, only 2 left!

0

12

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, only 4 left!

0

13

Kohler 66 203 01-S

BELT, WATER PUMP

$23.99

$

In Stock, only 4 left!

0

14

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
