LH685-3016 - Kohler Aegis Engine, Made for Walker Mfg., 23hp Fuel System 8-66-7 Parts Diagram

Aegis Engine, Made for Walker Mfg., 23hp

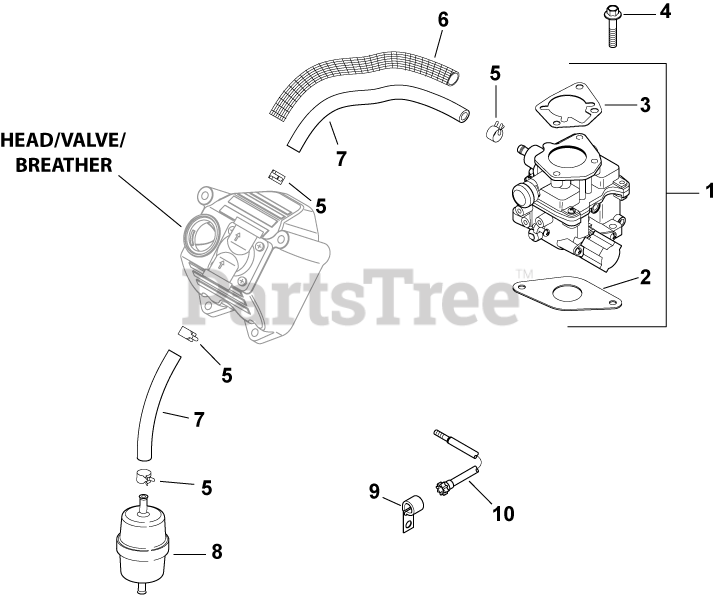

Fuel System 8-66-7 Parts Diagram

  • Title

1

Kohler 24 853 58-S

KIT, CARBURETOR W/GASKETS
(Superseded to 24 853 310-S)

Note: (INCLUDES 2, 3)

$285.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

3

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 9

0

4

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 7

0

6

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$5.99

$

Usually ships in 2-5 days

0

7

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 2 left!

0

8

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

9

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

10

Kohler 66 159 01-S

CABLE, CARBURETOR ADJUSTER

$71.99

$

Usually ships in 2-5 days

0
