LH690-0002 - Kohler Aegis Engine, Basic Version, 26hp, 19.4kW 05 Ignition/Charging Parts Diagram

Aegis Engine, Basic Version, 26hp, 19.4kW

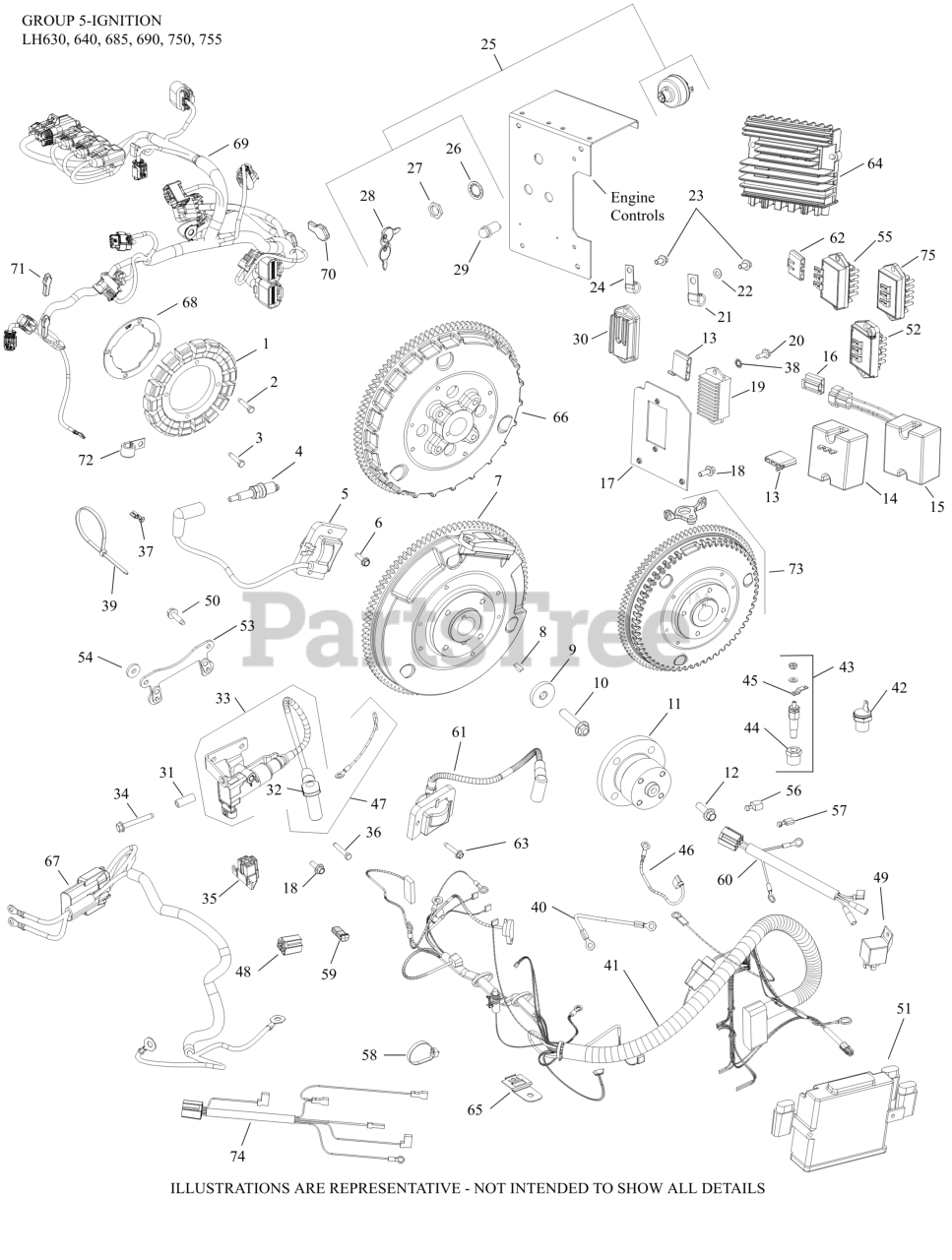

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 7

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$3.49

$

In Stock, only 2 left!

0

4

Kohler 66 132 01-S

SPARK PLUG

$8.99

$

Usually ships in 2-5 days

0

7

Kohler 24 025 112-S

FLYWHEEL, ASSEMBLY

$235.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

9

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

13

Kohler 25 155 41-S

CONNECTOR

$31.99

$

In Stock, only 3 left!

0

21

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

22

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

35

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

39

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

40

Kohler 24 518 12-S

KIT, GROUND, LEAD

$4.99

$

In Stock, only 2 left!

0

41

Kohler 66 176 20-S

HARNESS, WIRING

$

$

Not available

46

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

$6.99

$

Usually ships in 2-5 days

0

49

Kohler 20 404 01-S

RELAY

$55.99

$

In Stock, only 2 left!

0

52

Kohler 25 403 32-S

REGULATOR, RECTIFIER
(Superseded to 25 403 48-S)

$87.99

$

Usually ships in 2-5 days

0

58

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

61

Kohler 62 584 04-S

MODULE, IGNITION
(Superseded to 62 584 57-S)

$71.99

$

In Stock, only 2 left!

0

63

Kohler 25 086 472-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 5

0

72

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0
