LH690-0017 - Kohler Aegis Engine, Made for OD&G, 26hp, 19.4kW 08 Fuel System Parts Diagram

Aegis Engine, Made for OD&G, 26hp, 19.4kW

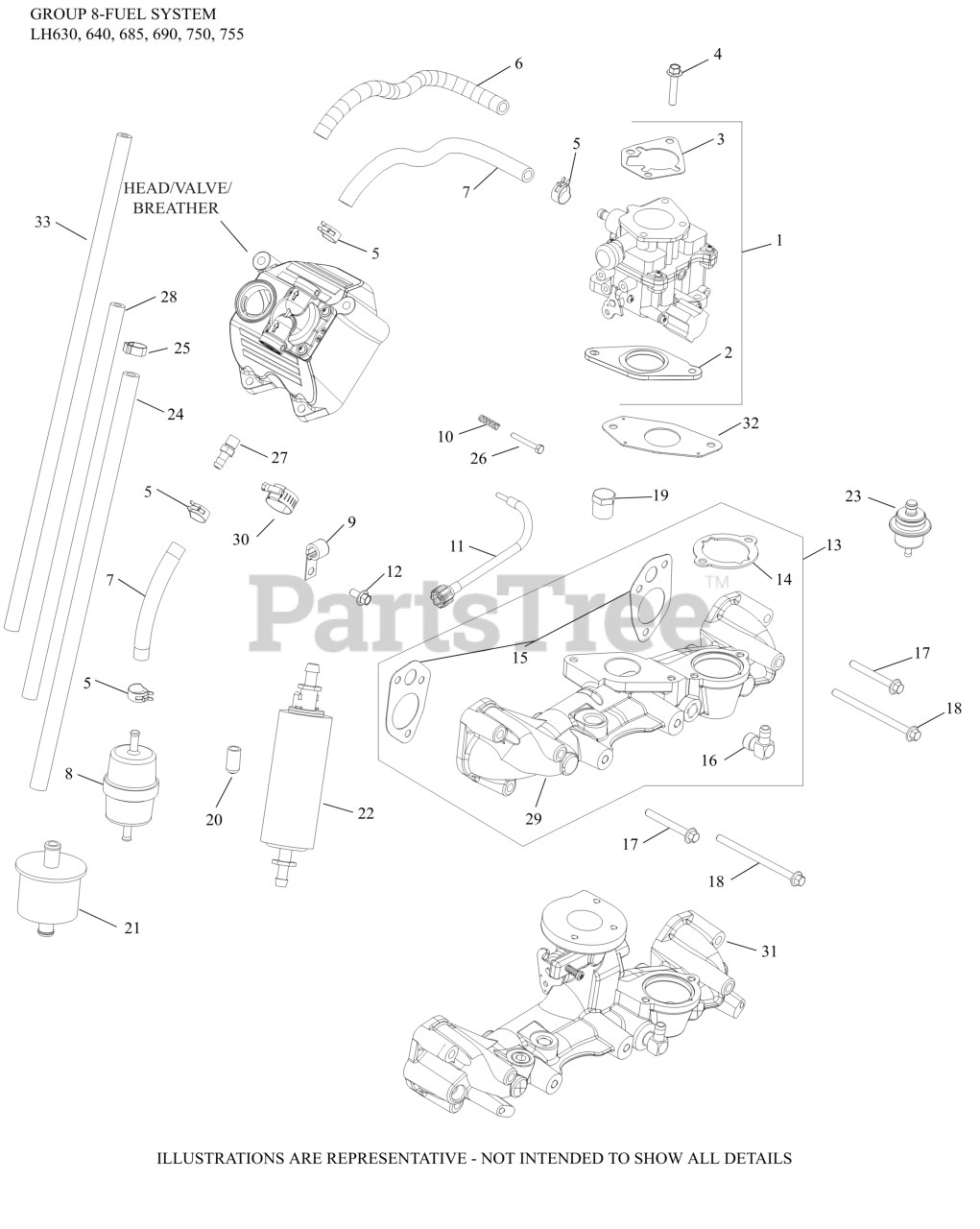

08 Fuel System Parts Diagram

  • Title

1

Kohler 24 853 59-S

KIT,CARB(KEIHIN) W/GASKETS
(Superseded to 24 853 311-S)

$288.99

$

In Stock, only 2 left!

0

2

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 6

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

5

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 20+

0

6

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

7

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

8

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

9

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

11

Kohler 66 159 01-S

CABLE, CARBURETOR ADJUSTER

$87.99

$

Usually ships in 2-5 days

0

13

Kohler 66 164 22-S

KIT, EFI INTAKE MANIFOLD

$621.99

$

Usually ships in 2-5 days

0

14

Kohler 66 041 01-S

GASKET, THERMOSTAT

$2.49

$

In Stock, Qty 10

0

15

Kohler 66 041 05-S

GASKET, INTAKE MANIFOLD

$2.49

$

In Stock, Qty 19

0

16

Kohler 45 155 01-S

CONNECTOR

Note: Before S/N 3612800011

$10.99

$

Usually ships in 2-5 days

0

16

Kohler 66 155 02-S

CONNECTOR, HOSE

Note: After S/N 3612800001

$12.99

$

Usually ships in 2-5 days

0

17

Kohler M-651050-S

SCREW, FLG M6X1.0X50

$2.99

$

Usually ships in 2-5 days

0

18

Kohler M-651090-S

SCREW, FLG M6X1.0X90

$2.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

$67.99

$

In Stock, only 1 left!

0

NI

Kohler 24 755 201-S

KIT, HIGH ALTITUDE (ABOVE 8,000)

$72.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 01-S

KIT, SOLENOID

$281.99

$

In Stock, only 3 left!

0

NI

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$166.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

$139.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$116.99

$

In Stock, only 2 left!

0
