LT 1046 (13AP11CH710) - Cub Cadet 46" Lawn Tractor (2007 & Before) Courage Engine Head Group Parts Diagram

46" Lawn Tractor

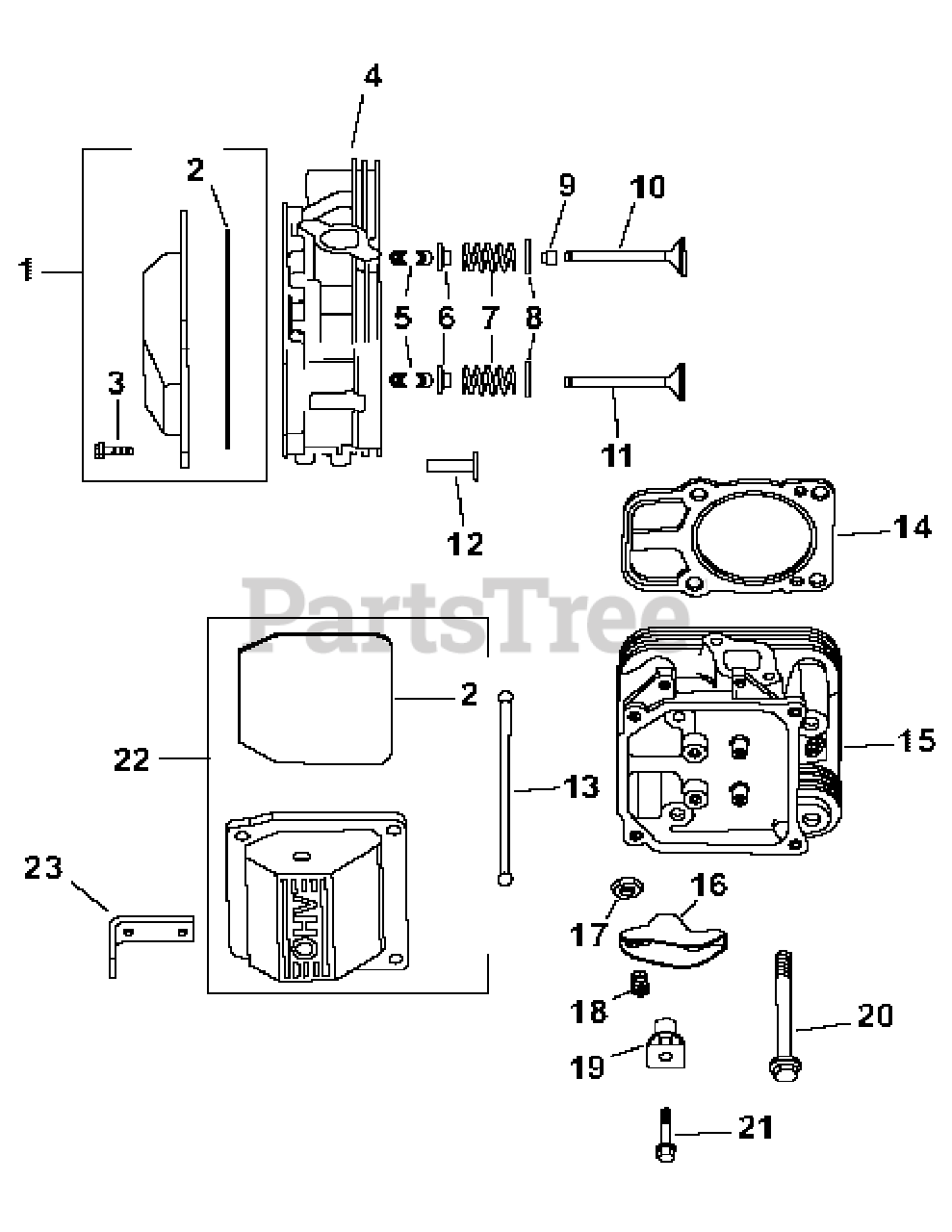

Courage Engine Head Group Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

Valve Cover Kit

$35.99

$

In Stock, Qty 7

0

2

Cub Cadet KH-24-153-28-S

O-Ring
(Superseded to KH-24-153-30-S)

$12.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-651030-S

Hex Flange Screw
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-32-318-01-S

Head Assembly # 1 Cylinder
(Superseded to KH-32-818-01-S)

$256.99

$

Usually ships in 0 days

0

5

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-12-173-01

Valve Spring Cap
(Superseded to KH-25-173-28-S)

$8.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

8

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-017-01

Intake Valve (Std.)

$

$

Not available

10

Cub Cadet KH-24-017-02

Intake Valve (.25)

$

$

Not available

11

Cub Cadet KH-24-016-01

Exhaust Valve (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-016-02

Exhaust Valve (.25)

$

$

Not available

12

Cub Cadet KH-32-019-01-S

Tappet
(Superseded to KH-32-019-02-S)

$16.99

$

In Stock, only 4 left!

0

13

Cub Cadet KH-32-411-02-S

Push Rod

$3.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-841-03-S

Cylinder Head Gasket Kit
(Superseded to KH-24-841-04-S)

$47.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-32-318-02-S

Head Assembly # 2 Cylinder
(Superseded to KH-32-318-14-S)

$152.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-32-186-02-S

Rocker Arm
(Superseded to KH-32-755-06-S)

$31.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-32-100-04-S

Hex Nut

$56.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-32-086-03-S

Set Screw

$3.49

$

In Stock, only 2 left!

0

19

Cub Cadet KH-32-599-02-S

Rocker Arm Pivot
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 7

0

20

Cub Cadet KH-12-086-16

Hex Flange Screw
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-M-651045-S

Hex Flange Screw
(Superseded to KH-32-086-04-S)

$

$

Not available

22

Cub Cadet KH-32-096-06-S

Valve Cover Breather Kit

$29.99

$

In Stock, only 3 left!

0

23

Cub Cadet KH-24-445-01

Lifting Strap
(Superseded to KH-25-445-03-S)

$

$

Not available

Cub Cadet KH-24-041-49-S

Exhaust Gasket

$3.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-153-27-S

O-Ring (Intake Port)

$3.99

$

In Stock, only 3 left!

0
