LT-135 (13AA692G190) - White Outdoor 42" Lawn Tractor (2002) Steering, Front Wheels, Axle Parts Diagram

42" Lawn Tractor

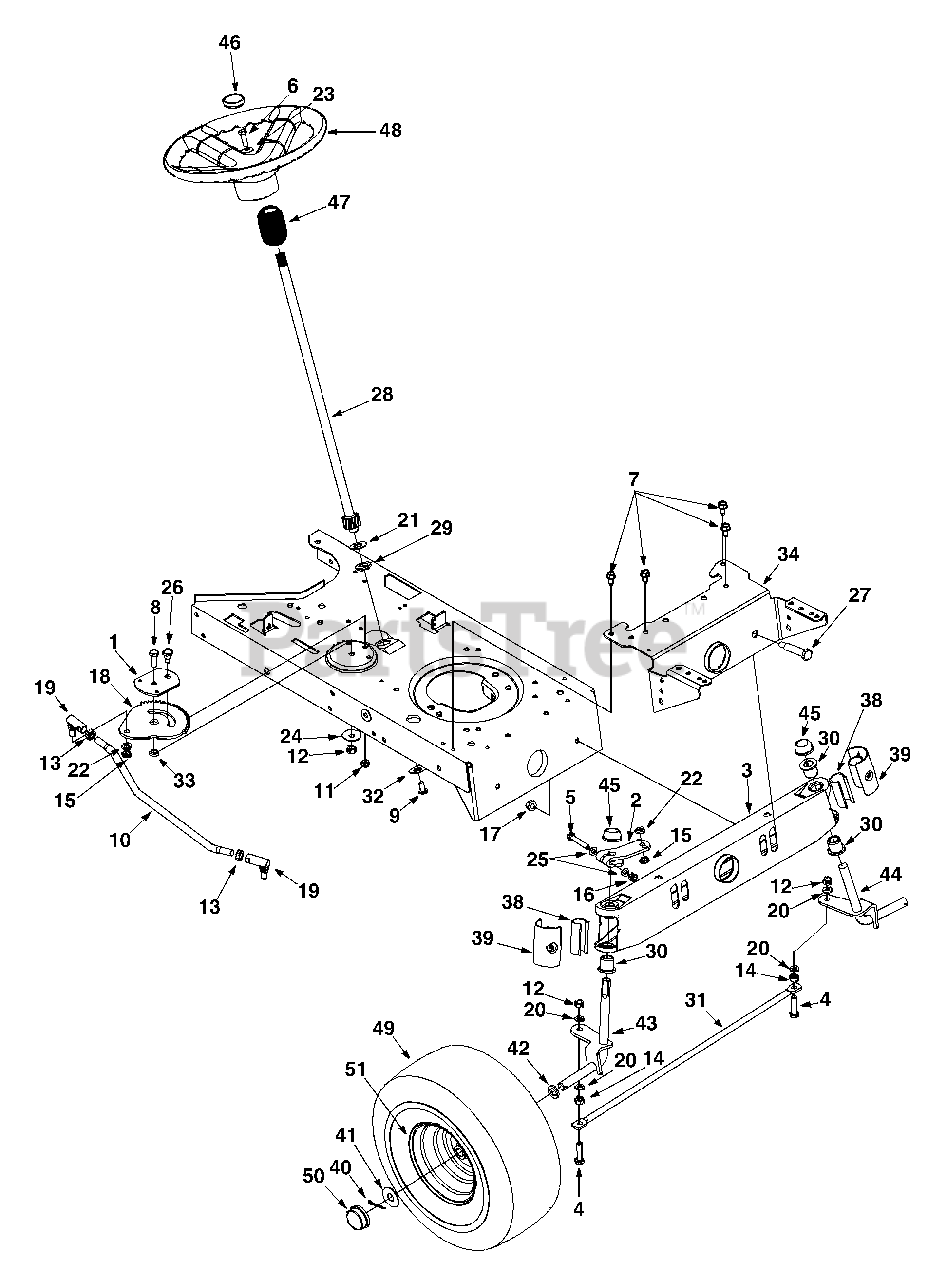

Steering, Front Wheels, Axle Parts Diagram

  • Title

1

White Outdoor 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.99

$

In Stock, Qty 7

0

2

White Outdoor 16481A

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$50.99

$

In Stock, Qty 9

0

3

White Outdoor 683-0128A

Pivot Bar Ass'y
(Superseded to 683-0128B)

Variations

683-0128A-0498

White Outdoor 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$102.99

$

In Stock, Qty 20+

0

683-0128A-0637

White Outdoor 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$102.99

$

In Stock, Qty 20+

0

683-0128A-0665

White Outdoor 683-0128A-0665

Pivot Bar, Yard-Man Green - YARDMAN GREEN (0665)

$102.99

$

In Stock, Qty 20+

0

683-0128A-0691

White Outdoor 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$102.99

$

In Stock, Qty 20+

0

$95.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)

$7.49

$

In Stock, Qty 10

0

5

White Outdoor 710-0593

Hex Bolt 5/16-24 x 2.25" Lg.

$

$

Not available

6

White Outdoor 710-0643

Hex Bolt 5/16-18 x 1" Lg.

$7.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1039

Hex Hd. Cap Scr. 3/8-24 x 1.0 Gr. 5

$4.99

$

In Stock, Qty 15

0

9

White Outdoor 710-1309

Hex Patch Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 747-1268A

Steering Drag Link
(Superseded to 747-1268B)

Note: (Requires one Ball Joint)

$

$

Not available

White Outdoor 741-0475

Plastic Bushing
(Superseded to 941-0475)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 712-3004A

5/16 Nut

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

12

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0240

Jam Nut 7/16-20 Gr. 2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-0241

Hex Nut 3/8-24 Gr.5

$4.99

$

In Stock, Qty 6

0

15

White Outdoor 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 15

0

16

White Outdoor 712-0411

Hex L-Nut 5/16-24 Thd.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-0431

Flanged L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 717-1757

Steering Gear Segment
(Superseded to 717-1757A)

$56.99

$

In Stock, Qty 6

0

19

White Outdoor 723-0448A

Ball Joint 7/16-20 Thd.
(Superseded to 923-0448A)

$25.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0169

L-Wash. 3.8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 736-0217

L-Wash.

$4.49

$

In Stock, only 3 left!

0

23

White Outdoor 736-0242

Bell. Wash. .340 I.D. x .872 O.D.

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 736-0356

Bell. Wash. .39 I.D. x 1.38 O.D.
(Superseded to 936-0356)

$

$

Not available

25

White Outdoor 736-3081

Fl-Wash. .320 x .600 x 060

$3.99

$

In Stock, Qty 6

0

26

White Outdoor 738-0141

Shoulder Bolt .437 x .35 Lg.
(Superseded to 938-0141)

$7.49

$

In Stock, only 1 left!

0

27

White Outdoor 738-0527

Shoulder Bolt

$9.49

$

In Stock, Qty 10

0

28

White Outdoor 738-0919

Steering Shaft
(Superseded to 738-0919B)

$62.99

$

In Stock, Qty 20+

0

29

White Outdoor 741-0656

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

30

White Outdoor 741-0659

Hex Flg. Brg. .632 I.D.
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 20+

0

31

White Outdoor 747-0861

Tie Rod
(Superseded to 747-0861-0637)

Variations

747-0861-0637

White Outdoor 747-0861-0637

Non-Adjustment Tie Rod, Black - POWDER BLACK (0637)

$32.99

$

In Stock, only 4 left!

0

$32.99

$

In Stock, only 4 left!

0

32

White Outdoor 748-0389

Cap
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

33

White Outdoor 750-0535

Spacer .380" I.D. x .625" O.D.
(Superseded to 950-0535)

$4.99

$

In Stock, Qty 10

0

34

White Outdoor 783-0041B

Pivot Bar Bracket
(Superseded to 783-0041C)

Variations

783-0041B-0483

White Outdoor 783-0041B-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

783-0041B-0637

White Outdoor 783-0041B-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

783-0041B-0638

White Outdoor 783-0041B-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

783-0041B-0648

White Outdoor 783-0041B-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

783-0041B-0650

White Outdoor 783-0041B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

783-0041B-0665

White Outdoor 783-0041B-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

38

White Outdoor 731-1649

Axle Cap

$

$

Not available

39

White Outdoor 731-1291A

Pivot Bar End Cap
(Superseded to 931-1291A)

Note: If Equipped

$16.99

$

In Stock, Qty 14

0

40

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

41

White Outdoor 736-0285

Fl-Wash. .635 I.D. x 1.589 O.D.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0162

Fl-Wash. .641 I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 683-0126

Front Axle Assembly R.H.
(Superseded to 983-0126)

$

$

Not available

44

White Outdoor 683-0127

Front Axle Assembly L.H.
(Superseded to 983-0127)

$107.99

$

In Stock, only 2 left!

0

45

White Outdoor 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

46

White Outdoor 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.99

$

In Stock, only 2 left!

0

47

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$

$

Not available

48

White Outdoor 631-0027

Steering Wheel
(Superseded to 931-0027A)

$103.99

$

Usually ships in 3-6 days

0

49

Wheel Assembly Comp.

Note: See "Front Wheel" items

$

$

Not available

50

White Outdoor 731-0484A

Front Wheel Hub Cap
(Superseded to 931-0484A)

$6.99

$

In Stock, Qty 20+

0

51

Front Wheel Rim Only

Note: See "Front Wheel" items

$

$

Not available

White Outdoor 634-0105A

Wheel Ass'y Comp. (15" x 6" Square Shoulder)
(Superseded to 634-0105B)

Note: Front Wheel Item

Variations

634-0105A-0911

White Outdoor 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$264.99

$

In Stock, only 3 left!

0

634-0105A-0912

White Outdoor 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$264.99

$

In Stock, only 3 left!

0

634-0105A-0914

White Outdoor 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$264.99

$

In Stock, only 3 left!

0

634-0105A-0915

White Outdoor 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$264.99

$

In Stock, only 3 left!

0

634-0105A-0916

White Outdoor 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$264.99

$

In Stock, only 3 left!

0

634-0105A-0931

White Outdoor 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

634-0105A-0941

White Outdoor 634-0105A-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$

$

Not available

634-0105A-0945

White Outdoor 634-0105A-0945

WHL ASM-COMP - Duro Yellow (0945)

$

$

Not available

$214.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731

Tire Only (15" x 6" Square Shoulder)

Note: Front Wheel Item

Variations

734-1731-0901

White Outdoor 734-1731-0901

TIRE SQUARE TREAD 15 X 5 - Carlisle (0901)

$52.99

$

Usually ships in 3-6 days

0

734-1731-0902

White Outdoor 734-1731-0902

TIRE 15 X 6 DICO-M - Dico (0902)

$47.99

$

In Stock, Qty 10

0

734-1731-0904

White Outdoor 734-1731-0904

TIRE SQUARE TREAD 15 X 5 - Cheng (0904)

$52.99

$

Usually ships in 3-6 days

0

734-1731-0905

White Outdoor 734-1731-0905

TIRE 15 X 6 - Duro (0905)

$52.99

$

Usually ships in 3-6 days

0

734-1731-0906

White Outdoor 734-1731-0906

TIRE 15 X 6 KENDA - Kenda (0906)

$52.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0172

Rim Only (15" x 6" Square Shoulder)
(Superseded to 934-0172A)

Note: Front Wheel Item

Variations

634-0172-0499

White Outdoor 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$110.99

$

Usually ships in 3-6 days

0

634-0172-0662

White Outdoor 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$110.99

$

Usually ships in 3-6 days

0

634-0172-0674

White Outdoor 634-0172-0674

RIM 6 X 4.5-YELLOW - YARDMAN YELLOW (0674)

$110.99

$

Usually ships in 3-6 days

0

634-0172-0688

White Outdoor 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$110.99

$

Usually ships in 3-6 days

0

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 741-0487A

Bearing (15" x 6" Square Shoulder)
(Superseded to 741-0487C)

Note: Front Wheel Item

$7.99

$

In Stock, Qty 20+

0

White Outdoor 734-0255

Air Valve (15" x 6" Square Shoulder)
(Superseded to 934-0255)

Note: Front Wheel Item

$4.49

$

In Stock, Qty 20+

0

White Outdoor 737-0211A

Grease Fitting (15" x 6" Square Shoulder)

Note: Front Wheel Item; (Optional)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 737-0212A

Grease Plug (15" x 6" Square Shoulder)

Note: Front Wheel Item

$

$

Not available

White Outdoor 683-0127

Front Axle Ass'y-L.H. (15" x 6" Square Shoulder)
(Superseded to 983-0127)

Note: Front Wheel Item

$107.99

$

In Stock, only 2 left!

0

White Outdoor 683-0126

Front Axle Ass'y-R.H. (15" x 6" Square Shoulder)
(Superseded to 983-0126)

Note: Front Wheel Item

$

$

Not available
