LT-14 (13BP673F190) - White Outdoor 38" Lawn Tractor (1999) Hood & Fender Assembly Parts Diagram

38" Lawn Tractor

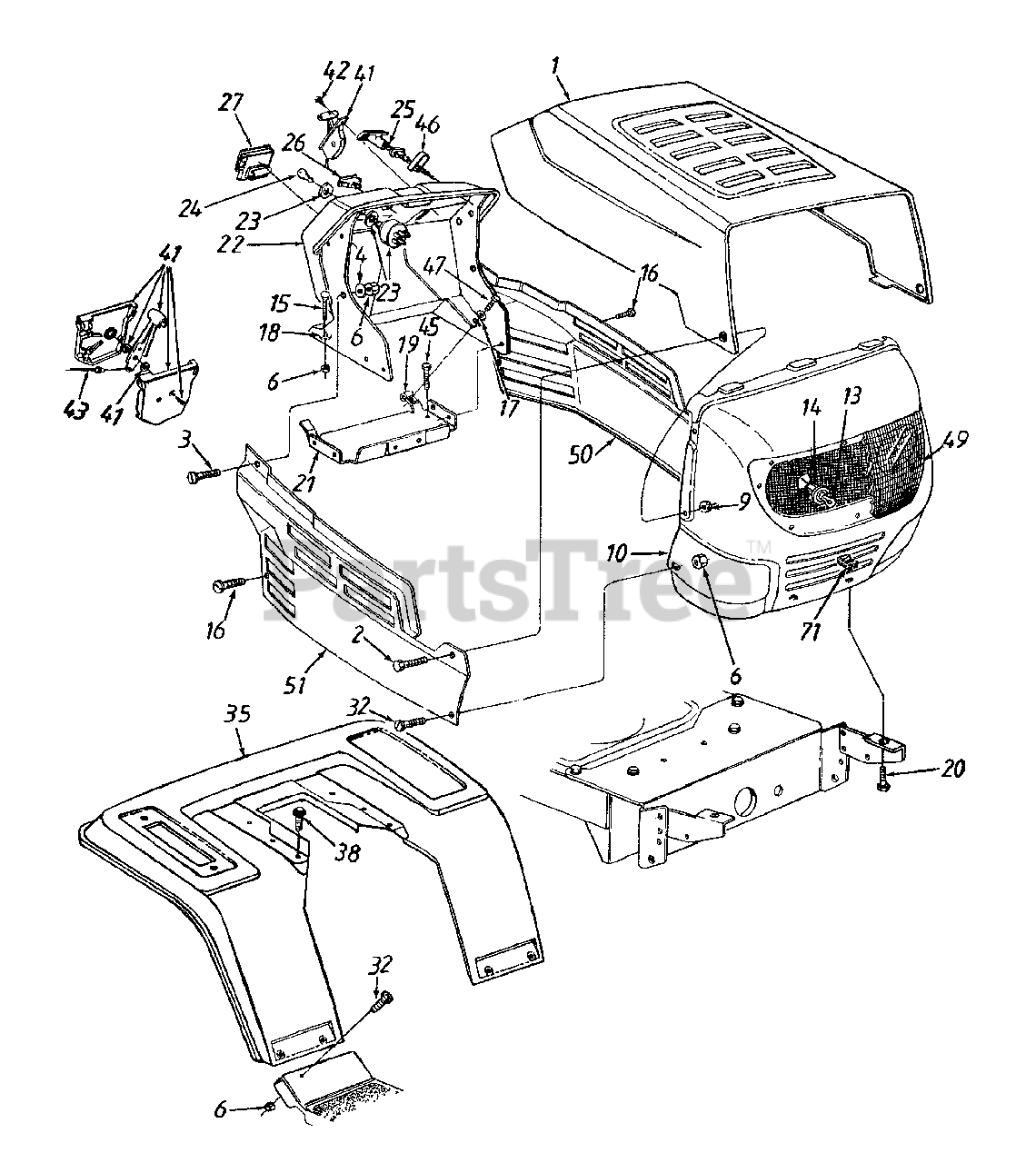

Hood & Fender Assembly Parts Diagram

  • Title

1

White Outdoor 783-0250-0662

Hood
(Superseded to 783-0250A-0662)

$

$

Not available

2

White Outdoor 738-0952

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, only 3 left!

0

3

White Outdoor 710-0924

Scr. 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 736-0342

Wash. .283 x .030

$7.99

$

Usually ships in 3-6 days

0

6

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 17

0

9

White Outdoor 712-3027

Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 783-0156A

Grille
(Superseded to 783-04979)

Variations

White Outdoor 783-0156A-0499

GRILL:2 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0156A-0483

GRILL:2 STYLE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0156A-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0156A-0638

GRILLE STYLE 2 RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0156A-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0156A-0665

GRILL:2 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0156A-0667

GRILL:2 STYLE - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0156A-0674

GRILLE STYLE 2 YARD-MAN YELLOW - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0156A-0687

GRILL:2 STYLE - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0156A-0688

No Longer Available GRILLE-STYLE 3 - SPRING GREEN (0688)

$

$

Not available

White Outdoor 783-0156A-0689

GRILL:2 STYLE - POLO GREEN (0689)

$

$

Not available

White Outdoor 783-0156A-0691

GRILLE STYLE 2-BLACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0156A-0709

GRILL:2 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0156A-0717

GRILL:2 STYLE - SILVER MIST (0717)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

13

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

15

White Outdoor 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-0185

Speed Nut 1/4-20

$

$

Not available

20

White Outdoor 710-0376

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 17632A

Gas Tank Support Brkt.

Variations

White Outdoor 17632A-0637

No Longer Available BRACKET-GAS TANK S - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 731-1692

Dash w/Ammeter Hole

$

$

Not available

23

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$46.99

$

In Stock, Qty 10

0

24

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.99

$

In Stock, Qty 10

0

25

White Outdoor 746-0616A

Choke Control
(Superseded to 946-0616A)

$28.99

$

In Stock, only 2 left!

0

26

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$18.99

$

In Stock, Qty 5

0

27

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

32

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

White Outdoor 783-0350

Fender

Variations

White Outdoor 783-0350-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0350-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0350-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0350-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0350-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0350-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0350-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0350-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0350-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0350-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0350-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0350-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

35

White Outdoor 730-3000

Reflector
(Superseded to 930-3000)

Note: Not shown

$18.99

$

In Stock, only 2 left!

0

38

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 831-0823A

Throttle Box Ass'y.

$34.99

$

In Stock, Qty 20+

0

42

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.99

$

In Stock, Qty 8

0

43

White Outdoor 746-0776

Throttle Control Wire
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

45

White Outdoor 710-0607

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$6.99

$

In Stock, Qty 20+

0

46

White Outdoor 17782

Choke Retainer

$4.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.99

$

In Stock, Qty 20+

0

49

White Outdoor 731-1503A

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

49

White Outdoor 726-04077

Nut, Push 3/32

Note: Not shown

$

$

Not available

50

White Outdoor 783-0151-0662

Side Panel - L.H.

$

$

Not available

51

White Outdoor 783-0150A-0662

Side Panel - R.H.

$

$

Not available

71

White Outdoor 726-0211

U-Nut 5/16-18 Thd.

$4.99

$

In Stock, only 3 left!

0
