LT 2246 (2691145-00) - Snapper 46" Lawn Tractor, 22hp Engine Group Parts Diagram

46" Lawn Tractor, 22hp

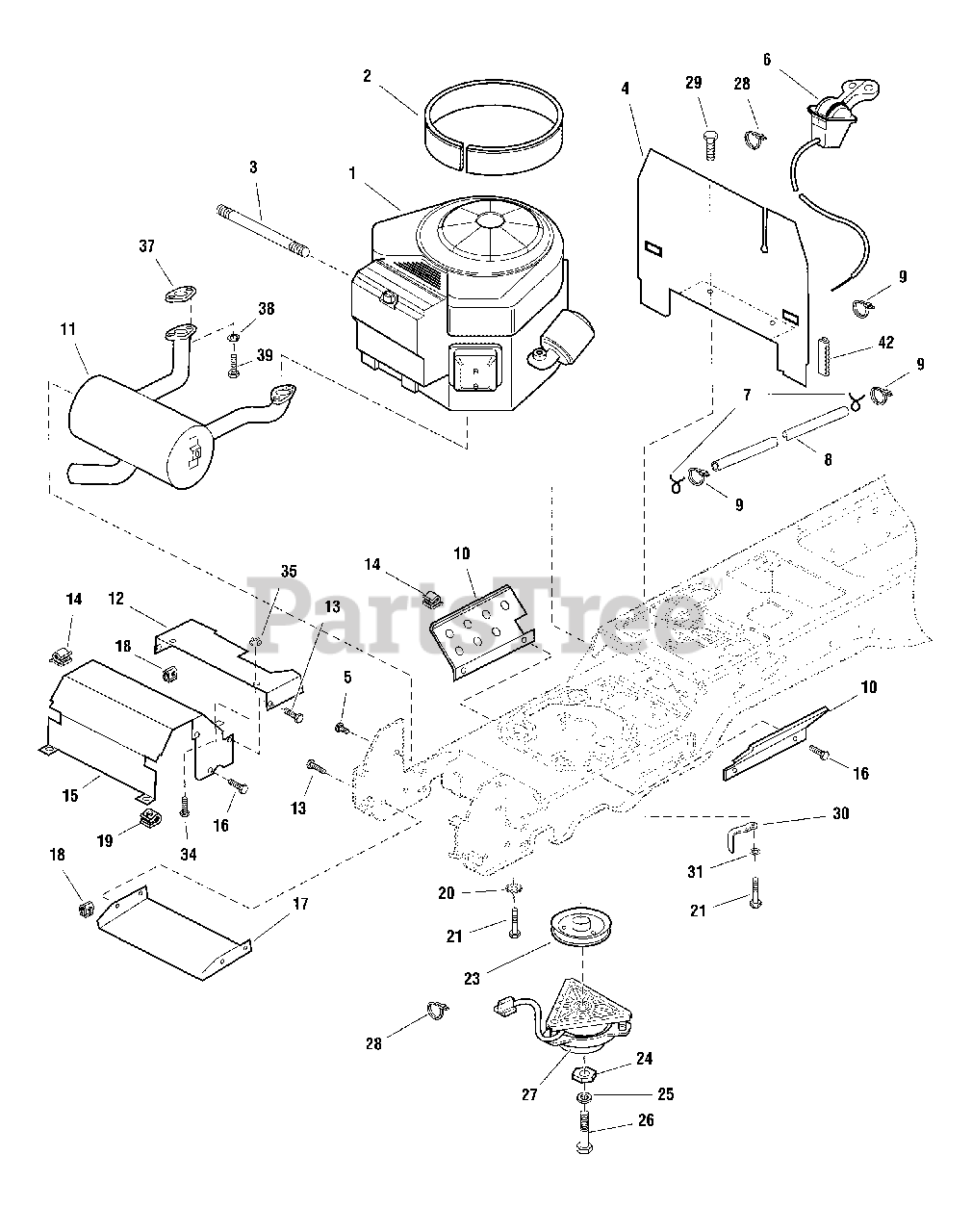

Engine Group Parts Diagram

  • Title

1

Snapper 40H777-5136-G5

* ENGINE, 22 HP Briggs & Stratton Pro Series Twin, Model 40H777-2136-G5

$

$

Not available

2

Snapper 1734166SM

EDGING, Airduct

$21.99

$

Usually ships in 2-12 days

0

3

Snapper 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, only 1 left!

0

4

Snapper 1722388ASM

HEAT SHIELD

$39.99

$

In Stock, only 1 left!

0

5

Snapper 1924856SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

6

Snapper 1737747YP

THROTTLE CONTROL

$

$

Not available

7

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

8

Snapper 1734985SM

HOSE, Fuel

$20.99

$

Usually ships in 2-12 days

0

9

Snapper 1701011SM

TIE, Self Locking, 7-5/16 Long

$5.49

$

In Stock, only 2 left!

0

10

Snapper 1722392ASM

SHIELD, Side, Heat

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 1721706SM

MUFFLER ASSEMBLY

$231.99

$

Usually ships in 2-12 days

0

12

Snapper 1722390ASM

DUCT, Muffler Extension

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 1960295SM

CAPSCREW, Hex, Whiz Lock, 1/4-20 x 5/8

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

In Stock, only 1 left!

0

15

Snapper 1722389ASM

DUCT, Muffler Top

$80.99

$

Usually ships in 2-12 days

0

16

Snapper 1927428SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 1722414ASM

SHIELD, Muffler Bottom

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

19

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, Qty 6

0

20

Snapper 2820427SM

WASHER, Locking, External Teeth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 2830598SM

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

23

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 3 left!

0

24

Snapper 1708264SM

WASHER, Hex, 7/16 x 1-1/2

$8.99

$

In Stock, Qty 7

0

25

Snapper 1918199SM

WASHER, Locking, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

26

Snapper 1960649SM

CAPSCREW, Hex Head 7/16-20 x 3-1/2

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 1736105SM

CLUTCH, Electric

$387.99

$

Usually ships in 2-12 days

0

28

Snapper 2832747SM

TIE, Self Locking

$3.99

$

Usually ships in 2-12 days

0

29

Snapper 1925003SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 1737421AYP

GUIDE, Belt Retainer, Clutch

$12.99

$

In Stock, only 1 left!

0

31

Snapper 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 5025299X4SM

CAPSCREW, Allen Head 1/4-20

$4.99

$

In Stock, only 4 left!

0

35

Snapper 703233

NUT, 1/4-20 Hex Serrated Flange

$4.49

$

In Stock, only 1 left!

0

37

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 14

0

38

Snapper 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 2860660SM

CAPSCREW, Socket Head, 5/16-18 x 7/8, G8

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 1723894SM

EDGING

$4.99

$

Usually ships in 2-12 days

0
