LV675-851515 - Kohler Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW Fuel System (TP-2508) Parts Diagram

Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW

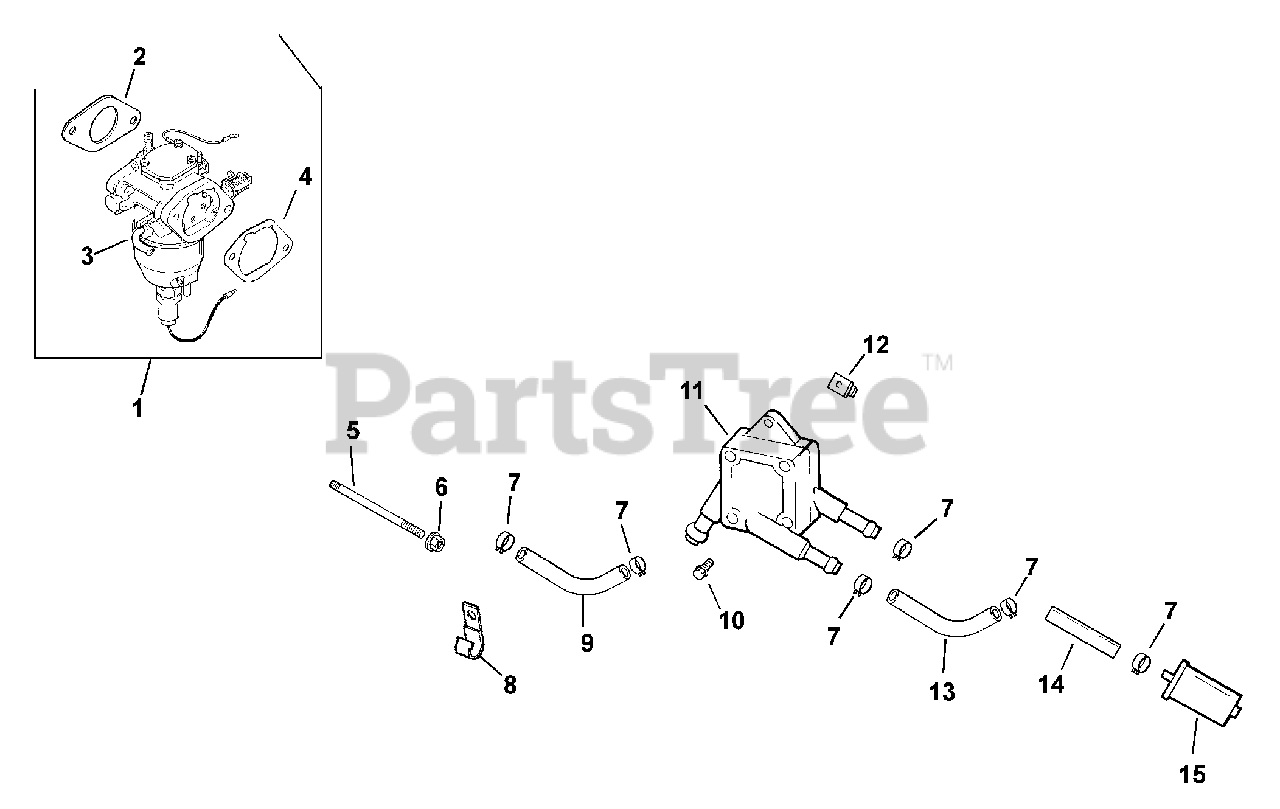

Fuel System (TP-2508) Parts Diagram

  • Title

1

Kohler 66 853 10-S

KIT, CARBURETOR W/ GASKETS

Note: Includes 2-4

$254.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

3

Kohler 66 053 10

Carburetor assembly

Note: For information only not available separately; Service with 24 757 18-S, 24 757 19-S, 24 757 20-S, & 66 757 01-S

$

$

Not available

4

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

5

Kohler M-629116-S

STUD,M6X1.0X116

$

$

Not available

6

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.49

$

In Stock, only 2 left!

0

8

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

9

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 12

0

12

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

13

Kohler 28 353 01-S

LINE, FLEXIBLE FUEL - DISCONTINUED

$

$

Not available

14

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 8

0

15

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$17.99

$

In Stock, Qty 20+

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED.

$202.99

$

In Stock, only 1 left!

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED.

$98.99

$

In Stock, only 2 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED.

$71.99

$

In Stock, only 2 left!

0

6675701-S

Kohler 66 757 01-S

KIT, SOLENOID REPAIR W/GSKTS

Note: NOT ILLUSTRATED.

$

$

Not available
