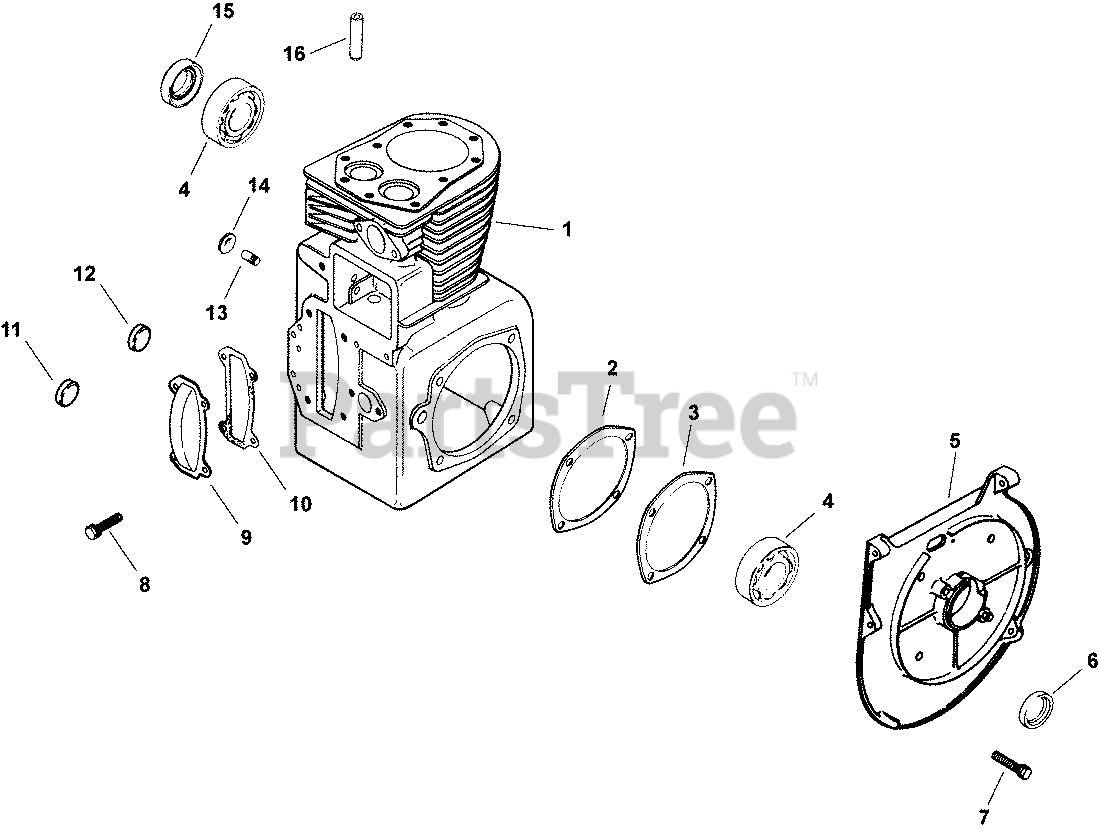

M10-461522 - Kohler Magnum Engine, Made for Hydralada, 10hp, 7.5kW Crankcase Created 4/3/2006 Parts Diagram

Magnum Engine, Made for Hydralada, 10hp, 7.5kW

Crankcase Created 4/3/2006 Parts Diagram

  • Title

1

CRANKCASE ( USE: MINI BLOCK)

$

$

Not available

2

Kohler 47 422 05-S

SHIM

$4.49

$

In Stock, only 2 left!

0

3

Kohler 47 041 09-S

GASKET, BEARING PLATE - DISCONTINUED

$

$

Not available

4

Kohler 235376-S

BEARING, BALL

$232.99

$

Usually ships in 2-5 days

0

5

Kohler 47 146 11-S

PLATE, BEARING - DISCONTINUED

$

$

Not available

6

Kohler 47 032 06-S

SEAL, FRONT OIL

$21.99

$

In Stock, only 4 left!

0

7

Kohler X-159-2-S

SCREW, SEMS 3/8-16-X1"

$4.49

$

Usually ships in 2-5 days

0

8

Kohler X-132-6-S

SCREW, SEMS 1/4-20-1/2"

$3.49

$

Usually ships in 2-5 days

0

9

Kohler 235026-S

COVER, CAMSHAFT - DISCONTINUED

$

$

Not available

10

Kohler 235025-S

GASKET, CAMSHAFT COVER

$10.99

$

In Stock, Qty 7

0

11

Kohler 25 139 48-S

PLUG, CUP

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 25 139 50-S

PLUG, CUP 1/2"

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 235125-S

SHAFT, GOVERNOR GEAR

$98.99

$

Usually ships in 2-5 days

0

14

Kohler X-230-11-S

PLUG, WELCH EXPANSION

$2.99

$

In Stock, only 2 left!

0

15

Kohler 47 032 07-S

SEAL, REAR OIL

$

$

Not available

16

Kohler 235007-S

GUIDE, VALVE - DISCONTINUED

$

$

Not available
