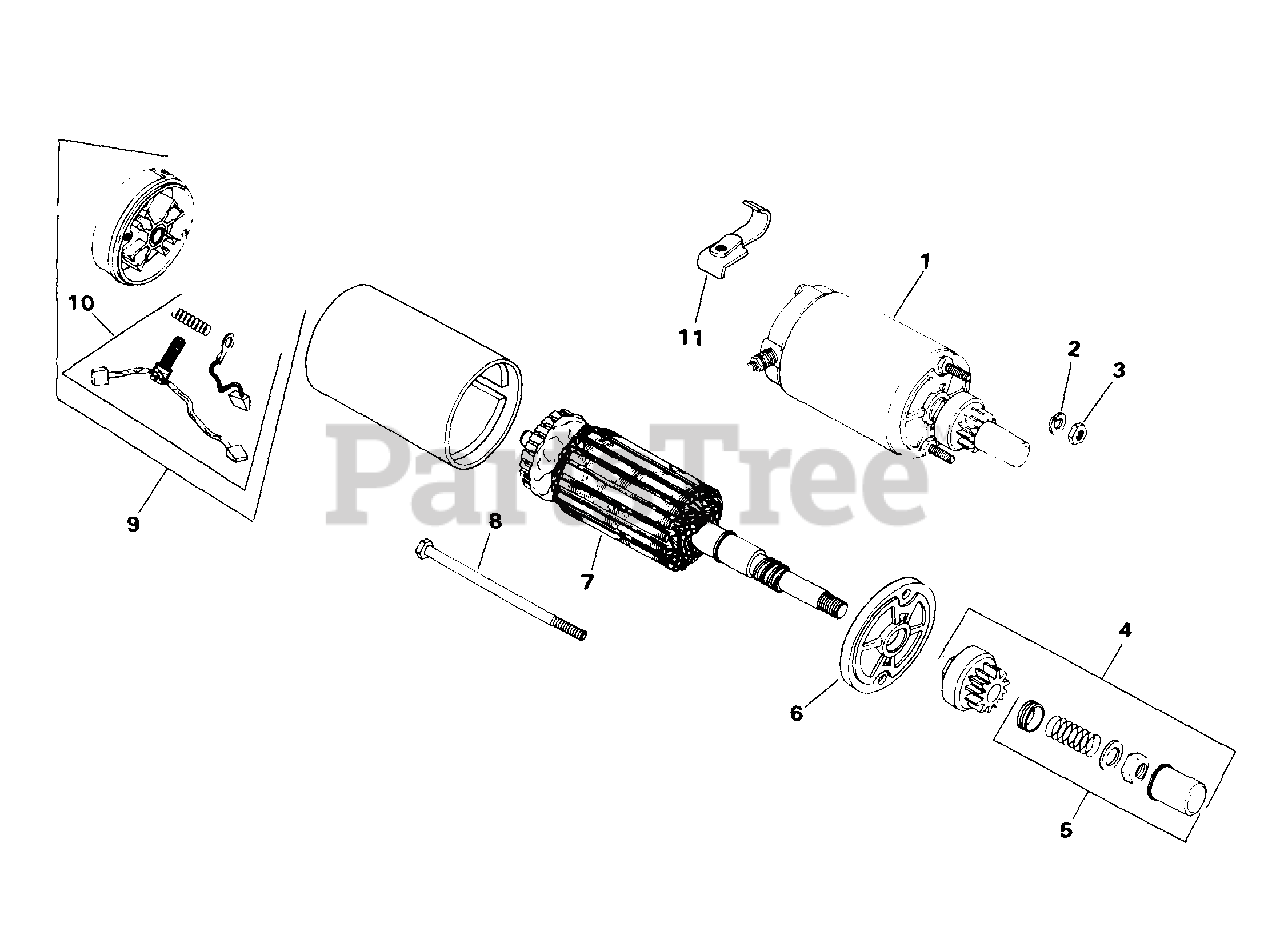

M18-24511 - Kohler Magnum Engine, Made for Simplicity, 18hp, 13.4kW Electric Start 11-15-9 (TP-2233-C) Parts Diagram

Magnum Engine, Made for Simplicity, 18hp, 13.4kW

Electric Start 11-15-9 (TP-2233-C) Parts Diagram

  • Title

1

Kohler 52 098 03

STARTER - USE 52 098 12
(Superseded to 52 098 12)

Note: Includes 4-10

$500.99

$

Usually ships in 2-5 days

0

2

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 2 left!

0

3

Kohler X-81-1-S

NUT, 1/4-20 GRADE 2 USE 25 100 20-S
(Superseded to 25 100 20-S)

$4.49

$

In Stock, only 1 left!

0

4

Kohler 52 755 05

DRIVE KIT - USE 82 755 32
(Superseded to 82 755 32)

Note: Includes 5

$

$

Not available

5

Kohler 52 755 08

DRIVE - USE 82 755 32
(Superseded to 82 755 32)

$

$

Not available

6

Kohler 52 227 01

KIT - USE 82 755 32
(Superseded to 82 755 32)

$

$

Not available

7

Kohler 52 170 02-S

ARMATURE - (#DSC)

$

$

Not available

8

Kohler 52 211 01-S

BOLT

$35.99

$

In Stock, only 2 left!

0

9

Kohler 277612

CAP - USE 52 227 10
(Superseded to 52 227 10-S)

Note: Includes 10

$342.99

$

Usually ships in 2-5 days

0

10

Kohler 48 755 15

KIT - USE 52 755 15
(Superseded to 52 755 15)

Note: Replaced by 52 755 15

$

$

Not available

2545003-S

Kohler 25 450 03-S

TAG, CAUTION

$1.49

$

Usually ships in 2-5 days

0

5235701-S

Kohler 52 357 01-S

Lubricant, Inertia Drive Starter (0.25 oz.)

$

$

Not available
