M18-24553 - Kohler Magnum Engine, Made for Edco, 18hp, 13.4kW Instrument Panel (TP-2233-C) Rev 10/30/2006 Parts Diagram

Magnum Engine, Made for Edco, 18hp, 13.4kW

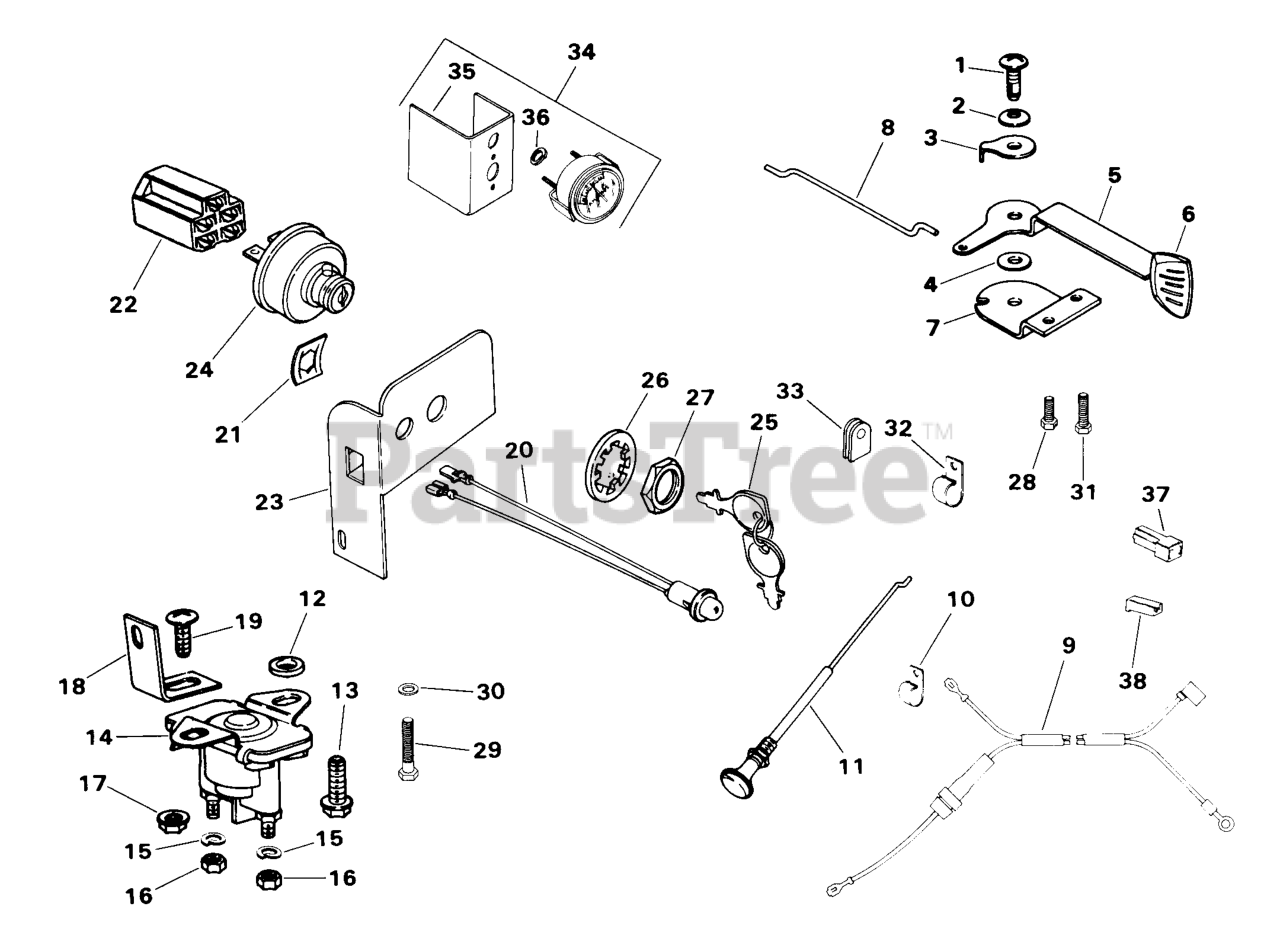

Instrument Panel (TP-2233-C) Rev 10/30/2006 Parts Diagram

  • Title

9

Kohler 52 176 04-S

HARNESS, WIRING - DISCONTINUED

$

$

Not available

10

Kohler 234511-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

12

Kohler X-25-95-S

WASHER

$4.49

$

Usually ships in 2-5 days

0

13

Kohler X-67-62-S

SCREW, WSH HD TAP 1/4-20X3/4" USE 25 086 100-S
(Superseded to 25 086 100-S)

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 25 435 01

SOLENOID - USE 25 435 02
(Superseded to 25 435 02)

$75.99

$

In Stock, Qty 6

0

15

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

Usually ships in 2-5 days

0

16

Kohler X-81-1-S

NUT, 1/4-20 GRADE 2 USE 25 100 20-S
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0

17

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

18

Kohler 52 126 06-S

BRACKET - DISCONTINUED

$

$

Not available

19

Kohler 52 086 10-S

SCREW

$

$

Not available

20

Kohler 25 352 01-S

LIGHT

$57.99

$

Usually ships in 2-5 days

0

21

Kohler 25 100 03-S

NUT

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

24

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: Includes 25-27

$63.99

$

In Stock, only 1 left!

0

25

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.49

$

Usually ships in 2-5 days

0

26

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

27

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

37

Kohler 25 155 03-S

CONNECTOR

$4.49

$

Usually ships in 2-5 days

0

38

Kohler 25 155 04-S

CONNECTOR

$4.49

$

Usually ships in 2-5 days

0

5211329-S

Kohler 52 113 29-S

DECAL, IGNITION - DISCONTINUED

Note: (Not Illustrated)

$

$

Not available

X-468-1-S

Kohler X-468-1-S

TIE, WIRE USE 25 454 03-S
(Superseded to 25 454 03-S)

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-5 days

0

5251803-S

Kohler 52 518 03-S

LEAD

Note: (Not Illustrated)

$

$

Not available

5251816-S

Kohler 52 518 16-S

LEAD - (#DSC)

Note: (Not Illustrated)

$

$

Not available
