M60-KH (53CB5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Kohler CV740-0039 Head Valve Breather Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

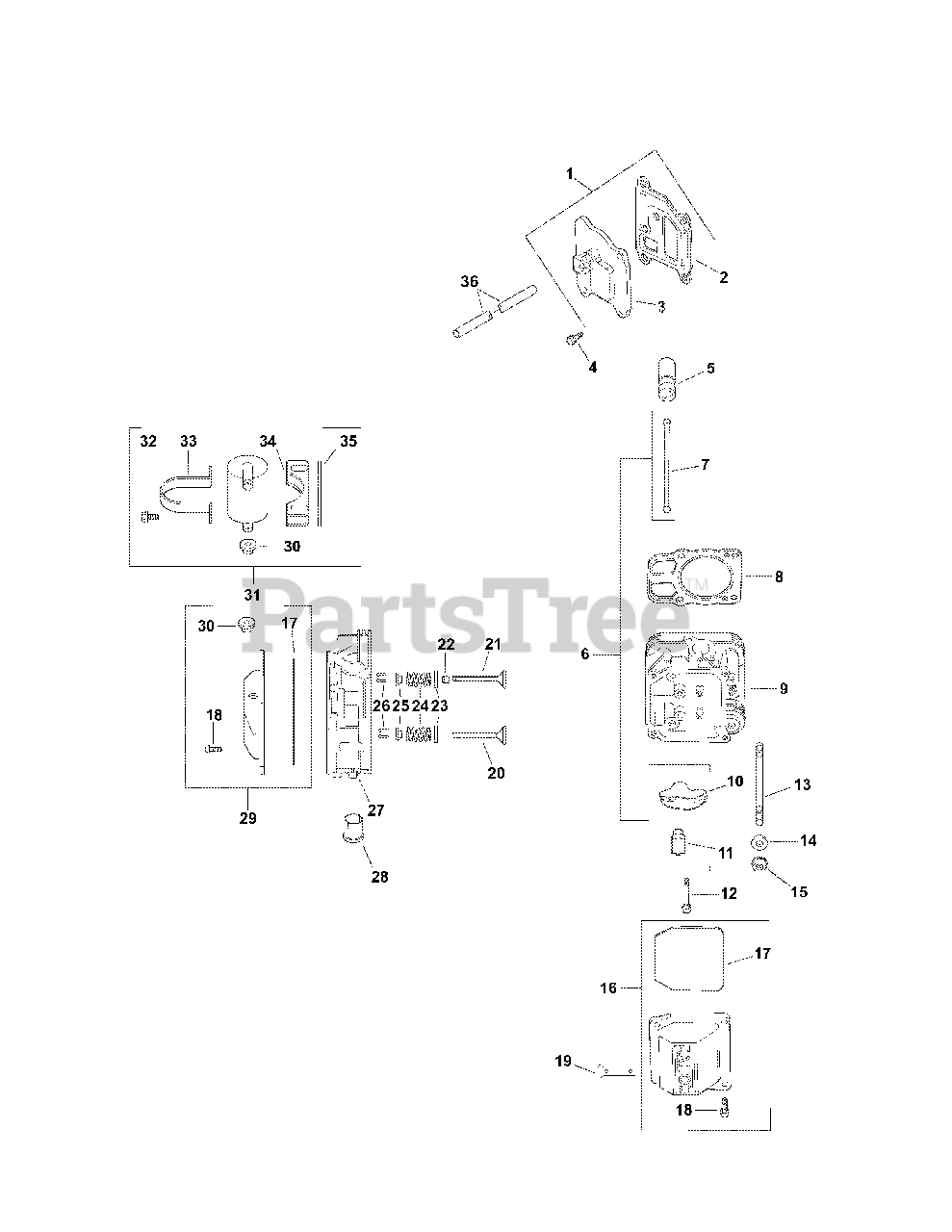

Kohler CV740-0039 Head Valve Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Breather assy, cover w/gasket (Includes 2,3)

$

$

Not available

2

Cub Cadet KH-24-041-51-S

Gasket, breather
(Superseded to KH-24-041-67-S)

$12.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-24-096-87-S

Cover, breather
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Screw, flg thd frm M6x1.0x20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-25-351-04-S

Lifter, hydraulic valve
(Superseded to KH-25-351-11-S)

$22.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-755-66

Kit, valve train (Includes 7,10,11)

$

$

Not available

7

Cub Cadet KH-24-411-05

Rod, push

$

$

Not available

8

Cub Cadet KH-24-841-03-S

Kit, cylinder head gasket (Includes head mtg hdwe)
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-24-318-72-S

Head assembly, #2 cylinder
(Superseded to KH-24-318-116-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

Arm, rocker

$

$

Not available

11

Cub Cadet KH-24-599-01

Pivot, rocker arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 10

0

12

KH-M-640-034

Screw, flg M6x1.0x34

$

$

Not available

13

Cub Cadet KH-24-072-09-S

Stud, M8x1.25, M10x1.5, 105mm

$5.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-468-16-S

Washer, flat 8.6 mm

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-100-10-S

Nut, flg M8x1.25

$4.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-755-141-S

Kit, valve cover-plain (Includes 17,18)

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-153-28-S

O-Ring
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-M-651030-S

Screw , flg M6x1.0x30

$2.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-445-01

Strap, lifting
(Superseded to KH-25-445-03-S)

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet KH-24-016-01

Valve, exhaust (Std.)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 15

0

20

Cub Cadet KH-24-016-02

Valve, exhaust (.25)

$

$

Not available

21

Cub Cadet KH-24-017-01

Valve, intake (Std.)

$

$

Not available

21

Cub Cadet KH-24-017-02

Valve, intake (.25)

$

$

Not available

22

Cub Cadet KH-66-032-05-S

Seal, valve stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

23

Cub Cadet KH-235011-S

Retainer, spring

$6.49

$

In Stock, Qty 14

0

24

Cub Cadet KH-24-089-02-S

Spring, valve

$

$

Currently unavailable

25

Cub Cadet KH-12-173-01

Retainer, valve spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 7

0

26

Cub Cadet KH-12-755-03

Kit, retainer

$5.99

$

In Stock, Qty 8

0

27

Cub Cadet KH-24-318-69-S

Head assembly, #1 cylinder
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-24-605-01-S

Liner, exhaust port
(Superseded to KH-24-605-07-S)

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-24-755-142-S

Kit, rocker cover (separator) (Includes 17,18,30)

$38.99

$

In Stock, Qty 6

0

30

Cub Cadet KH-25-313-03-S

Grommet, rubber

$10.99

$

In Stock, Qty 11

0

31

Cub Cadet KH-24-755-57-S

Kit, breather separator (Includes 30,32-35)
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 5

0

32

Cub Cadet KH-M-545016-S

Screw, flg thd frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

33

Cub Cadet KH-24-445-02

Strap, breather
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 5

0

34

Cub Cadet KH-24-126-44

Bracket, breather separator

$

$

Not available

35

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

36

Cub Cadet KH-24-326-54-S

Hose, breather
(Superseded to KH-24-326-63-S)

$2.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-755-147-S

Kit, cylinder head hardware (Includes 7,10-12,20-26)

Note: (Not Illustrated)

$96.99

$

In Stock, Qty 6

0
