M8-301502 - Kohler Magnum Engine, Basic Version, 8hp, 6kW Instrument Panel 19-2-56 TP-2201-C Parts Diagram

Magnum Engine, Basic Version, 8hp, 6kW

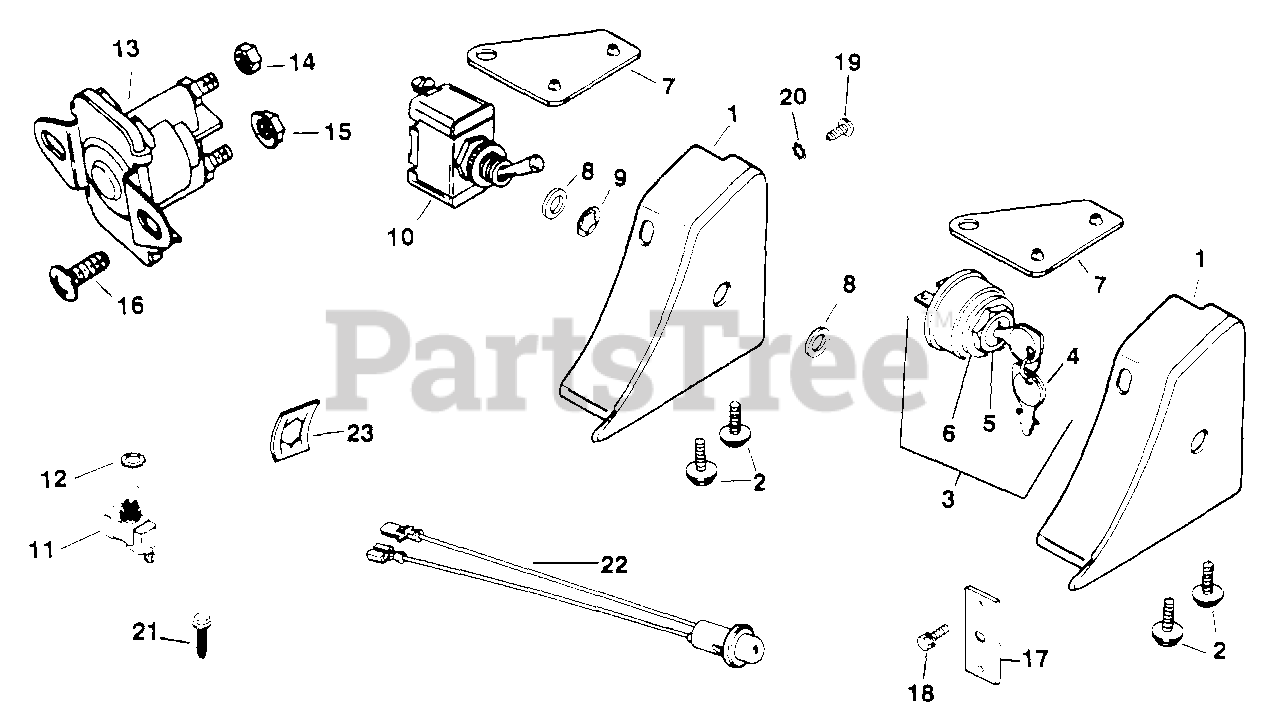

Instrument Panel 19-2-56 TP-2201-C Parts Diagram

  • Title

1

Kohler 41 178 04-S

PANEL

$66.99

$

Usually ships in 2-5 days

0

2

Kohler X-806-1-S

SCREW

$3.49

$

In Stock, only 3 left!

0

3

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: Includes 4,5,6

$63.99

$

Usually ships in 2-5 days

0

4

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

6

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 41 126 27-S

BRACKET

$25.99

$

Usually ships in 2-5 days

0

13

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$75.99

$

In Stock, Qty 6

0

19

Kohler 52 086 11-S

SCREW, WSH HD TAP 1/4-20-5/8" - DISCONTINUED

$

$

Not available

20

Kohler X-22-12-S

WASHER,INT EXT TOOTH LOCK 1/4"

$3.99

$

Usually ships in 2-5 days

0

4151831-S

Kohler 41 518 31-S

LEAD

Note: 5" - 18 gauge - insulated barrel eyelet and uninsulated push on tab terminals. Not Illustrated.

$20.99

$

Usually ships in 2-5 days

0

4111312-S

Kohler 41 113 12-S

DECAL, IGNITION

Note: Not Illustrated.

$21.99

$

Usually ships in 2-5 days

0
