MZ - Bad Boy Zero-Turn Mower (2016) Gas Tank and Control Panel Parts Diagram

Zero-Turn Mower

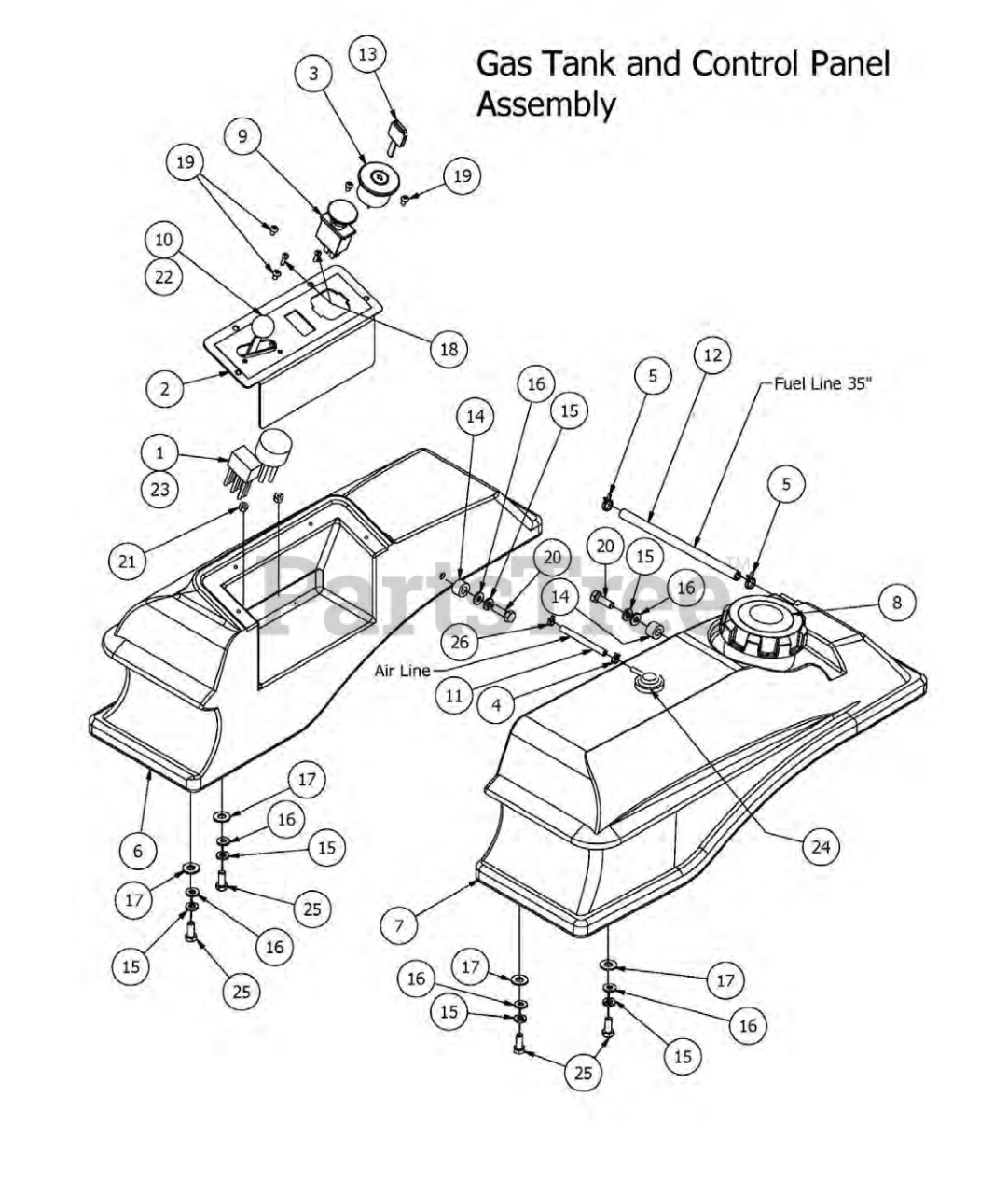

Gas Tank and Control Panel Parts Diagram

  • Title

1

Bad Boy 086-0075-00

Wiring harness

$443.99

$

Usually ships in 4-7 days

0

2

Bad Boy 079-0050-00

MZ Control Panel

$30.99

$

Usually ships in 0 days

0

3

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

4

Bad Boy 072-8072-00

1/4" Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 067-2001-00

Fender Console

$227.99

$

Usually ships in 4-7 days

0

7

Bad Boy 067-2000-50

3 Gallon Fuel Tank/MZ/2012 EPA

$314.99

$

Usually ships in 4-7 days

0

8

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

9

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

10

Bad Boy 055-3000-00

Throttle Lever Kohler Only

$28.99

$

Usually ships in 4-7 days

0

11

Bad Boy 051-2027-00

3/16" clear viynl tubing

$1.49

$

Usually ships in 4-7 days

0

12

Bad Boy 051-8067-00

1/4" fuel line hose sold by the Foot

$6.99

$

In Stock, only 3 left!

0

13

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

14

Bad Boy 025-2025-00

Tank spacer

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

17

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

18

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

19

Bad Boy 018-2010-00

10-32 x 3/8" Button Socket Head Bolt

$0.99

$

In Stock, only 4 left!

0

20

Bad Boy 018-2006-00

5/16" x 1 1/4" Bolt

$0.99

$

In Stock, Qty 5

0

21

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 055-3021-00

Throttle-21Hp MZ Only

$51.99

$

Usually ships in 4-7 days

0

23

Bad Boy 086-1201-00

Relay Terminal

$26.99

$

In Stock, Qty 7

0

24

Bad Boy 067-6052-00

Rollover Valve-White

$

$

Not available

25

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0
