MZ - Bad Boy Zero-Turn Mower (2016) Seat Assembly Parts Diagram

Zero-Turn Mower

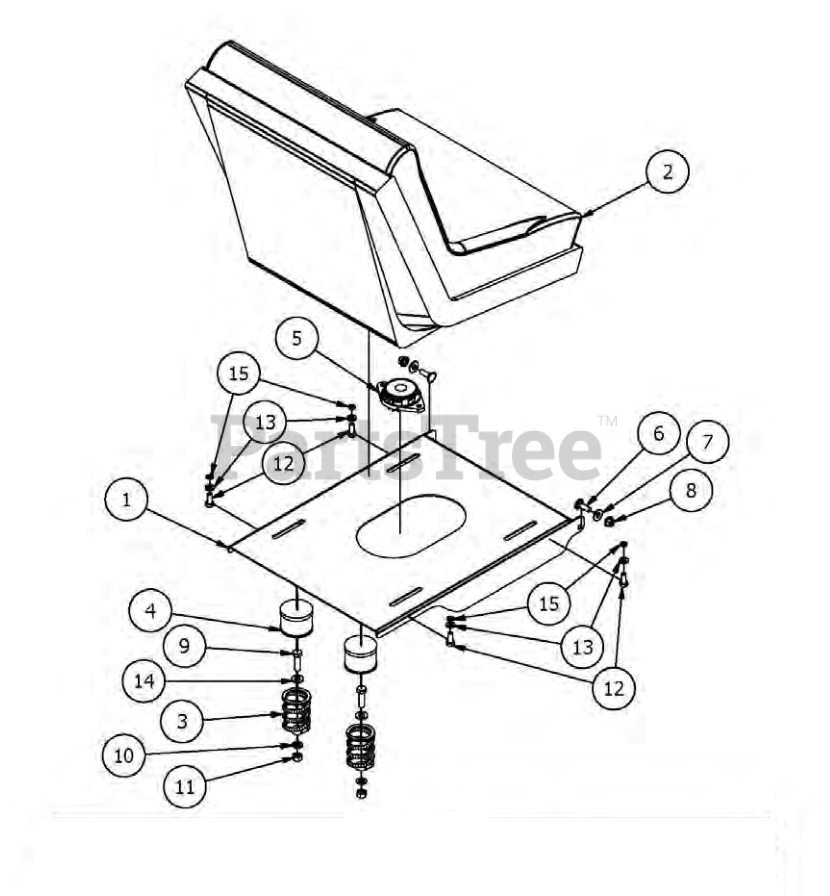

Seat Assembly Parts Diagram

  • Title

1

Bad Boy 026-2010-00

MZ Seat Plate

$105.99

$

Usually ships in 4-7 days

0

2

Bad Boy 071-9001-00

Black Seat
(Superseded to 071-9002-00)

$307.99

$

Usually ships in 4-7 days

0

3

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, Qty 5

0

4

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, Qty 10

0

5

Bad Boy 071-8062-00

Seat Saftey Switch

$22.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-8065-00

5/16-18 x 1 Carriage Bolts Zinc

$0.99

$

In Stock, Qty 20+

0

7

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 013-8049-00

5/16" Nylock Flange Nut

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 10

0

10

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, Qty 20+

0

12

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 20+

0

15

Bad Boy 019-7040-00

1/4 Flat Washer

$0.99

$

Usually ships in 4-7 days

0
