MZ - Bad Boy Zero-Turn Mower (2016) Steering Arm Assembly Parts Diagram

Zero-Turn Mower

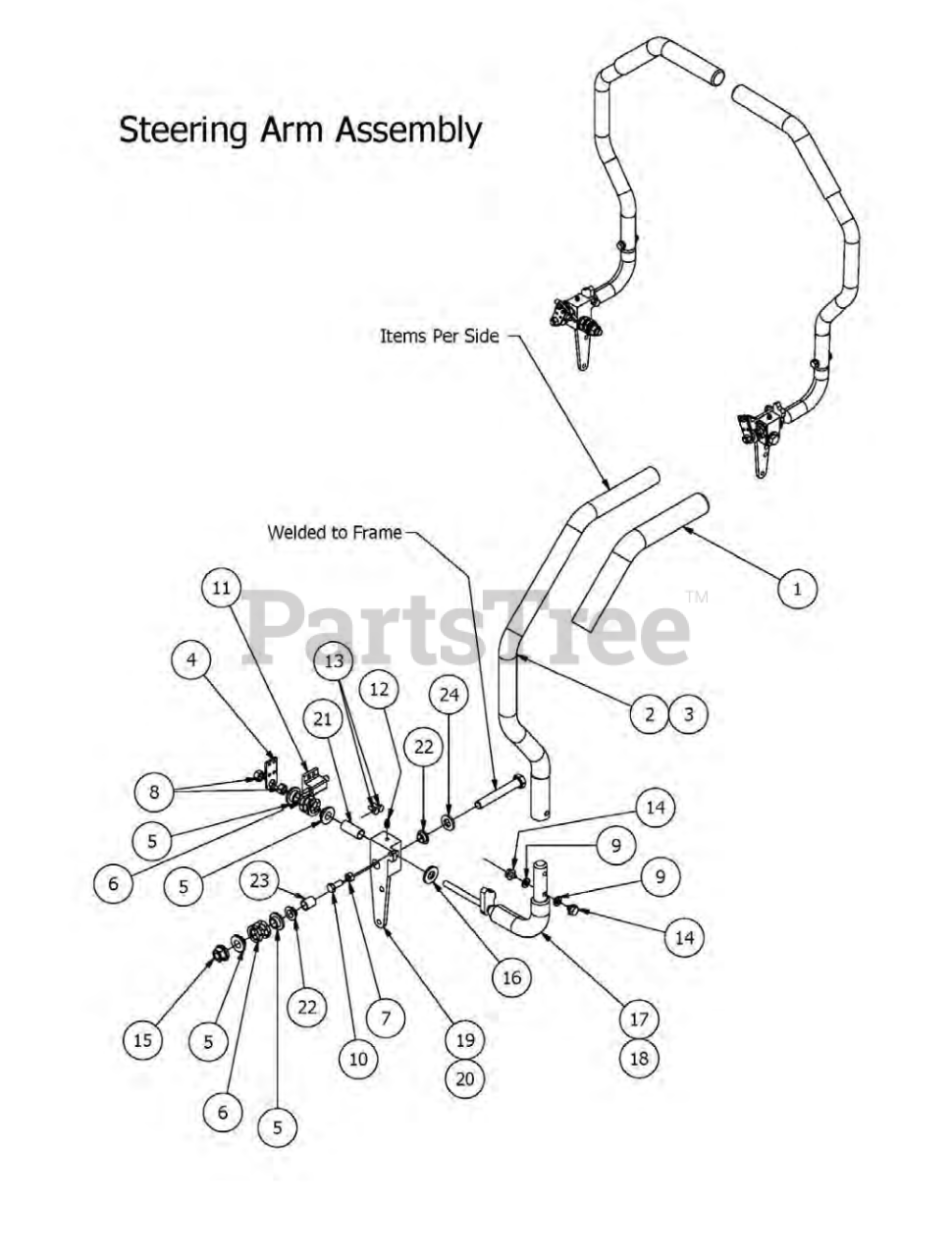

Steering Arm Assembly Parts Diagram

  • Title

1

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

2

Bad Boy 031-8821-00

Left Direction Steering Arm

$

$

Not available

3

Bad Boy 031-8822-00

Right Direction Steering Arm

$

$

Not available

4

Bad Boy 039-1125-00

MZ Switch Bracket

$5.49

$

Usually ships in 4-7 days

0

5

Bad Boy 019-8027-00

515 ID Nylon Shoulder Washer

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

7

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 018-4010-00

1/2" 13 Nylon Insert Jam Locknut

$1.99

$

In Stock, Qty 8

0

9

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 13

0

12

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-2020-00

5/16-18 1/2 HWH Bolt-Steering

$1.99

$

In Stock, only 3 left!

0

15

Bad Boy 013-0010-00

1/2-13 Mechanical Lock Nut Grade F

$1.49

$

In Stock, only 3 left!

0

16

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

17

Bad Boy 031-9025-70

Black Steering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

18

Bad Boy 031-9020-70

Black Steering Arm Elbow (Left)

$90.99

$

In Stock, only 2 left!

0

19

Bad Boy 027-9000-00

Left Drive Arm Lever Housing

$45.99

$

Usually ships in 4-7 days

0

20

Bad Boy 027-9001-00

Right Drive Arm Lever Housing

$45.99

$

Usually ships in 4-7 days

0

21

Bad Boy 032-1020-00

Drive Arm Block Insert-long

$6.99

$

Usually ships in 4-7 days

0

22

Bad Boy 032-5055-00

Bushing for 2012 Drive Arms

$6.99

$

Usually ships in 4-7 days

0

23

Bad Boy 032-1010-00

Drive Arm Block Insert-short

$6.49

$

Usually ships in 4-7 days

0

24

Bad Boy 019-7000-00

505x1x,125 Oil Impregnated washer

$5.49

$

Usually ships in 4-7 days

0
