Outlaw XP - Bad Boy Zero-Turn Mower (2013) Fuel Tanks & Control Panel Assemblies Parts Diagram

Zero-Turn Mower

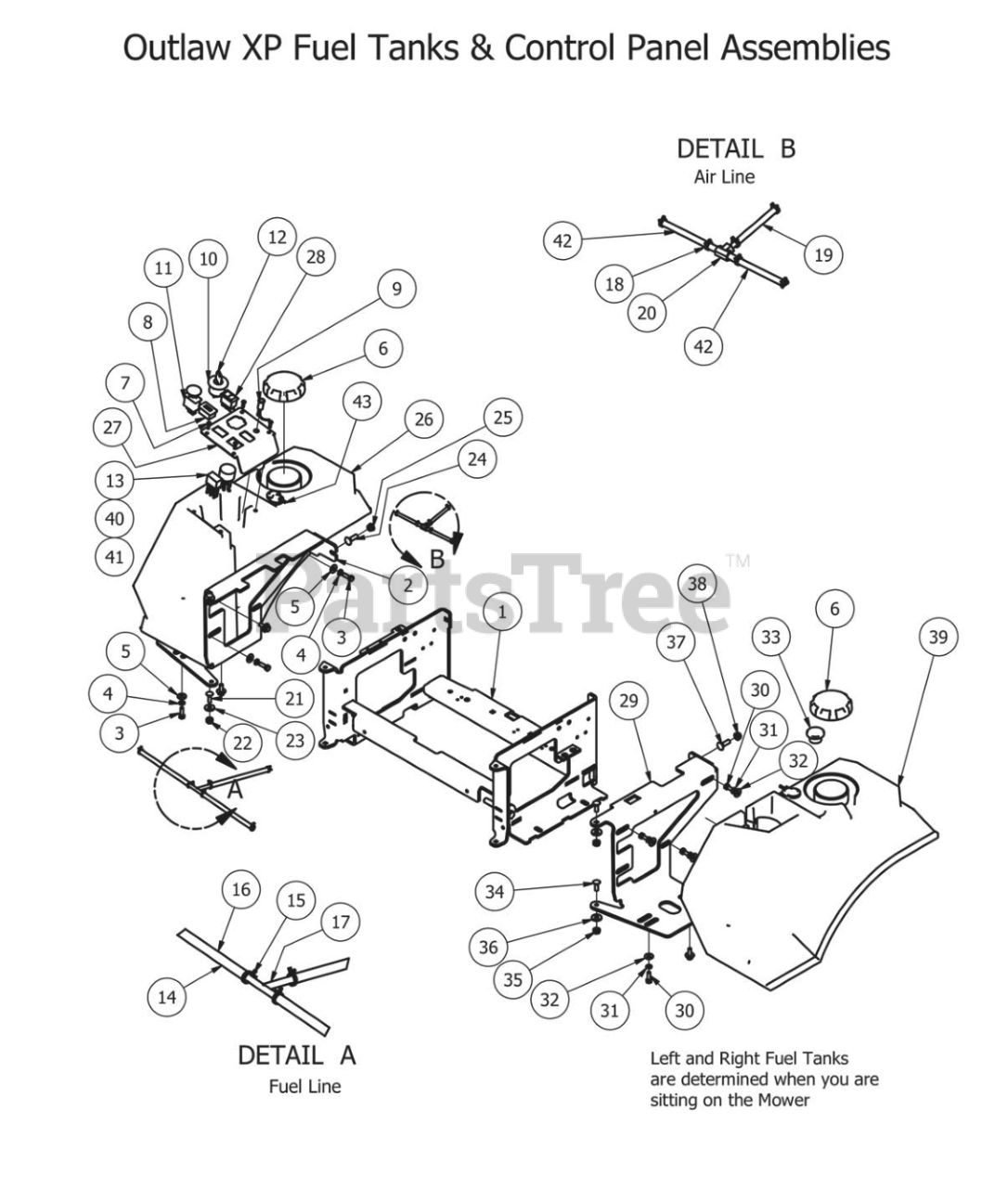

Fuel Tanks & Control Panel Assemblies Parts Diagram

  • Title

1

Bad Boy 080-5000-00

Outlaw Seat Bracket 2012

$

$

Not available

2

Bad Boy 031-2030-00

Outlaw Tank Support 2012 (Right)

$83.99

$

Usually ships in 0 days

0

3

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

6

Bad Boy 066-8083-00

3.5" Tethered Fuel Cap

$25.99

$

In Stock, only 3 left!

0

7

Bad Boy 018-2010-00

10-32 x 3/8" Button Socket Head Bolt

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

9

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

10

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

11

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

12

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

13

Bad Boy 086-0045-00

Wiring Harness- FX-850V kawasaki Outlaw

$569.99

$

Usually ships in 4-7 days

0

14

Bad Boy 051-7070-00

Fuel line Assembly -31 Outlaw

$56.99

$

Usually ships in 4-7 days

0

15

Bad Boy 072-8069-00

1/4 fuel clamp

$1.49

$

In Stock, only 2 left!

0

16

Bad Boy 051-8067-00

1/4" fuel line hose

$6.99

$

In Stock, only 3 left!

0

17

Bad Boy 073-8068-00

fuel line T

$10.99

$

Usually ships in 4-7 days

0

18

Bad Boy 072-8070-00

3/16 vinyl clamp

$1.99

$

Usually ships in 4-7 days

0

19

Bad Boy 051-8073-00

3/16 vinyl tubing

$3.49

$

In Stock, only 2 left!

0

20

Bad Boy 073-2000-00

Brass fuel line T

$10.99

$

Usually ships in 4-7 days

0

21

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

24

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

25

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

26

Bad Boy 067-8001-50

2012 EPA Fuel Tank - XP-XTRM - Right

$364.99

$

Usually ships in 4-7 days

0

27

Bad Boy 079-3350-00

Outlaw Control Panel (Rocker Switch)

$33.99

$

Usually ships in 0 days

0

28

Bad Boy 078-3000-00

Rocker Deck Lift Switch - 2011

$39.99

$

In Stock, Qty 5

0

29

Bad Boy 031-2031-00

Tank Support 2012 Outlaw (Left)

$83.99

$

Usually ships in 0 days

0

30

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

32

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

33

Bad Boy 067-4050-00

Fuel Gauge-Tanks w/downtube

$49.99

$

Usually ships in 4-7 days

0

34

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 2 left!

0

35

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

36

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

37

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

38

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

39

Bad Boy 067-8000-50

2012 EPA Fuel Tank- XP-XTRM- Left

$397.99

$

Usually ships in 4-7 days

0

40

Bad Boy 086-0032-00

Wiring Harness 36hp Vanguard Outlaw

$376.99

$

Usually ships in 4-7 days

0

41

Bad Boy 086-1201-00

Relay Terminal

$26.99

$

In Stock, Qty 7

0

42

Bad Boy 051-8072-00

1/4" Vinyl Tubing - Black

$3.49

$

In Stock, Qty 6

0

43

Bad Boy 067-6052-00

Rollover Valve-White

$

$

Not available
