PCH740-3034 - Kohler Command PRO EFI Propane Engine, Made for CPT, 25hp, 18.6kW 02 CrankCase Parts Diagram

Command PRO EFI Propane Engine, Made for CPT, 25hp, 18.6kW

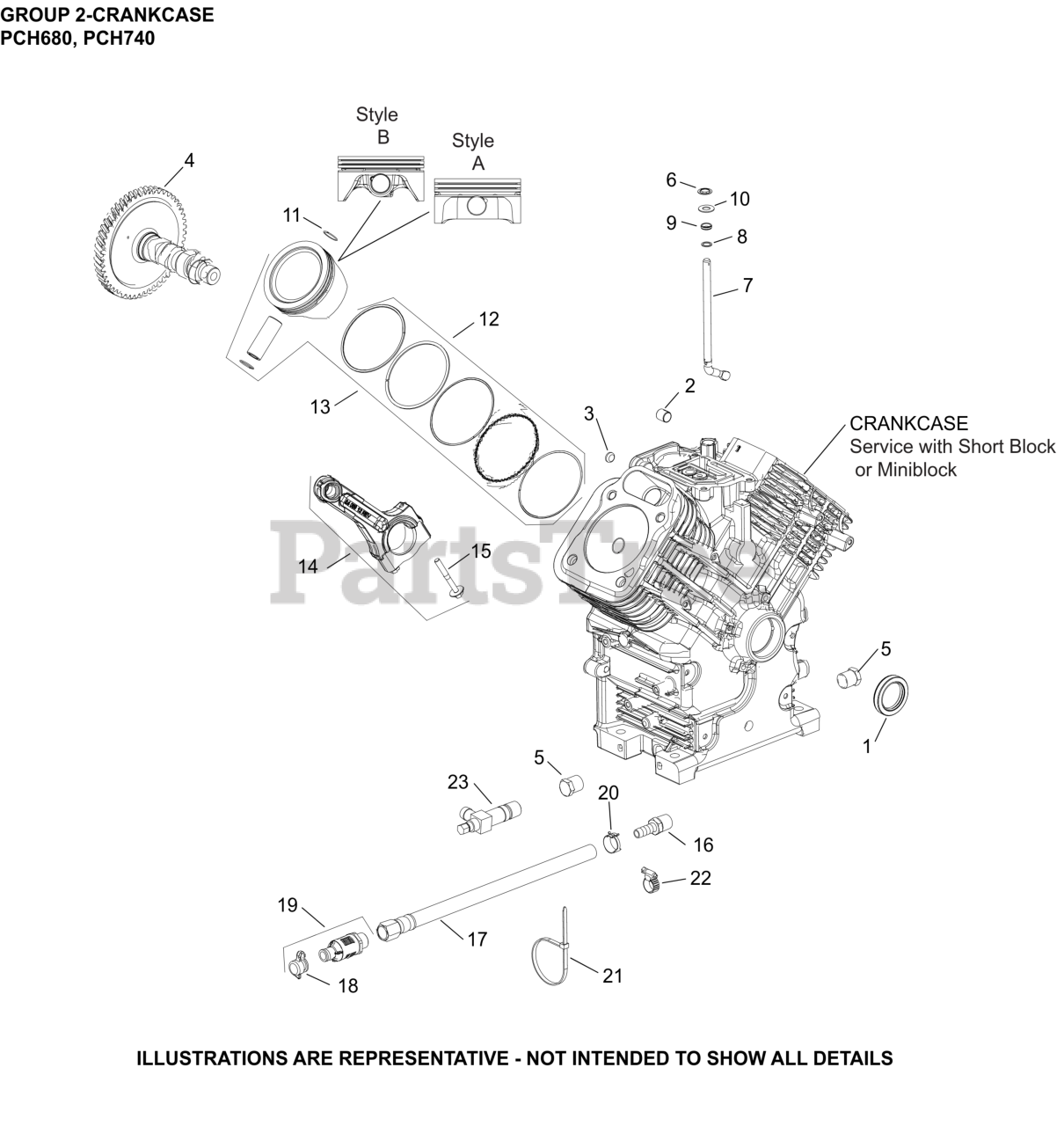

02 CrankCase Parts Diagram

  • Title

1

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

2

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 7

0

3

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 10

0

4

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

5

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

6

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

8

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 1 left!

0

9

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 10

0

10

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 8

0

11

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

12

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$94.99

$

In Stock, only 4 left!

0

12

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm RING THICK

$39.99

$

Usually ships in 2-5 days

0

12

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$39.99

$

Usually ships in 2-5 days

0

12

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$154.99

$

Usually ships in 2-5 days

0

13

Kohler 25 874 14-S

KIT,PSTN/RNG STYLE B(STD)

$188.99

$

In Stock, Qty 20+

0

13

Kohler 25 874 18-S

KIT,PSTN/RNG STYLE B(.08)

$222.99

$

Usually ships in 2-5 days

0

13

Kohler 25 874 19-S

KIT,PSTN/RNG STYLE B(.25)

$271.99

$

Usually ships in 2-5 days

0

13

Kohler 25 874 20-S

KIT,PSTN/RNG STYLE B(.50)

$268.99

$

Usually ships in 2-5 days

0

14

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$83.99

$

In Stock, Qty 20+

0

15

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, Qty 9

0

NI

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$58.99

$

Usually ships in 2-5 days

0
