PCH740-3034 - Kohler Command PRO EFI Propane Engine, Made for CPT, 25hp, 18.6kW 03 Lubrication Parts Diagram

Command PRO EFI Propane Engine, Made for CPT, 25hp, 18.6kW

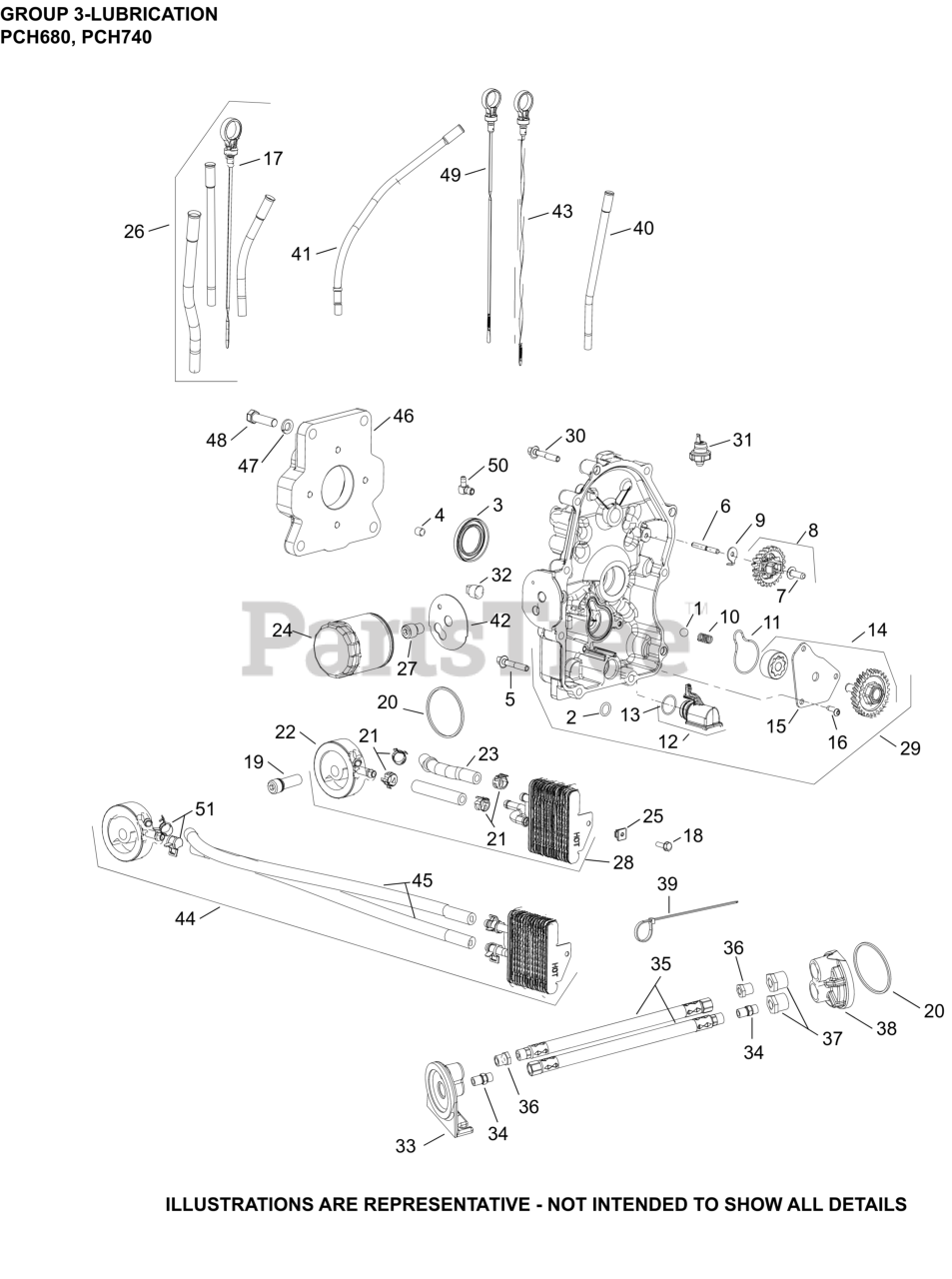

03 Lubrication Parts Diagram

  • Title

1

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$3.49

$

In Stock, only 2 left!

0

2

Kohler 24 153 08-S

O-RING

$8.99

$

In Stock, Qty 20+

0

3

Kohler 25 032 06-S

OIL SEAL

$13.99

$

In Stock, Qty 20+

0

4

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 1 left!

0

5

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

6

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$6.49

$

In Stock, Qty 13

0

7

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$76.99

$

In Stock, Qty 8

0

9

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

10

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 3 left!

0

11

Kohler 24 153 33-S

SEAL, OIL PUMP COVER

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 24 381 13-S

PICK-UP ASSEMBLY, OIL

$7.49

$

In Stock, only 1 left!

0

13

Kohler 24 153 34-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 393 70-S

PUMP ASSEMBLY, OIL

$41.99

$

In Stock, only 2 left!

0

15

Kohler 24 096 151-S

COVER, OIL PUMP

$2.49

$

In Stock, only 2 left!

0

16

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

$2.49

$

In Stock, only 1 left!

0

17

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 11

0

18

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

19

Kohler 24 136 05-S

NIPPLE, OIL FILTER - (#2413608S)
(Superseded to 24 136 10-S)

$13.99

$

In Stock, only 2 left!

0

20

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 20+

0

21

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

$4.99

$

In Stock, only 1 left!

0

22

Kohler 24 029 81-S

ADAPTER, OIL FILTER (CH EFI)

$

$

Not available

23

Kohler 24 326 129-S

HOSE, OIL COOLER

$42.99

$

In Stock, only 4 left!

0

24

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

25

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 2 left!

0

26

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$45.99

$

In Stock, only 4 left!

0

28

Kohler 24 594 55-S

COOLER, OIL ASSEMBLY

$

$

Not available

29

Kohler 24 009 242-S

KIT, CLOSURE PLATE ASSY

$417.99

$

Usually ships in 2-5 days

0

30

Kohler 25 086 317-S

SCREW, HEX FLANGE

$2.99

$

In Stock, Qty 20+

0
