PCH740-3034 - Kohler Command PRO EFI Propane Engine, Made for CPT, 25hp, 18.6kW 05 Ignition/Charging Parts Diagram

Command PRO EFI Propane Engine, Made for CPT, 25hp, 18.6kW

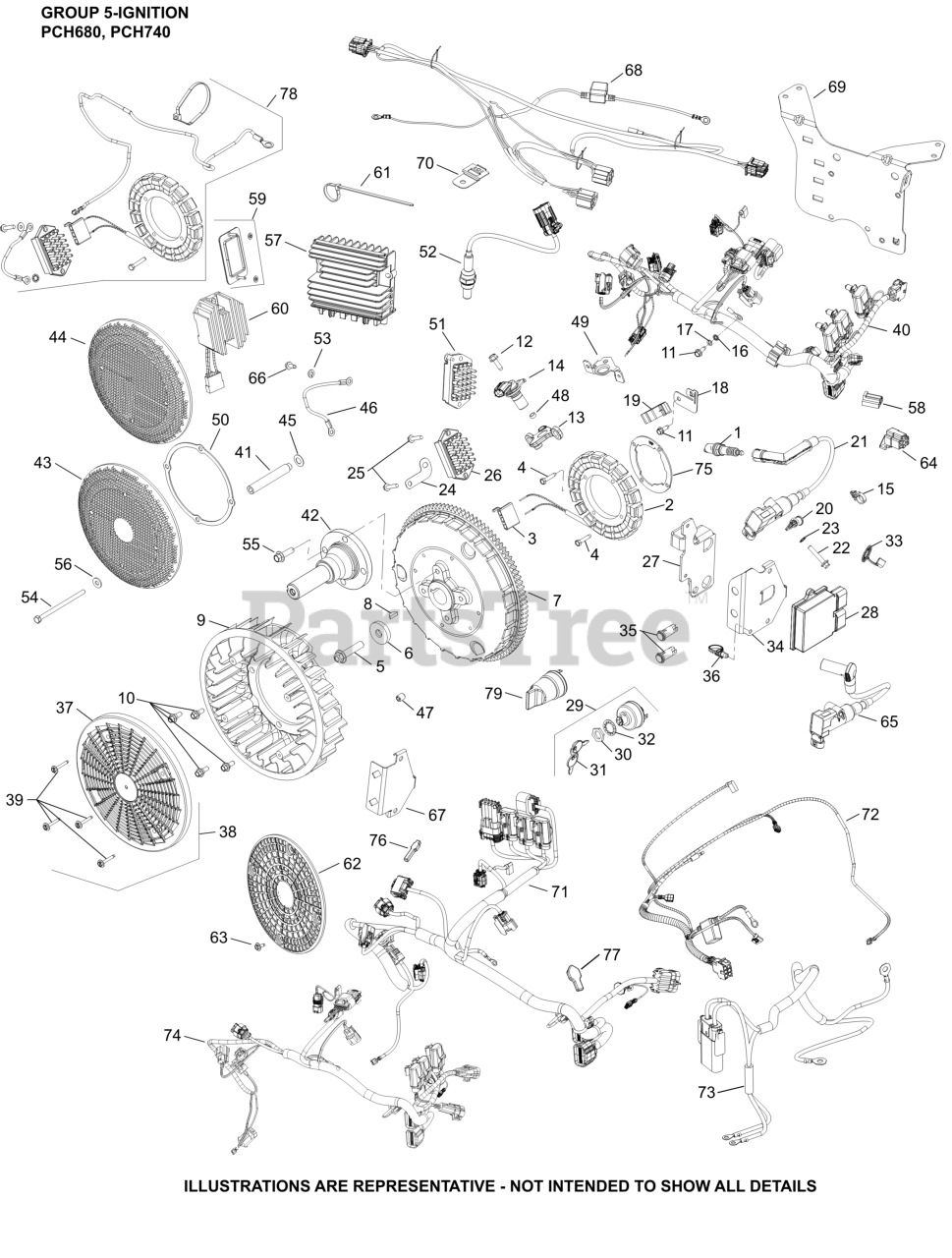

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 25 132 14-S

SPARK PLUG, RFI

$15.99

$

Usually ships in 2-5 days

0

2

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 14

0

3

Kohler 25 155 41-S

CONNECTOR

$31.99

$

In Stock, only 2 left!

0

4

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.99

$

In Stock, only 2 left!

0

5

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

6

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

7

Kohler 24 025 100-S

FLYWHEEL, ASSEMBLY

$235.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

9

Kohler 24 157 11-S

FAN-USE 24 755 253-S
(Superseded to 24 755 253-S)

$50.99

$

In Stock, only 3 left!

0

10

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Kohler 25 086 398-S

SCREW, THREAD FORMING

$4.49

$

In Stock, only 2 left!

0

14

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 2 left!

0

15

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

16

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

21

Kohler 25 519 04-S

COIL, IGNITION - EFI (RFI/EMC)

$215.99

$

In Stock, only 3 left!

0

22

Kohler M-640034-S

SCREW, FLG (BLACK) M6X1.0X34

$2.49

$

Usually ships in 2-5 days

0

23

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

25

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

27

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

31

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.99

$

In Stock, only 2 left!

0

33

Kohler 24 173 08-S

CAP, CONNECTOR

$8.99

$

Usually ships in 2-5 days

0

34

Kohler 24 126 204-S

BRACKET, WARNING LIGHT

$25.99

$

Usually ships in 2-5 days

0

36

Kohler 25 454 09-S

TIE, WIRE

$2.49

$

In Stock, only 2 left!

0

37

Kohler 24 162 44-S

SCREEN, GRASS

$16.99

$

In Stock, only 1 left!

0

38

Kohler 54 755 15-S

KIT GRASS SCREEN

$41.99

$

In Stock, only 2 left!

0

39

Kohler 25 086 117-S

SCREW, FLG SEMS M4x.7x25

$3.49

$

In Stock, only 4 left!

0

40

Kohler 24 176 264-S

HARNESS, WIRING ASSEMBLY

$351.99

$

Usually ships in 2-5 days

0

46

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

48

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

49

Kohler 25 126 18-S

BRACKET, SENSOR

$5.49

$

In Stock, only 1 left!

0

51

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$87.99

$

In Stock, only 4 left!

0

66

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

NI

Kohler 24 584 219-S

MODULE, ECU PCH740

$295.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 099 30-S

KIT, KEY SWITCH (SNAP-IN)

$36.99

$

In Stock, only 1 left!

0

NI

Kohler 25 237 35-S

CLAMP, INSULATED

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 352 27-S

LIGHT, INDICATOR

$21.99

$

Usually ships in 2-5 days

0

NI

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0
