PCV740-3023 - Kohler Command PRO EFI Propane Engine, Made for Superabrasive, 24hp, 17.0kW 02 CrankCase Parts Diagram

Command PRO EFI Propane Engine, Made for Superabrasive, 24hp, 17.0kW

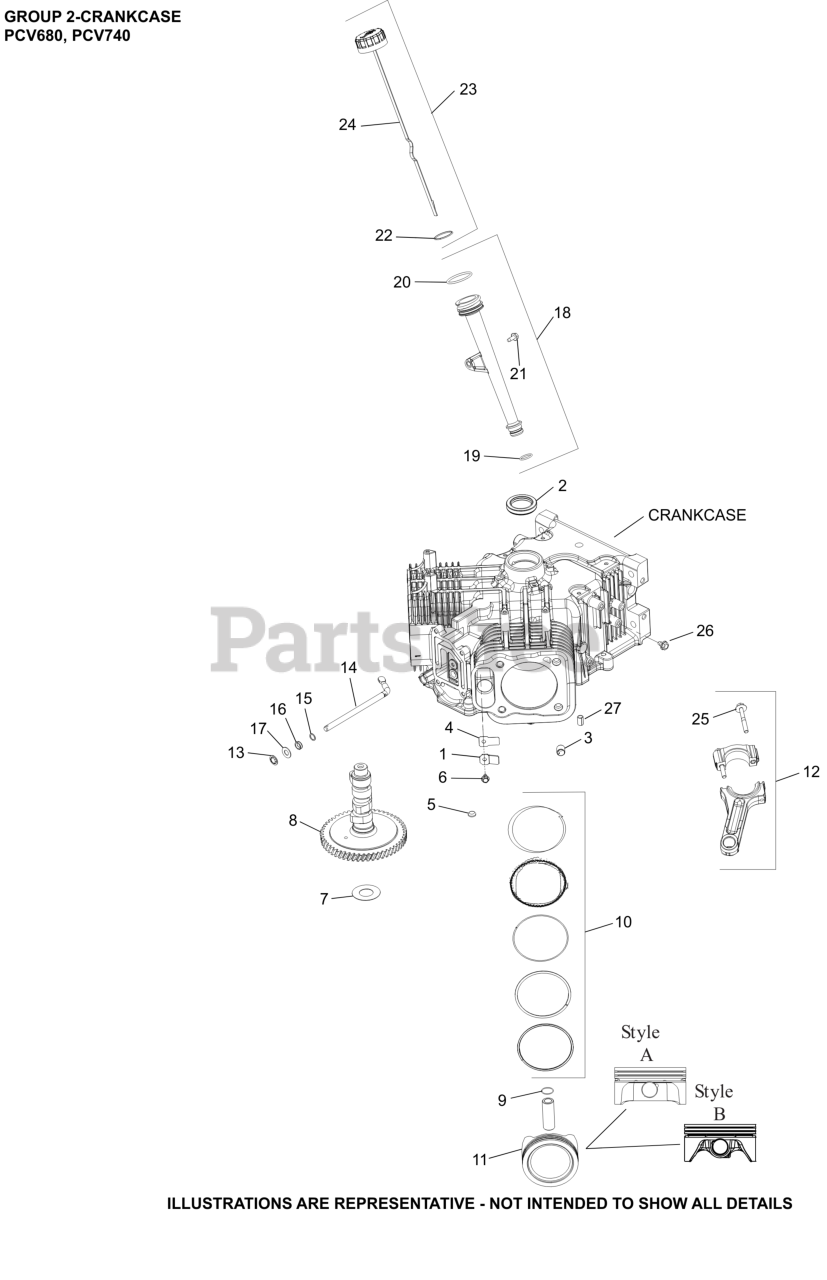

02 CrankCase Parts Diagram

  • Title

1

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, Qty 20+

0

2

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

3

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

4

Kohler 24 402 07-S

REED, BREATHER

$3.99

$

In Stock, Qty 12

0

5

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 10

0

6

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 5

0

8

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

10

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$94.99

$

In Stock, only 4 left!

0

10

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm RING THICK

$39.99

$

Usually ships in 2-5 days

0

10

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$39.99

$

Usually ships in 2-5 days

0

10

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$154.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 14-S

KIT,PSTN/RNG STYLE B(STD)

$188.99

$

In Stock, Qty 20+

0

11

Kohler 25 874 18-S

KIT,PSTN/RNG STYLE B(.08)

$222.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 19-S

KIT,PSTN/RNG STYLE B(.25)

$271.99

$

Usually ships in 2-5 days

0

11

Kohler 25 874 20-S

KIT,PSTN/RNG STYLE B(.50)

$268.99

$

Usually ships in 2-5 days

0

12

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$83.99

$

In Stock, Qty 20+

0

13

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

15

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

16

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 9

0

17

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 8

0

18

Kohler 25 123 07-S

TUBE ASSEMBLY

$18.99

$

In Stock, only 2 left!

0

19

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$6.99

$

In Stock, Qty 20+

0

20

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$3.49

$

In Stock, Qty 20+

0

21

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 25 153 02-S

O-RING, DIPSTICK

$3.49

$

In Stock, Qty 17

0

23

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

$12.99

$

In Stock, only 4 left!

0

24

Kohler 24 038 04-S

DIPSTICK, ASSY

$21.99

$

In Stock, only 3 left!

0

25

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, Qty 9

0

NI

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$58.99

$

Usually ships in 2-5 days

0
