PCV740-3023 - Kohler Command PRO EFI Propane Engine, Made for Superabrasive, 24hp, 17.0kW 05 Ignition/Charging Parts Diagram

Command PRO EFI Propane Engine, Made for Superabrasive, 24hp, 17.0kW

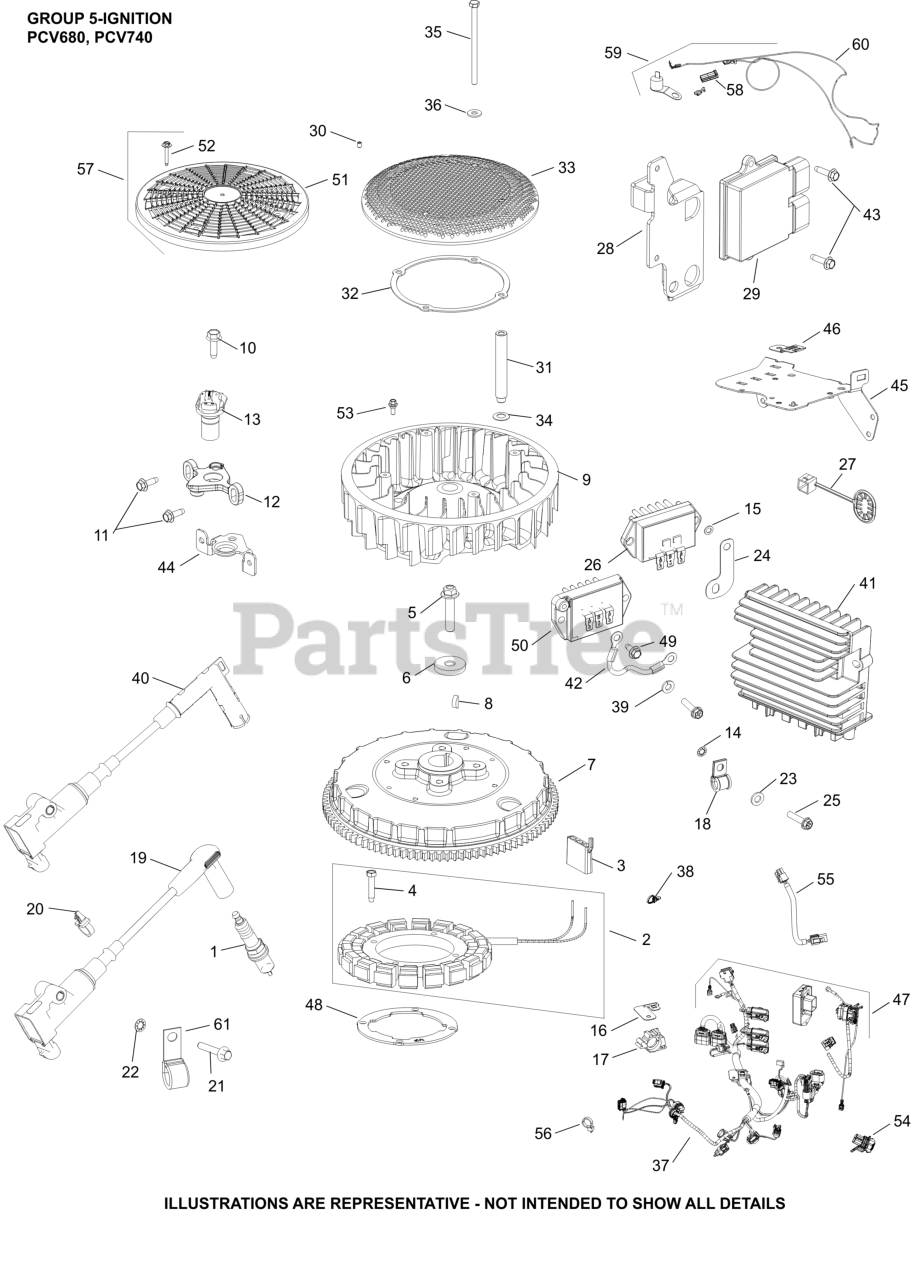

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

3

Kohler 25 155 41-S

CONNECTOR

$11.99

$

In Stock, Qty 18

0

5

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 18

0

6

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 11

0

7

Kohler 24 025 111-S

FLYWHEEL, ASSEMBLY

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

9

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 3 left!

0

11

Kohler 25 086 398-S

SCREW, THREAD FORMING

$4.49

$

In Stock, Qty 20+

0

13

Kohler 25 418 01-S

SENSOR, SPEED

$41.99

$

In Stock, only 3 left!

0

14

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

20

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

21

Kohler M-640034-S

SCREW, FLG (BLACK) M6X1.0X34

$2.49

$

Usually ships in 2-5 days

0

22

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, Qty 9

0

25

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 3 left!

0

27

Kohler 24 173 08-S

CAP, CONNECTOR

$9.99

$

Usually ships in 2-5 days

0

28

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

31

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

37

Kohler 24 176 263-S

HARNESS, WIRING ASSEMBLY

$359.99

$

Usually ships in 2-5 days

0

40

Kohler 25 519 04-S

COIL, IGNITION - EFI (RFI/EMC)

$240.99

$

In Stock, Qty 9

0

42

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

44

Kohler 25 126 18-S

BRACKET, SENSOR

$3.49

$

Usually ships in 2-5 days

0

49

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

50

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$97.99

$

In Stock, Qty 20+

0

53

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

58

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

59

Kohler 24 703 01-S

KIT, HI TEMP CUTOUT SENSOR

$164.99

$

In Stock, only 2 left!

0

60

Kohler 24 518 11-S

LEAD

$22.99

$

Usually ships in 2-5 days

0

61

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 24 584 207-S

MODULE, ECU-USE 24 584 234-S
(Superseded to 24 584 234-S)

$271.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 237 35-S

CLAMP, INSULATED

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 2 left!

0
