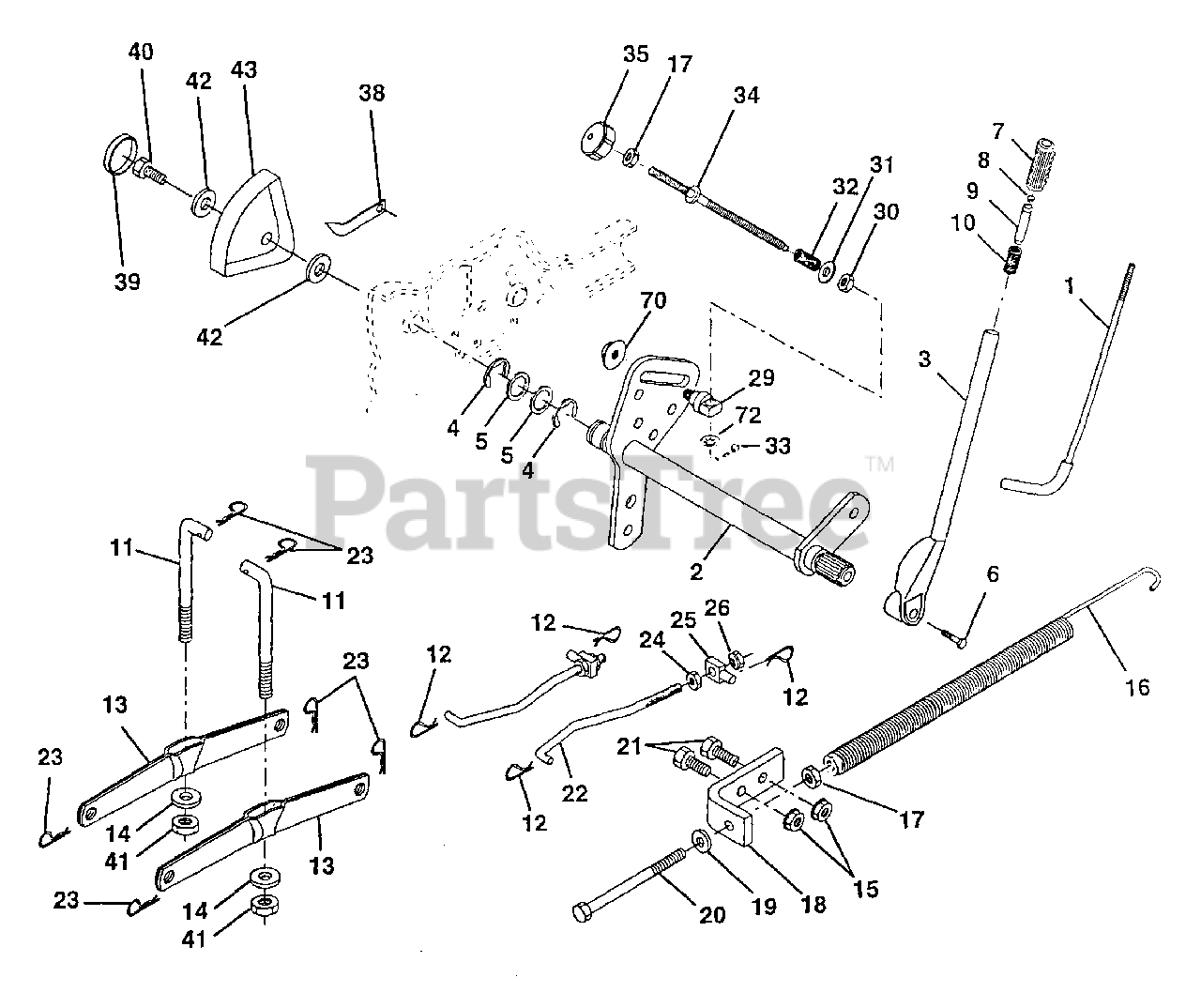

PP 1846 A - Poulan Pro Lawn Tractor Lift Assembly Parts Diagram

Lawn Tractor

Lift Assembly Parts Diagram

  • Title

1

Poulan 121006X

Rod Asm., Lever
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

2

Poulan 154389

Shaft Asm., Lift Vgt (AYP part number)
(Superseded to 192468)

$100.99

$

Usually ships in 3-10 days

0

3

Poulan 121002X

Lever Asm., Lift Rh (AYP part number)

$

$

Not available

4

Poulan 12000022

E-Ring Truarc #5133-87
(Superseded to 812000022)

$6.99

$

Usually ships in 3-10 days

0

5

Poulan 19292016

Washer 29/32 x 1-1/4 x 16 Ga
(Superseded to 819292016)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 74780624

Bolt, Fin Hex 3/8-16 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 109413X

Grip, Handle Fluted
(Superseded to 532109413)

$6.99

$

In Stock, only 1 left!

0

8

Poulan 124526X

Button, Plunger (AYP part number)

$

$

Not available

9

Poulan 122364X

Plunger, Lever Lift (AYP part number)

$

$

Not available

10

Poulan 2876H

Spring 2-1/8"
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 532146704

Link Lift (AYP part number)
(Superseded to 532145543)

$

$

Not available

12

Poulan 3146R

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Poulan 139868

Arm, Suspension Vgt
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

14

Poulan 532140302

Bearing (AYP part number)
(Superseded to 532169865)

$

$

Not available

15

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 674A247

Spring Asm., Assist Lift
(Superseded to 583791201)

$84.99

$

Usually ships in 3-10 days

0

17

Poulan 73350600

Nut, Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

18

Poulan 143363

Bracket, Spring Assist
(Superseded to 532143363)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 5328J

Bolt, Adjust Spring Assist
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Poulan 74760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 127218

Link, Front
(Superseded to 532127218)

$17.99

$

In Stock, Qty 5

0

23

Poulan 4939M

Retainer, Spring (AYP part number)

$

$

Not available

24

Poulan 73350800

Nut, Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

25

Poulan 130171

Trunnion (AYP part number)
(Superseded to 532175689)

$

$

Not available

26

Poulan 73800800

Nut, Lock W/Wsh 1/2-13 Unc (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

29

Poulan 150233

Trunnion Infin Height
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

30

Poulan 110807X

Nut, Special
(Superseded to 532110807)

$

$

Not available

31

Poulan 19131016

Washer 13/32 x 5/8 x 16 Ga
(Superseded to 819131016)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 137150

Spring, Compression Inf Hgt
(Superseded to 532137150)

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 76020308

Pin, Cotter 3/32 x 1/2 (AYP part number)

$

$

Not available

34

Poulan 137167

Rod, Adj Lift
(Superseded to 532137167)

$7.49

$

In Stock, only 2 left!

0

35

Poulan 138057

Knob, Inf 3/8-16 Unc
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

36

Poulan 17490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

38

Poulan 155097

Pointer Height Indicator
(Superseded to 532155097)

$

$

Not available

39

Poulan 123935X

Plug, Hole
(Superseded to 532123935)

$

$

Not available

40

Poulan 17490512

Screw, Thdrol 5/16-18 x 3/4 TYT
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 73540600

Nut, Crownlock 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 19112410

Washer 11/32 x 1-1/2 x 10 Ga
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 123934X

Scale, Indicator Height
(Superseded to 532123934)

$

$

Not available

70

Poulan 145212

Nut Hexflange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

72

Poulan 110452X

Nut Push Phos & Oil
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0
