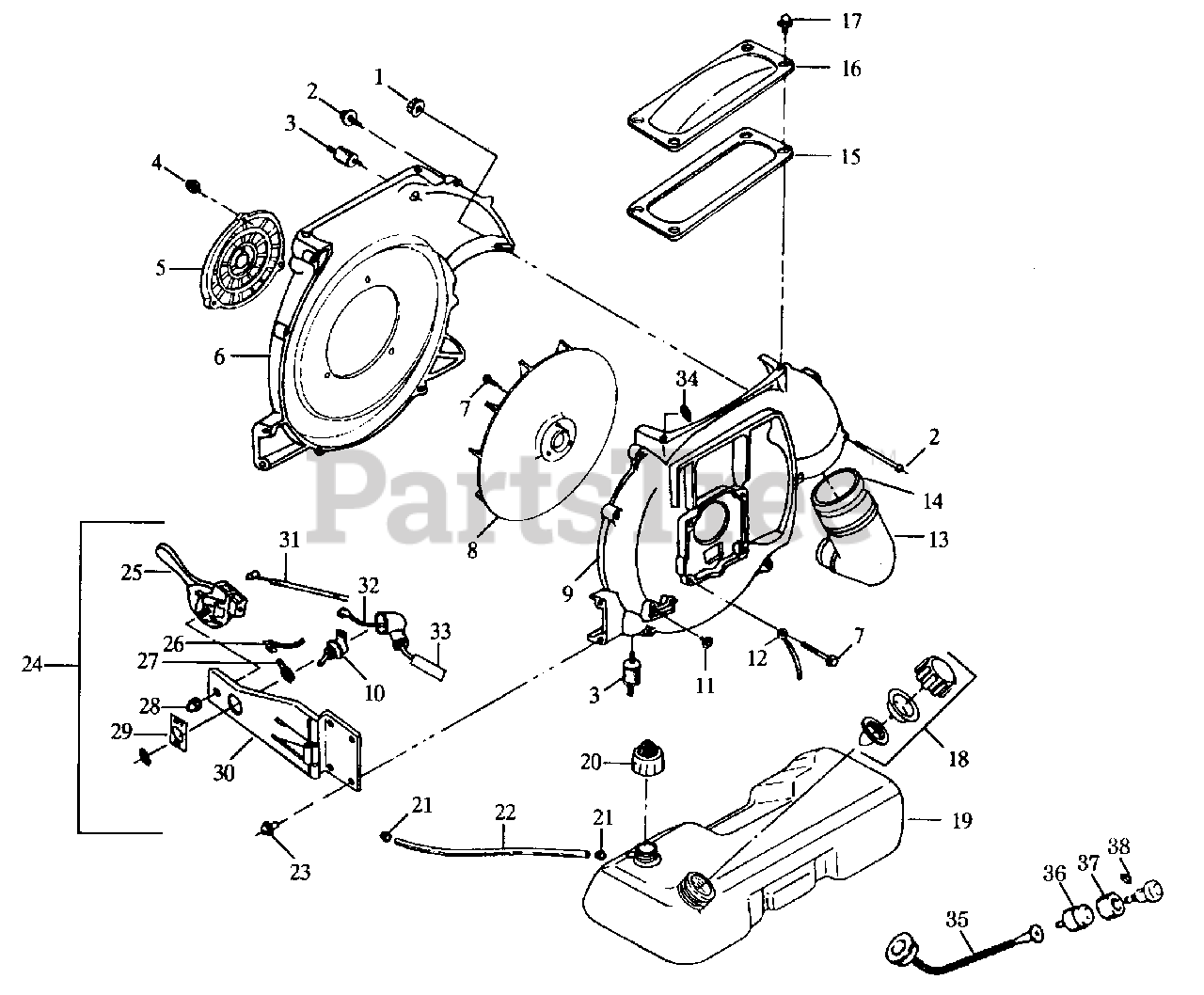

PP 440 - Poulan Pro Blower FUEL SYSTEM Parts Diagram

Blower

FUEL SYSTEM Parts Diagram

  • Title

1

Poulan 530089321

Nut

$

$

Not available

2

Poulan 530089320

Screw

$

$

Not available

3

Poulan 530089215

Isolating Rubber

$

$

Not available

4

Poulan 530089322

Bolt

$

$

Not available

5

Poulan 530089210

Fan Cover

$

$

Not available

6

Poulan 530089208

Fan Case (R)

$

$

Not available

7

Poulan 530089319

Bolt

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530089209

Fan

$

$

Not available

9

Poulan 530089207

Fan Case (F)

$

$

Not available

10

Poulan 530089219

Stop Switch

$

$

Not available

11

Poulan 530089325

Screw

$

$

Not available

12

Poulan 530089230

Wire Band

$

$

Not available

13

Poulan 530089211

Elbow Pipe

$34.99

$

Usually ships in 3-10 days

0

14

Poulan 530089212

O Ring
(Superseded to 545145482)

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 530089214

Gasket

$

$

Not available

16

Poulan 530089213

Cover

$

$

Not available

17

Poulan 530089323

Screw

$

$

Not available

18

Poulan 530089311

Tank Cap Ass'y.

$

$

Not available

19

Poulan 530089312

Fuel Systems

$

$

Not available

20

Poulan 530089306

Priming Pump

$

$

Not available

21

Poulan 530089304

Clip

$

$

Not available

22

Poulan 530089305

Fuel Tube

$

$

Not available

23

Poulan 530089328

Screw

$

$

Not available

24

Poulan 530089216

Lever Holding Ass'y.

$

$

Not available

25

Poulan 530089218

Throttle Lever

$15.99

$

Usually ships in 3-10 days

0

26

Poulan 530089223

Earth Wire

$

$

Not available

27

Poulan 530089221

Earth Plate

$

$

Not available

28

Poulan 530089327

Nut

$

$

Not available

29

Poulan 530089220

Plate

$

$

Not available

30

Poulan 530089217

Lever Compliance

$

$

Not available

31

Poulan 530089280

Throttle Wire

$

$

Not available

32

Poulan 530089222

Lead Wire

$

$

Not available

33

Poulan 530089224

Tube

$

$

Not available

34

Poulan 530089324

Nut

$2.49

$

Usually ships in 3-10 days

0

35

Poulan 530089307

Suction Hose

$

$

Not available

36

Poulan 530089308

Fuel Filter

$

$

Not available

37

Poulan 530089309

Felt

$

$

Not available

38

Poulan 530089310

Sponge

$

$

Not available
