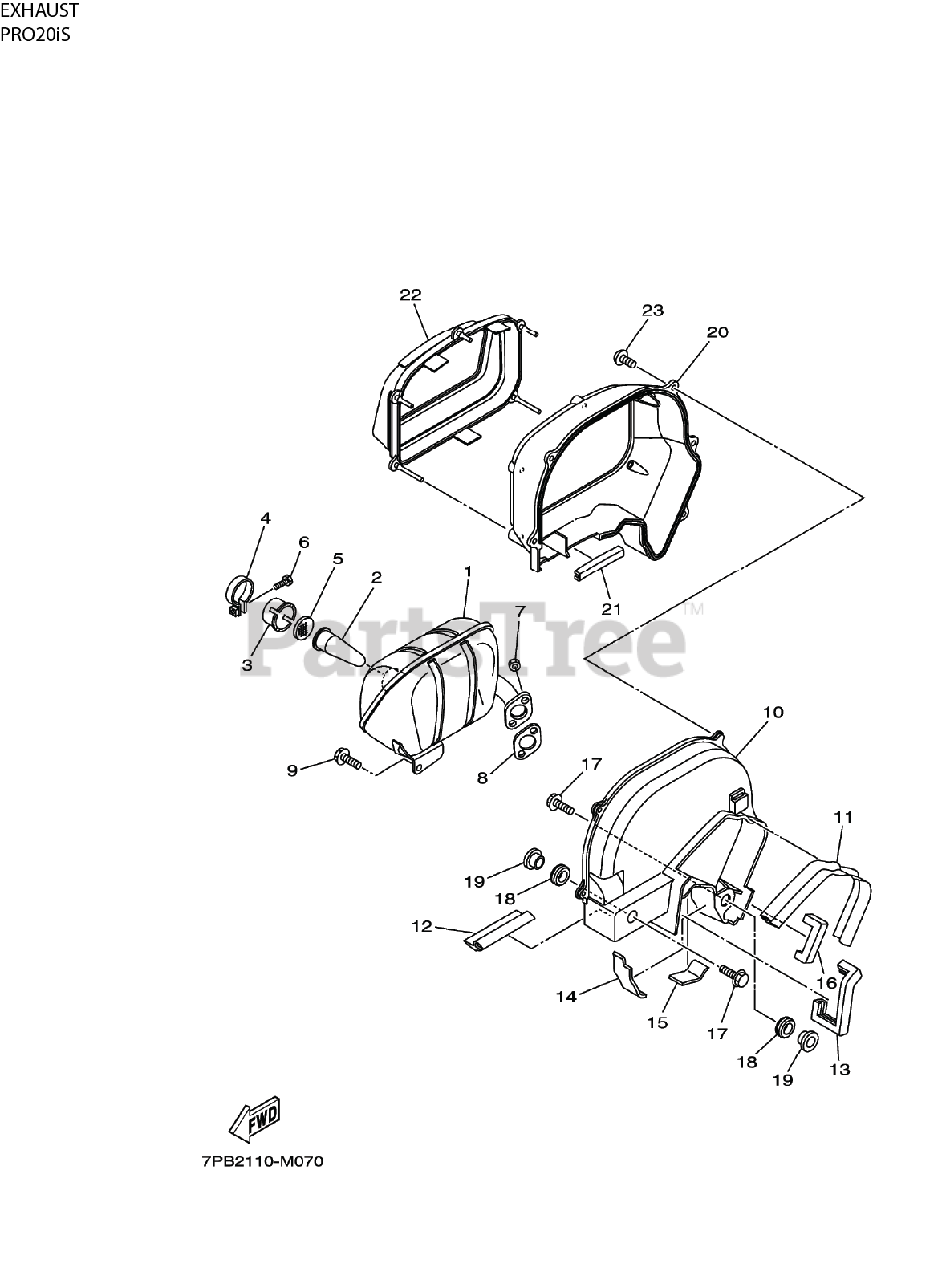

PRO2.0iS (PRO20iS-3001) - Kohler PRO 2,000 Watt Inverter Generator Exhaust Parts Diagram

PRO 2,000 Watt Inverter Generator

Exhaust Parts Diagram

  • Title

1

Kohler 33 068 02-S

MUFFLER 2

$172.99

$

Usually ships in 2-5 days

0

2

Kohler 33 189 02-S

ARRESTER, SPARK

$4.49

$

Usually ships in 2-5 days

0

3

Kohler 33 173 02-S

CAP

$18.99

$

Usually ships in 2-5 days

0

4

Kohler 33 237 03-S

CLAMP - BAND, SILENCER

$10.99

$

Usually ships in 2-5 days

0

5

Kohler 33 162 02-S

SCREEN - NET, WIRE

$10.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 522-S

SCREW - HEXAGON

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 33 100 11-S

NUT

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 33 041 14-S

GASKET, EXHAUST PIPE

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 25 086 524-S

SCREW - BOLT FLANGE

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 33 314 03-S

GUARD, MUFFLER

$30.99

$

Usually ships in 2-5 days

0

11

Kohler 33 032 09-S

SEAL

$6.99

$

Usually ships in 2-5 days

0

12

Kohler 33 032 10-S

SEAL

$5.49

$

Usually ships in 2-5 days

0

13

Kohler 33 032 11-S

SEAL, PROTECTOR

$3.99

$

Usually ships in 2-5 days

0

14

Kohler 33 032 13-S

SEAL, PROTECTOR 2

$3.99

$

Usually ships in 2-5 days

0

15

Kohler 33 032 14-S

SEAL, PROTECTOR

$4.49

$

Usually ships in 2-5 days

0

16

Kohler 33 032 12-S

SEAL, PROTECTOR

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 25 086 482-S

SCREW - BOLT FLANGE

$3.99

$

Usually ships in 2-5 days

0

18

Kohler 33 313 04-S

GROMMET

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 33 241 01-S

COLLAR

$4.99

$

Usually ships in 2-5 days

0

20

Kohler 33 314 04-S

GUARD, MUFFLER ASSEMBLY

$26.99

$

Usually ships in 2-5 days

0

21

Kohler 33 032 12-S

SEAL, PROTECTOR

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 33 281 01-S

DUCT

$32.99

$

Usually ships in 2-5 days

0

23

Kohler 25 086 520-S

SCREW - TRUSS HEAD TAPPING

$3.99

$

Usually ships in 2-5 days

0
