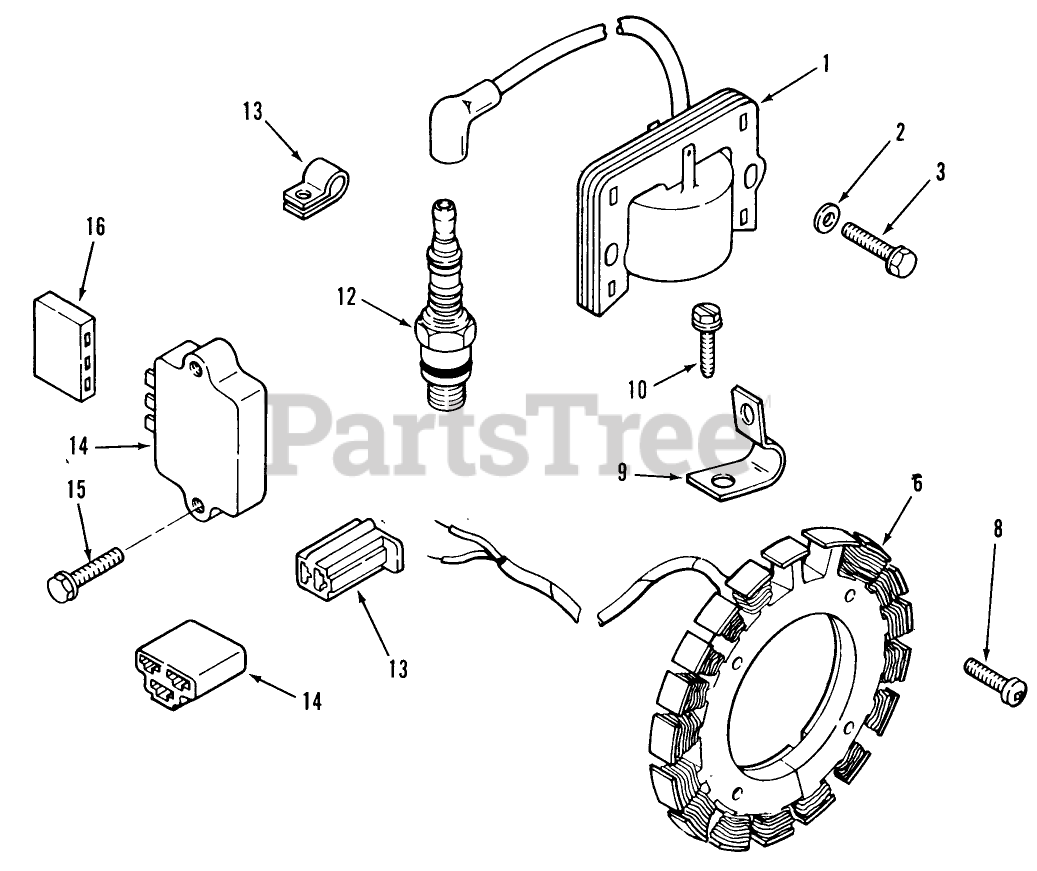

R1-16O801 (316-8) - Toro Garden Tractor (1990) KOHLER IGNITION SYSTEM Parts Diagram

Garden Tractor

KOHLER IGNITION SYSTEM Parts Diagram

  • Title

1

Toro 47 584 01

Ignition Module (Before Serial No. 1715900013)

$

$

Currently unavailable

Toro 47 584 02

Module-Ignition

$

$

Currently unavailable

2

Toro X-25-79

Washer

$

$

Currently unavailable

3

Toro X-156-1

Screw

$

$

Currently unavailable

6

Toro 237878

Stator
(Superseded to 701518)

$

$

Not available

8

Toro X-778-1

Screw

$

$

Currently unavailable

9

Toro X-728-1

Clip

$

$

Currently unavailable

10

Toro X-67-49

Hex. Washer Hd. Screw No. 8-32 x 3/8

$

$

Currently unavailable

12

Toro 235041-S

Plug-Spark

$

$

Currently unavailable

13

Toro 210281

Clip-Cable

$

$

Currently unavailable

14

Toro 41 503 05

Regulator-Rectifier

$

$

Currently unavailable

15

Toro X-132-4

Screw

$

$

Currently unavailable

16

Toro 236602

Connector

$

$

Currently unavailable

Toro 47 518 43

Lead-White w/Diode

Note: Not illustrated

$

$

Currently unavailable

Toro 47 518 37

Lead-White, Module to Connector (15") After, Serial No. 1715900003)

Note: Not illustrated

$

$

Currently unavailable

Toro 47 518 36

Lead-Violet, Regulator-Rectifier to Connector (23")

Note: Not illustrated

$

$

Currently unavailable
