R1-16O801 (316-8) - Toro Garden Tractor (1990) SHEET METAL AND COVERS 2 Parts Diagram

Garden Tractor

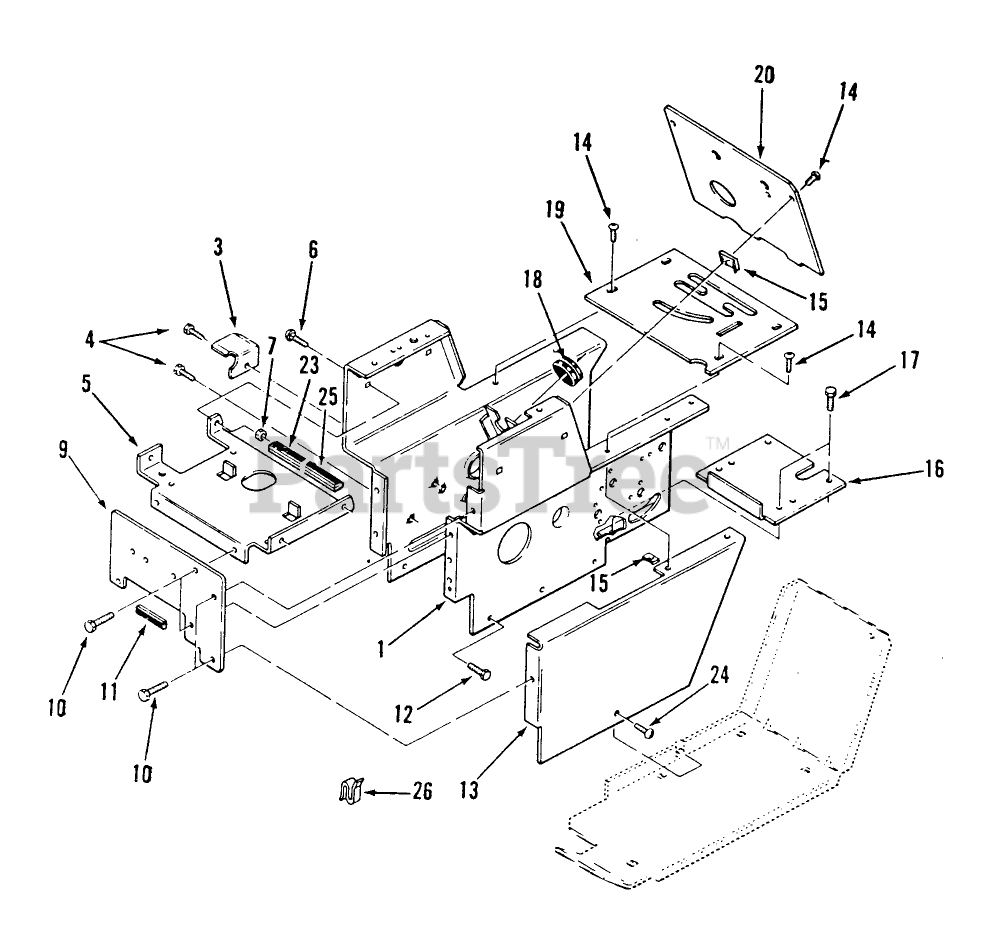

SHEET METAL AND COVERS 2 Parts Diagram

  • Title

1

Toro 109765

DISCONTINUED

$

$

Not available

3

Toro 106261

See Supercession: 88-2170-03
(Superseded to 88-2170-03)

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 110094

DISCONTINUED

$

$

Not available

6

Toro 900035

DISCONTINUED

$

$

Not available

7

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

9

Toro 106342

DISCONTINUED

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106772

DISCONTINUED

$

$

Not available

12

Toro 926694

SCREW

$

$

Not available

Toro 926696

See Supercession: 9266964
(Superseded to 9266964)

$

$

Not available

13

Toro 109323

See Supercession: 113935-01
(Superseded to 113935-01)

$89.99

$

Usually ships in 3-6 days

0

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 106250

See Supercession: 106250-03
(Superseded to 106250-03)

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 104246

DISCONTINUED

$

$

Not available

19

Toro 111387

DISCONTINUED

$

$

Not available

20

Toro 111033

DISCONTINUED

$

$

Not available

23

Toro 110142

DISCONTINUED

$

$

Not available

24

Toro 910837

See Supercession: 9108372
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

25

Toro 106772

DISCONTINUED

$

$

Not available

26

Toro 3023

DISCONTINUED

$

$

Not available
