Ram 61 ZT BF (966054401) - Dixon Ram Zero-Turn Mower (2009-06) MOWER DECK / CUTTING DECK Parts Diagram

Ram Zero-Turn Mower

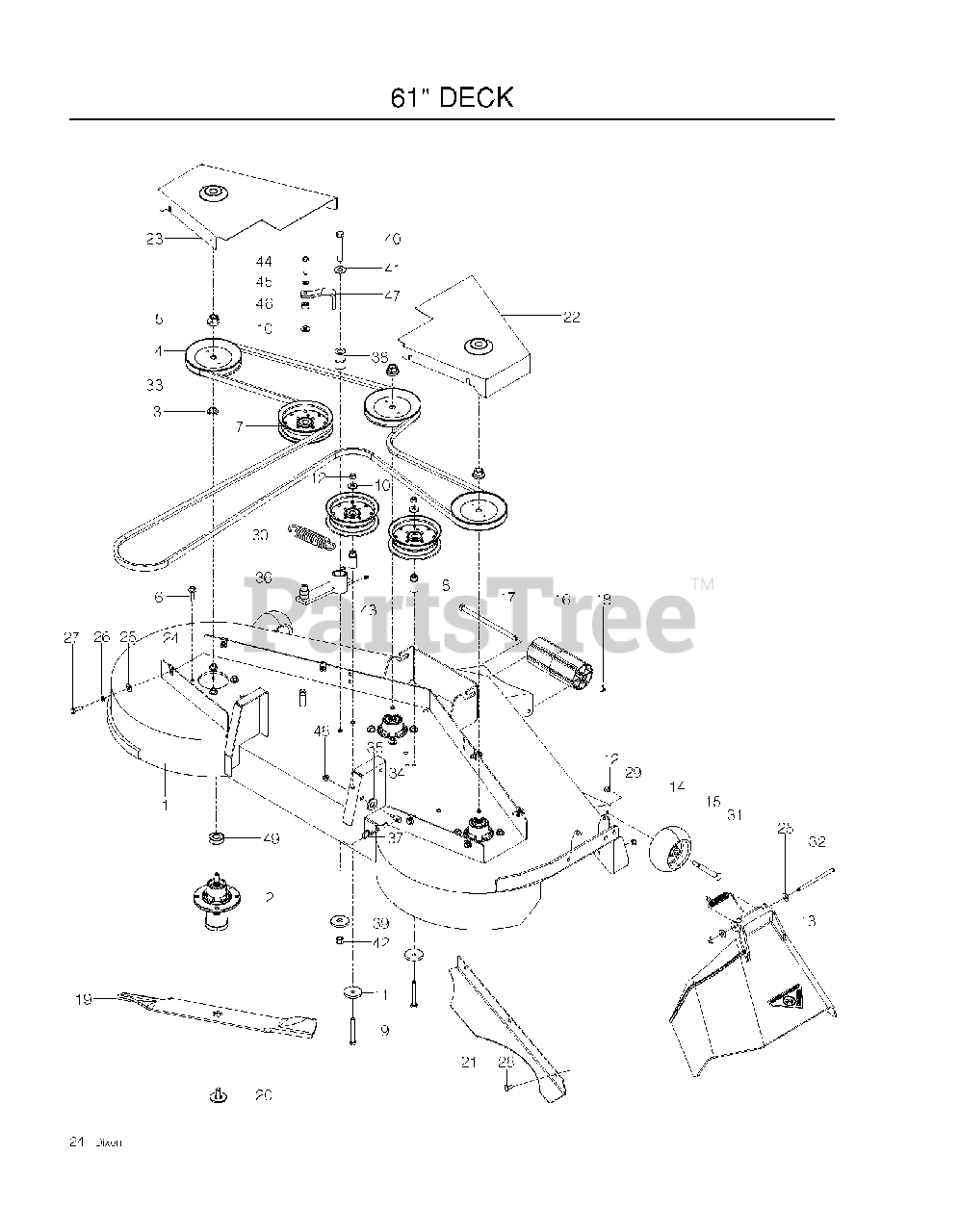

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 522745901

DECK W/DECALS - RAM 61

$2306.99

$

Usually ships in 3-10 days

0

2

Dixon 539112170

MANDREL.DECK.ASSEMBLY

$74.99

$

In Stock, Qty 20+

0

3

Dixon 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Dixon 539113300

PULLEY

$26.99

$

In Stock, Qty 20+

0

5

Dixon 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Dixon 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

7

Dixon 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

8

Dixon 539112169

IDLER BUSHING

$

$

Not available

9

Dixon 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

10

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539106504

SPINDLE WASHER

$

$

Not available

12

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539110734

DISCHARGE CHUTE 61"

$53.99

$

In Stock, Qty 12

0

14

Dixon 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

15

Dixon 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

16

Dixon 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

17

Dixon 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

18

Dixon 539990365

COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

19

Dixon 510417901

BLADE, 21"

$27.99

$

In Stock, Qty 20+

0

20

Dixon 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

21

Dixon 539113317

CONFINEMENT PLATE 61

$66.99

$

In Stock, only 1 left!

0

22

Dixon 510260101

SHIELD, BELT 61 BLUE RH

Note: RIGHT

$54.99

$

Usually ships in 3-10 days

0

23

512260201

Note: LEFT

$

$

Not available

24

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

25

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

26

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

28

Dixon 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

31

Dixon 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 16

0

32

Dixon 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$

$

Not available

33

Dixon 539114543

V-BELT, 161B

$133.99

$

In Stock, only 1 left!

0

34

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

35

Dixon 539976982

WASHER 5/8 FLAT

$4.99

$

In Stock, only 2 left!

0

36

Dixon 539112198

IDLER ARM

$121.99

$

In Stock, only 1 left!

0

37

Dixon 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

38

Dixon 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

39

Dixon 539102243

WASHER, SUPPORT

$

$

Not available

40

Dixon 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

41

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

43

Dixon 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

44

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

46

Dixon 539923515

SPACER

$4.99

$

Usually ships in 3-10 days

0

47

Dixon 539114981

GUIDE, BELT

$

$

Not available

48

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

49

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0
