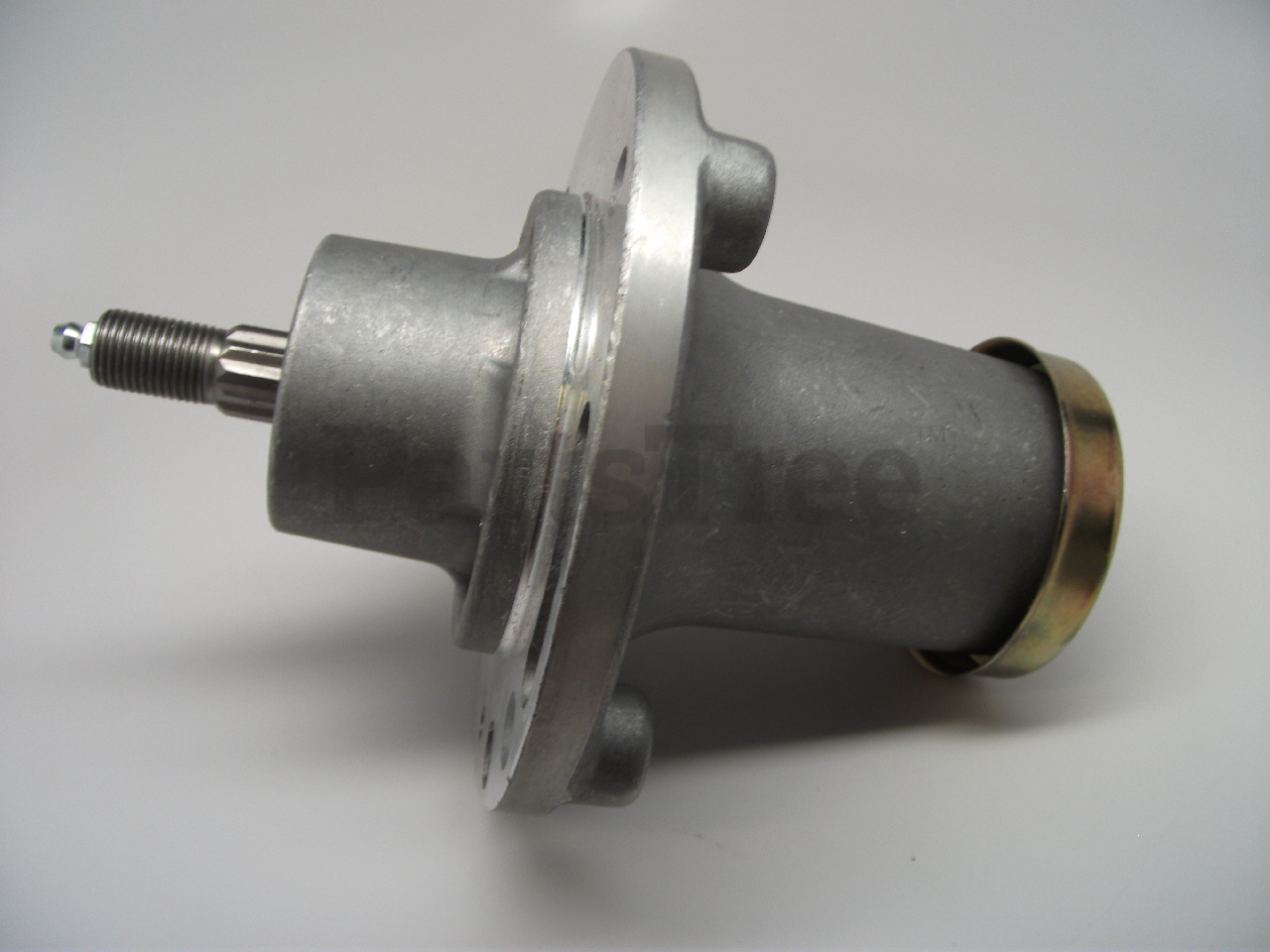

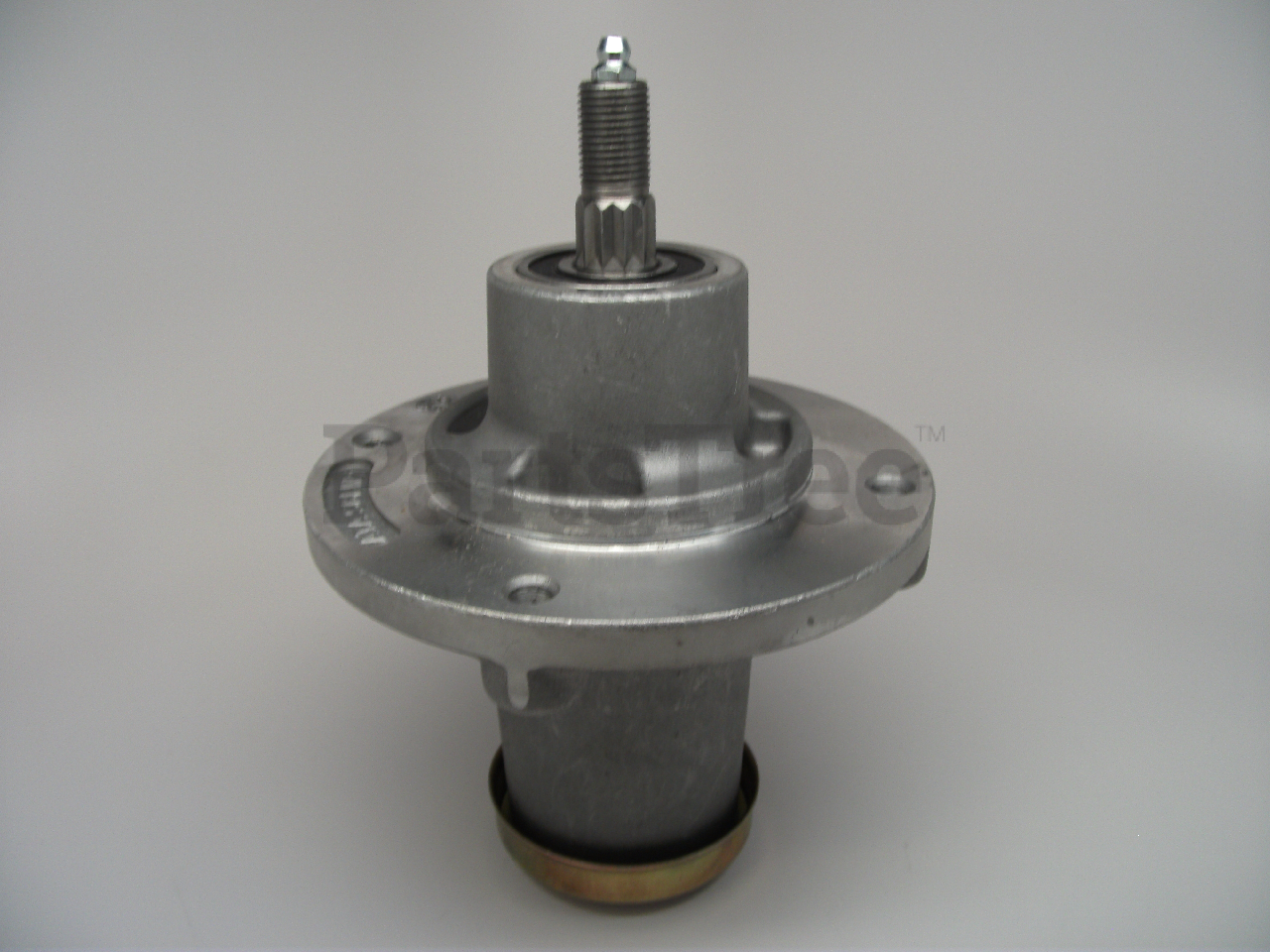

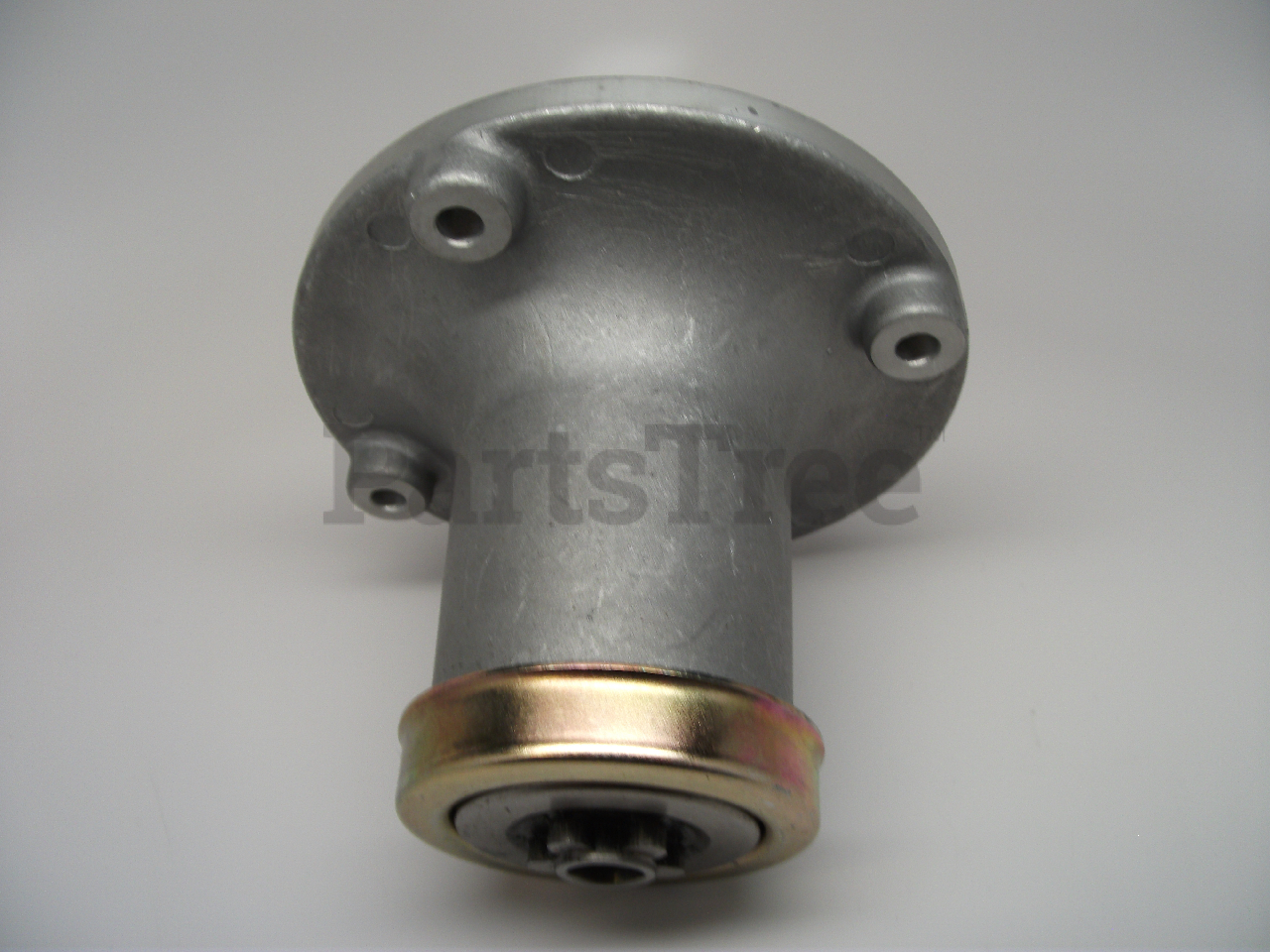

Dixon 539112170 Deck Mandrel Assembly

Dixon 539112170

Deck Mandrel Assembly

Weight:3.74 lbs.

Description... Hide

The purpose of the Spindle is to control the safe rotation of the mower blade during operation. The spindle is often made of aluminum on residential mowers and steel on commercial mower decks. Much like a shear pin in other applications, the spindle is designed to break if the blade hits a hard object to protect the deck shell from damage. Screws are required for installation and are usually sold separately. Most use self-tapping screws to create the threads when screwed into the holes in the spindle.

$74.99

In Stock, Qty 20+

Often Bought with this Part

584953901

Hex Washer Head Bolt, .313-18 X 1.19

$3.49
532193003

Bolt and Washer Assembly, 7/16-2

$8.99

Models that Use this Part

Your part was not found on any models.

If you feel this is in error or desire further assistance, please call us!

Dixon 539112170 Deck Mandrel Assembly

Dixon 539112170

Often Bought with this Part

Models that Use this Part

Your part was not found on any models.

Ram 48 CE (966658601) - Dixon 48" Ram Zero-Turn Mower (2012-02)

Ram 48 ZT (965882601) - Dixon 48" Ram Zero-Turn Mower (2008-12)

Ram 48 ZT (966495301) - Dixon 48" Ram Zero-Turn Mower (2009-09)

Ram 48 ZT (966611601) - Dixon 48" Ram Zero-Turn Mower (2010-09)

Ram 48 ZT BF (966495401) - Dixon 48" Ram Zero-Turn Mower (2009-09)

Ram 48 ZT BF (966658501) - Dixon 48" Ram Zero-Turn Mower (2012-02)

Ram 48 ZT CA (966611601) - Dixon 48" Ram Zero-Turn Mower (2012-02)

Ram 52 ZT (966038601) - Dixon 52" Ram Zero-Turn Mower (2009-10)

Ram 52 ZT (966038701) - Dixon 52" Ram Zero-Turn Mower (2009-06)

Ram 52 ZT BF (966054301) - Dixon 52" Ram Zero-Turn Mower (2009-09)

Ram 61 KZ (965883001) - Dixon 61" Ram Zero-Turn Mower (2008-12)

Ram 61 ZT (966038801) - Dixon 61" Ram Zero-Turn Mower (2009-06)

Ram 61 ZT BF (966054401) - Dixon Ram Zero-Turn Mower (2009-06)

Ram Ultra 52 (966985301) - Dixon 52" Ram Ultra Zero-Turn Mower (2009-01)

Ram Ultra 52 (966985302) - Dixon 52" Ram Ultra Zero-Turn Mower (2009-01)

Ram Ultra 61 (966985401) - Dixon 61" Ram Ultra Zero-Turn Mower (2009-01)

Ram Ultra 61 (966985401) - Dixon 61" Ram Ultra Zero-Turn Mower (2009-12)

Ram Ultra 61 (966985402) - Dixon 61" Ram Ultra Zero-Turn Mower (2009-01)

Ram Ultra 61 (966985402) - Dixon 61" Ram Ultra Zero-Turn Mower (2009-12)

Ram Ultra 72 (968999724) - Dixon 72" Ram Ultra Zero-Turn Mower (2009-01)

Ram Ultra 72 (968999773) - Dixon 72" Ram Ultra Zero-Turn Mower (2009-01)

Ram Ultra XS7227 72 (968999724) - Dixon 72" Ram Ultra Zero-Turn Mower, Kohler (2008)

Ram Ultra XS7227 BF 72 (968999773) - Dixon 72" Ram Ultra Zero-Turn Mower, Kohler (2008)

Speed ZTR 42 (966496201) - Dixon 42" Speed ZTR Zero-Turn Mower (2009-12)

Speed ZTR 42 (966496301) - Dixon 42" Speed ZTR Zero-Turn Mower (2009-12)

Don’t see your model? Add key terms into the filter above to refine your search results.
