RH255-0001 - Kohler RH Series Engine, Basic Version, 5.5hp, 4.2kW 08 Fuel System Parts Diagram

RH Series Engine, Basic Version, 5.5hp, 4.2kW

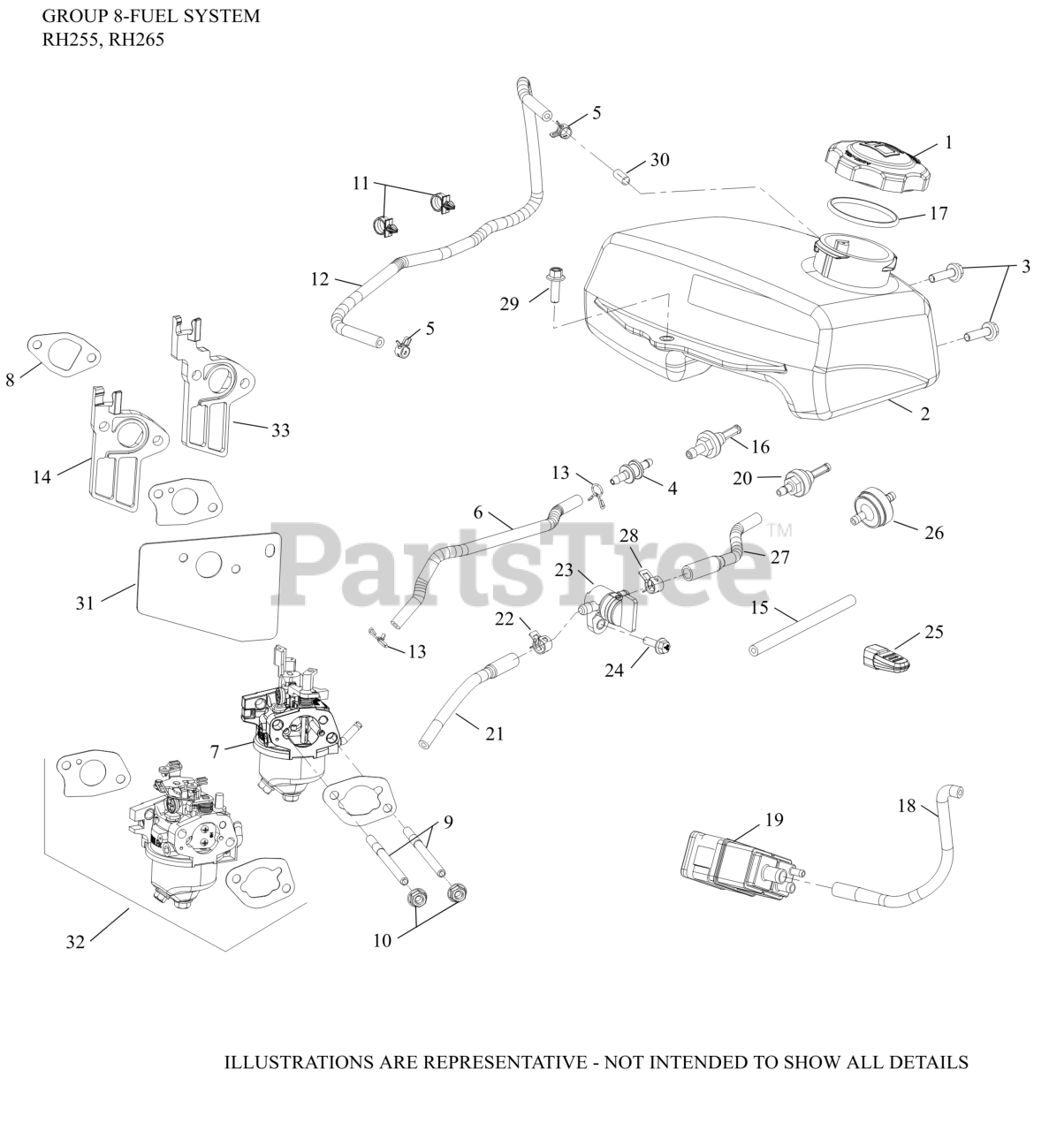

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 227 20-S

CAP ASSEMBLY, FUEL

$10.99

$

In Stock, only 3 left!

0

2

Kohler 18 065 24-S

TANK, ASSEMBLY (EPA)

$138.99

$

In Stock, only 3 left!

0

3

Kohler 25 086 331-S

SCREW, M6 X 22

$2.99

$

In Stock, only 2 left!

0

6

Kohler 25 111 118-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

Usually ships in 2-5 days

0

7

Kohler 18 853 17-S

KIT,CARB (HUAYI)

$91.99

$

In Stock, Qty 9

0

8

Kohler 18 041 06-S

KIT, INTAKE GASKET

$13.99

$

In Stock, Qty 9

0

9

Kohler 18 072 10-S

STUD, CARBURETOR

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 14 100 08-S

NUT, HEX FLANGE (M6) - USE 14 100 16-S
(Superseded to 14 100 16-S)

$2.99

$

In Stock, Qty 20+

0

10

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.99

$

In Stock, Qty 20+

0

11

Kohler 18 154 03-S

CLIP, FUEL HOSE

$

$

Not available

11

Kohler 18 154 04-S

CLIP, FUEL HOSE

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 25 326 69-S

HOSE, EVAPORATIVE

$7.49

$

Usually ships in 2-5 days

0

13

Kohler 18 237 06-S

CLAMP, FUEL HOSE

$

$

Not available

14

Kohler 18 168 04-S

INSULATOR, CARBURETOR

$6.99

$

In Stock, only 2 left!

0

17

Kohler 14 032 10-S

SEAL, FUEL CAP

$

$

Not available

20

Kohler 17 294 05-S

FITTING, FUEL ASSY
(Superseded to 17 294 19-S)

$8.99

$

In Stock, Qty 5

0

25

Kohler 18 341 02-S

KNOB, CHOKE (YELLOW)-USE 18 536 11-S
(Superseded to 18 536 11-S)

$20.99

$

In Stock, only 2 left!

0

29

Kohler 25 086 223-S

SCREW, M6 X18

$2.99

$

In Stock, only 4 left!

0

NI

Kohler 14 757 04-S

KIT, CARBURETOR REPAIR (HUAYI)

$19.99

$

In Stock, Qty 5

0

NI

Kohler 18 755 02-S

KIT, HIGH ALTITUDE MAIN JET

$12.99

$

Usually ships in 2-5 days

0

NI

Kohler 18 755 09-S

KIT, HIGH ALTITUDE

$12.99

$

Usually ships in 2-5 days

0
