RH265-3131 - Kohler RH Series Engine, Made for TTi, 6.5hp, 4.8kW 08 Fuel System Parts Diagram

RH Series Engine, Made for TTi, 6.5hp, 4.8kW

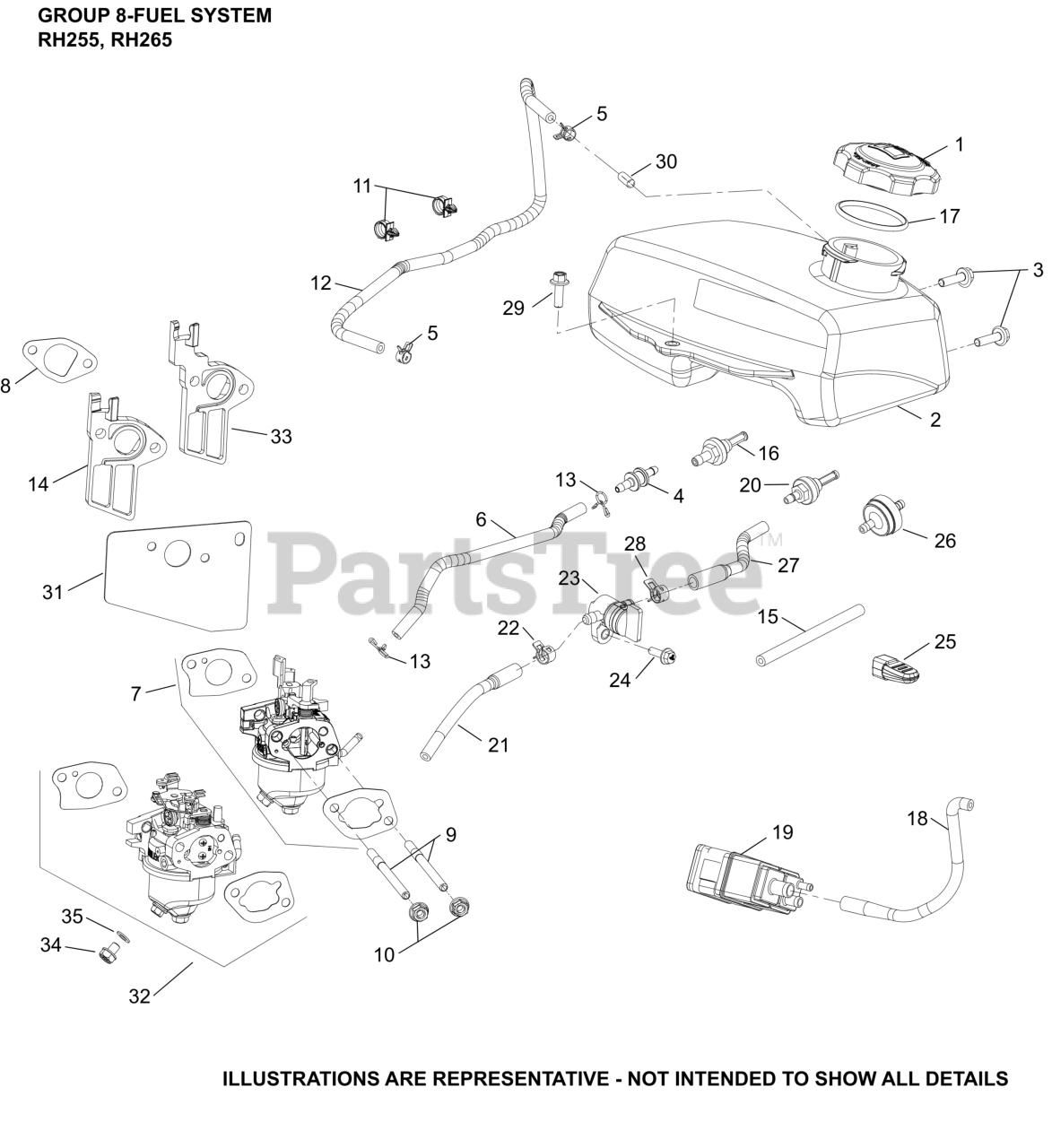

08 Fuel System Parts Diagram

  • Title

1

Kohler 14 227 20-S

CAP ASSEMBLY, FUEL

$12.99

$

In Stock, Qty 7

0

2

Kohler 18 065 24-S

TANK, ASSEMBLY (EPA)

$163.99

$

In Stock, only 3 left!

0

3

Kohler 25 086 331-S

SCREW, M6 X 22

$3.49

$

In Stock, only 2 left!

0

7

Kohler 18 853 45-S

KIT,CARB (HUAYI)

$108.99

$

Usually ships in 2-5 days

0

8

Kohler 18 041 06-S

KIT, INTAKE GASKET

$15.99

$

In Stock, Qty 10

0

9

Kohler 18 072 10-S

STUD, CARBURETOR

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 14 100 08-S

NUT, HEX FLANGE (M6) - USE 14 100 16-S
(Superseded to 14 100 16-S)

$2.99

$

In Stock, Qty 20+

0

10

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, Qty 20+

0

11

Kohler 18 154 03-S

CLIP, FUEL HOSE

$

$

Not available

11

Kohler 18 154 04-S

CLIP, FUEL HOSE

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 25 326 73-S

HOSE, EVAPORATIVE

$8.99

$

In Stock, only 1 left!

0

13

Kohler 18 237 06-S

CLAMP, FUEL HOSE

$

$

Not available

14

Kohler 18 168 04-S

INSULATOR, CARBURETOR

$7.99

$

In Stock, only 2 left!

0

17

Kohler 14 032 10-S

SEAL, FUEL CAP- (#DSC)

$

$

Not available

18

Kohler 25 326 72-S

HOSE PURGE, CARBON CANISTER TO A/C BASE

$6.49

$

In Stock, only 1 left!

0

19

Kohler 18 163 01-S

CANISTER ASSEMBLY, CARBON

$43.99

$

In Stock, only 3 left!

0

20

Kohler 17 294 05-S

FITTING, FUEL ASSY
(Superseded to 17 294 19-S)

$10.99

$

In Stock, Qty 7

0

21

Kohler 25 111 134-S

HOSE, FUEL LOW-PERMEATION

$5.99

$

Usually ships in 2-5 days

0

22

Kohler 14 237 07-S

CLAMP, HOSE (NON-CALIF)(#1423710S)
(Superseded to 14 237 10-S)

$3.49

$

In Stock, only 4 left!

0

23

Kohler 18 099 15-S

VALVE, FUEL SHUTOFF ASSEMBLY

$19.99

$

Usually ships in 2-5 days

0

24

Kohler 25 086 644-S

SCREW, M5 X 16 M5 X 16

$2.99

$

Usually ships in 2-5 days

0

25

Kohler 18 341 02-S

KNOB, CHOKE (YELLOW)-USE 18 536 11-S
(Superseded to 18 536 11-S)

$24.99

$

In Stock, only 4 left!

0

29

Kohler 25 086 223-S

SCREW, M6 X18

$3.49

$

In Stock, only 4 left!

0

NI

Kohler 14 757 04-S

KIT, CARBURETOR REPAIR (HUAYI)

$23.99

$

In Stock, Qty 5

0

NI

Kohler 18 755 13-S

KIT, HIGH ALT (4000-8000 FT)

$15.99

$

Usually ships in 2-5 days

0

NI

Kohler 18 755 14-S

KIT, CARB - HIGH ALTITUDE (ABOVE 8,000')

$19.99

$

Usually ships in 2-5 days

0
