S 150XT (5901484) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

S150XT Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

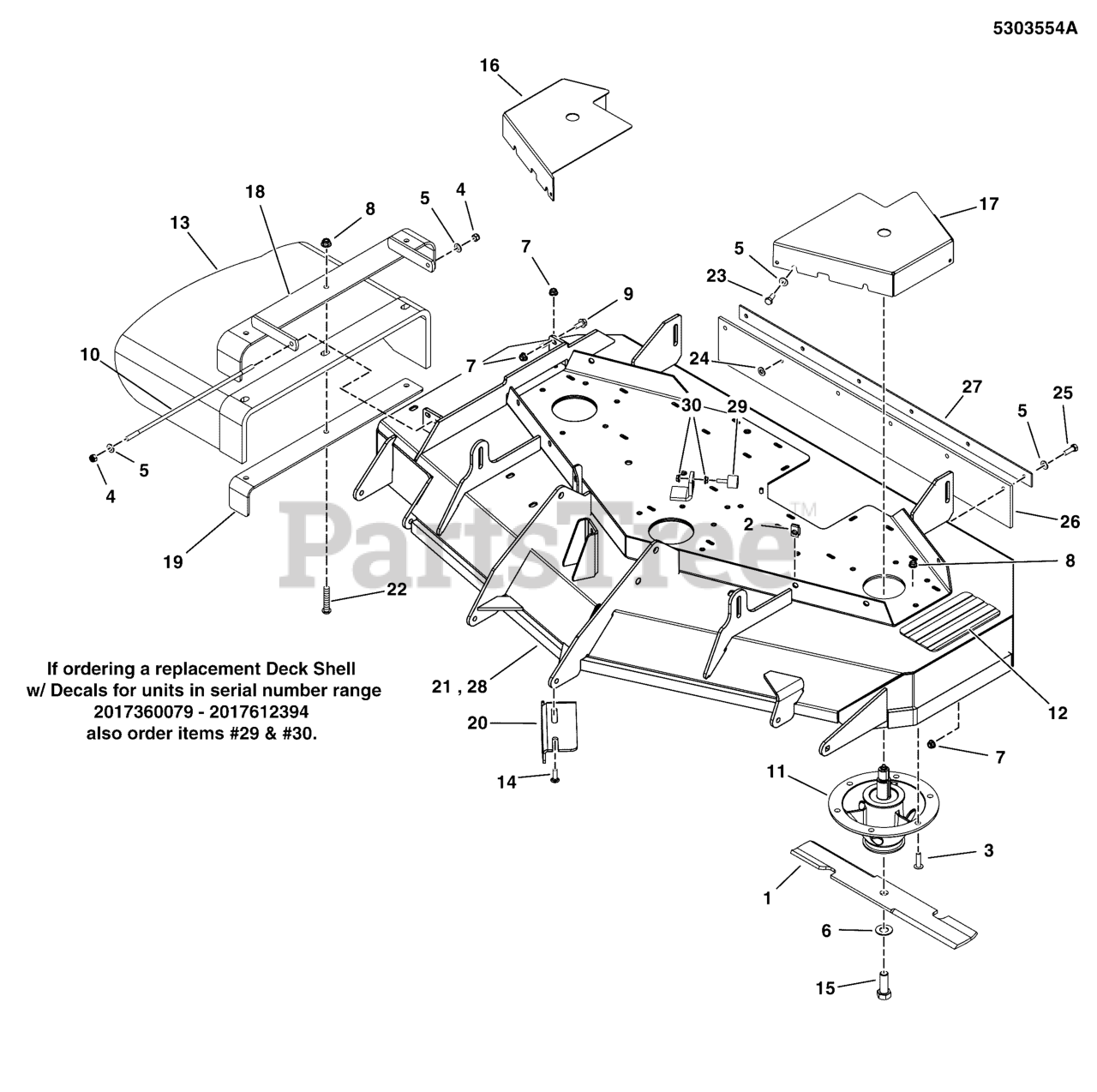

52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

$

$

Currently unavailable

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

3

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

Note: (Qty: 14 - S/N: 2017612049 & Below)

$

$

Currently unavailable

6

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 18

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (Qty: 9 - S/N: 2017612049 & Below)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

10

Snapper Pro 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5413500

CHUTE, RUBBER DISCHARGE (5104442)

Note: (5104442)

$216.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5415939D

PLATE, DECK GUARD, RH - RED

$

$

Currently unavailable

17

Snapper Pro 5415940D

PLATE, DECK GUARD, LH - RED

$

$

Currently unavailable

18

Snapper Pro 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

$66.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

$31.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5407983A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5407983AYP)

$16.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600876

DECK SHELL W/ DECALS, 52, S150XT-DOM (5413377D)

Note: (S/N: 2017315859 & Below)

$1956.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

24

Snapper Pro 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

Note: (S/N: 2017612049 & Below)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

Note: (S/N: 2017612049 & Below)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102015

FLAP, STRIPER, 61" DECK, IS3100, S200X
(Superseded to 5102015YP)

Note: (S/N: 2017612049 & Below)

$62.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5405238A

PLATE, SUPPORT - BLKV
(Superseded to 5405238AYP)

Note: (S/N: 2017612049 & Below)

$30.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5600921

DECK SHELL W/DECALS,52,S150XT,5414847D

Note: (S/N: 2017315860 & Above)

$2222.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5105237

BUMPER, RUBBER, 1/4-20 X 7/8" STUD
(Superseded to 5105237YP)

Note: (S/N: 2017612395 & Above)

$6.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (S/N: 2017612395 & Above)

$4.49

$

Usually ships in 2-12 days

0
