S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Control Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

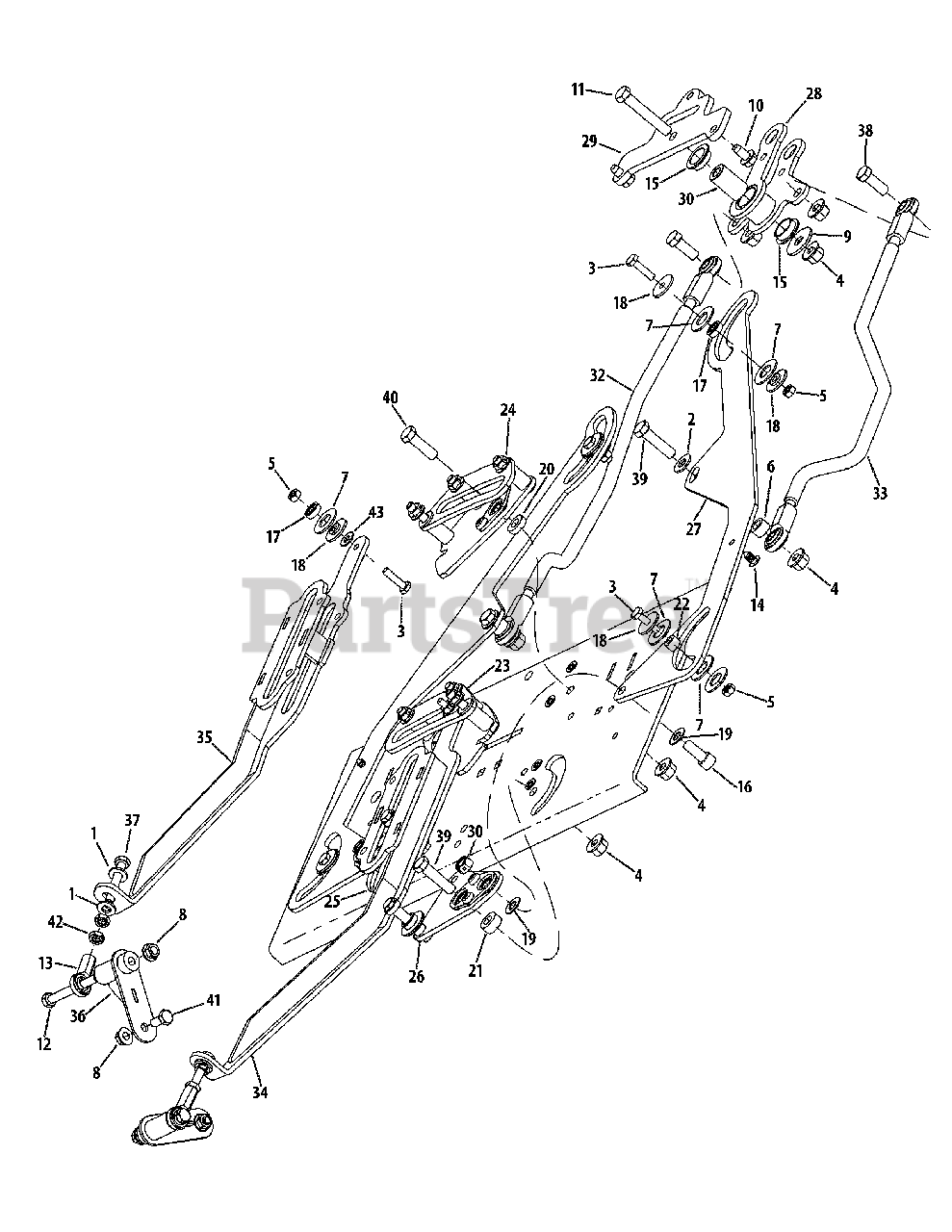

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

2

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.99

$

In Stock, only 4 left!

0

3

Cub Cadet 00013416

Hex Screw, 1/4-20 x 1.00
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00023041

Counter Lock Nut, 1/4-20

$

$

Not available

6

Cub Cadet 00081551

Spacer, .407 x .625 x .375

$

$

Not available

7

Cub Cadet 01000101

Washer, .550 x 1.25 x .068
(Superseded to 936-0414)

$

$

Not available

8

Cub Cadet 712-3004A

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 936-0133

Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

10

Cub Cadet 710-0604A

Flange Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

11

Cub Cadet 01001366

Hex Screw, 3/8-16 x 2.25

$

$

Not available

12

Cub Cadet 01001972

Hex Screw, 5/16-18 x 2.75

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01008410P

Rod End, 5/16
(Superseded to 723-04039)

$60.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01008801

Rivet, 1/4 x .625

$

$

Not available

15

Cub Cadet 02003163

Flange Bearing, .752 x 1.25 x .305

$

$

Not available

16

Cub Cadet 02003309

Socket Head Screw, 3/8-16 x .88

$

$

Not available

17

Cub Cadet 02003377

Ball Bearing, .25 x .625 x .196

$27.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02003379

Shoulder Spacer, .251 x 1.00 x .06

$

$

Not available

19

Cub Cadet 02005054

Spacer, .381 x .750 x .040

$17.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02005055

Spacer, .381 x .75 x .150

$15.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02005056

Spacer, .381 x .750 x .312

$22.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02005057

Spacer, .256 x .500 x .330

$

$

Not available

23

Cub Cadet 02005290

LH Speed Control Cam Assembly

$381.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005291

RH Speed Control Cam Assembly

$351.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02005292

LH Steering Pivot Assembly

$

$

Not available

26

Cub Cadet 02005293

RH Steering Pivot Assembly

$

$

Not available

27

Cub Cadet 02005463

Control Link Plate

$40.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02005468

Front Steering Pivot Assembly

$

$

Not available

29

Cub Cadet 02005482

Steering Pivot Mount Plate

$

$

Not available

30

Cub Cadet 02005483

Spacer, .385 x .750 x 1.28

$

$

Not available

31

Cub Cadet 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 603-04618

LH Control Rod Assembly

$

$

Not available

33

Cub Cadet 603-04619

RH Control Rod Assembly

$88.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 680-00115

Pump Control Arm Assembly

$

$

Not available

35

Cub Cadet 680-00116

RH Pump Control Arm Assembly

$

$

Not available

36

Cub Cadet 680-00118

Pump Control Spacer Assembly

$

$

Not available

37

Cub Cadet 710-05131

Hex Screw, 5/16-24 x 2.00

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-3025

Hex Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 7

0

42

Cub Cadet 712-3025

Jam Nut, 5/16-24

$7.99

$

Usually ships in 3-6 days

0
