S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Engine Accessories Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

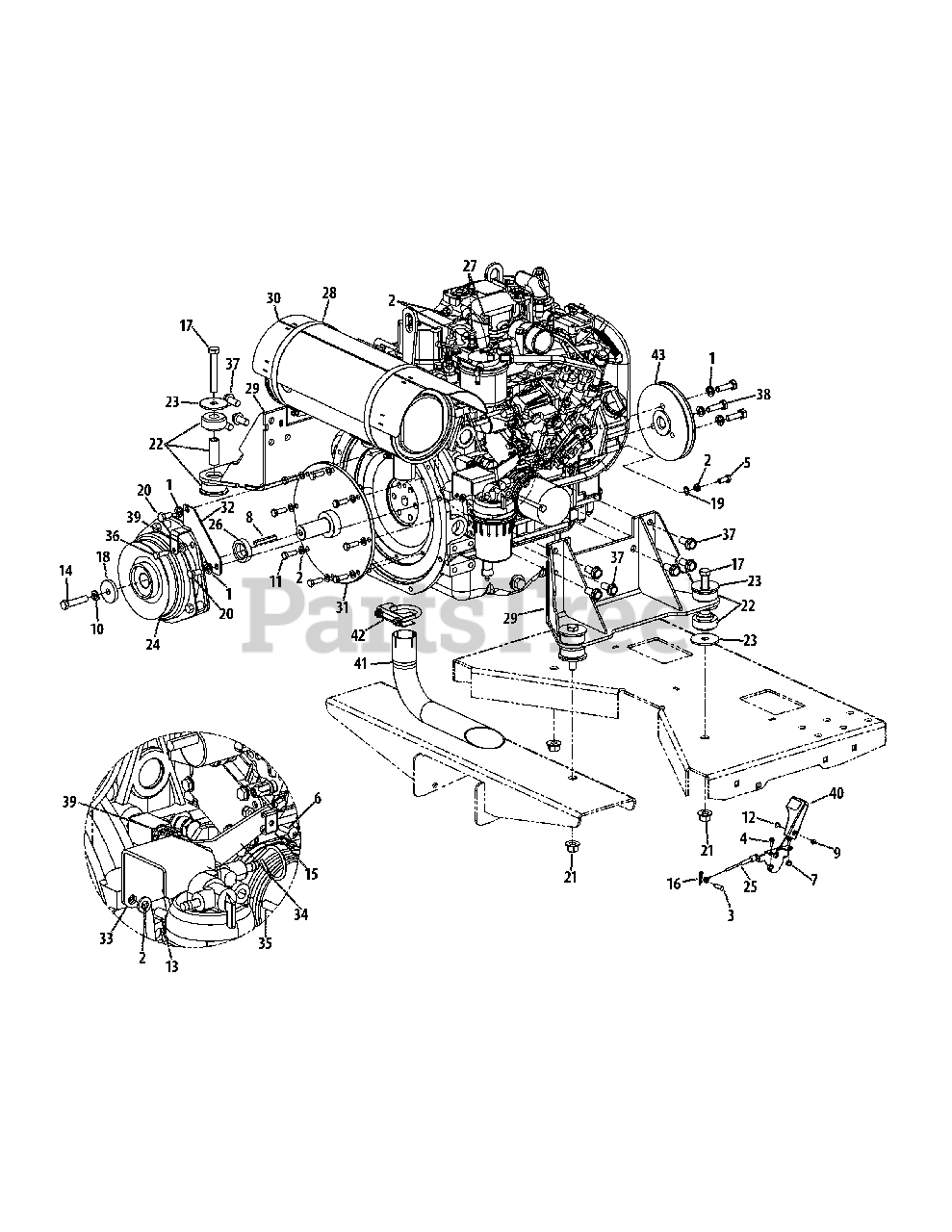

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 00012062

Washer, 10 x 17.8 x 3.6

$

$

Not available

2

Cub Cadet 00012168

Lock Washer, .312 x .583 x .083

$

$

Not available

3

Cub Cadet 00012609

Clevis Pin, 1/4 x .750

$

$

Not available

4

Cub Cadet 00013669

Hex Flange Screw, #10-32 x .500

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00014517

Hex Screw, M8-1.25 x 18

$

$

Not available

6

Cub Cadet 00014602

Machine Screw, #10-32 x .750

$

$

Not available

7

Cub Cadet 00014608

Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

Cub Cadet 00021517

Key, .250 x .250 x 2.00

$8.99

$

In Stock, only 1 left!

0

9

Cub Cadet 00060056

Nut, #8-32

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 936-0171

Lock Washer, .490 x .776 x .114
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3206A

Hex Screw, M8-1.25 x 25

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet 710-3217

Machine Screw, #8-32 x .356

$6.99

$

In Stock, Qty 10

0

13

Cub Cadet 01000981

Hex Screw, M8-1.25 x 20

$

$

Not available

14

Cub Cadet 01001082

Hex Screw, 7/16-20 x 2.00

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751B213146

Cable Throttle Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet 914-0104

Hair Pin, 1/8 x 1.125 x .072
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 01003113

Hex Screw, 1/2-13 x 3.25

$

$

Not available

18

Cub Cadet 736-04131

Washer, .438 x 1.745 x .250

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01005851

External Tooth Washer
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 12

0

20

Cub Cadet 01009616

Hex Screw, M10-1.5 x 20

$

$

Not available

21

Cub Cadet 01010119

Flange Top Lock Nut, 1/2-13

$7.49

$

In Stock, only 2 left!

0

22

Cub Cadet 02001035

Engine Isolater

$90.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02001098

Washer, .53 x 2.13 x .134

$

$

Not available

24

Cub Cadet 02001113P

Clutch

$1067.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02001133P

Throttle Control Cable

$

$

Not available

26

Cub Cadet 02002158

Spacer, 1.14 x 1.75 x .438

$23.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02002402

Hex Screw, M8-1.25 x 30

$

$

Not available

28

Cub Cadet 02002425

Hose Clamp

$

$

Not available

29

Cub Cadet 680-00062-0637

Engine Bracket

$

$

Not available

30

Cub Cadet 680-00109-0637

Muffler Heat Shield

$

$

Not available

31

Cub Cadet 680-00122

Clutch Drive Shaft

$282.99

$

In Stock, only 1 left!

0

32

Cub Cadet 703-07329-0637

Clutch Retainer Bracket

$32.99

$

In Stock, only 1 left!

0

33

Cub Cadet 680-00214-0637

Diesel Fuel Seperator Mount Bracket

$41.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 703-07396-0637

Throttle Mount Bracket

$

$

Not available

35

Cub Cadet 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 16

0

37

Cub Cadet 710-05079

Hex Flange Screw, M12-1.75 x 25

$

$

Not available

38

Cub Cadet 710-1313

Hex Screw, M10-1.5 x 35

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

In Stock, only 3 left!

0

41

Cub Cadet 751-11143

Elbow Exhaust Pipe

$

$

Not available

42

Cub Cadet 751-11265

Muffler Clamp

$

$

Not available

43

Cub Cadet 756-04402

Transmission Drive Pulley

$

$

Not available
