S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Frame Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

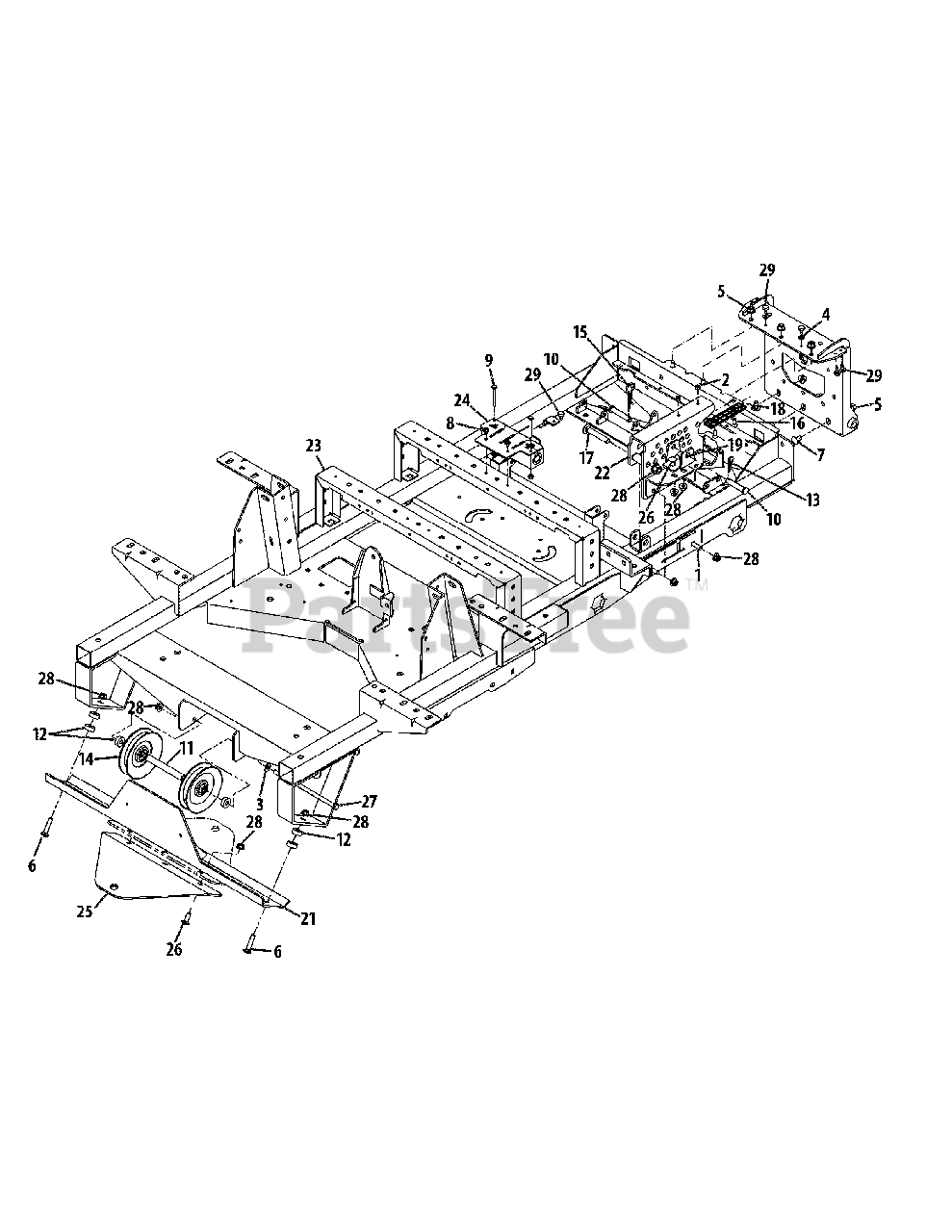

Frame Parts Diagram

  • Title

1

Cub Cadet 00005765

Carriage Bolt, 3/8-16 x 1.25

$

$

Not available

2

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012169

Washer, .344 x .688 x .063

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0560

Carriage Bolt, 3/8-18 x 1.75

$7.49

$

In Stock, Qty 11

0

7

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0641

Hex Screw, 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 711-0761

Clevis Pin, 1/2 x 2.500

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 750-05474

Spacer, .385 x .750 x 4.89

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 750-3119

Spacer, .406 x 1.00 x .38

$12.99

$

In Stock, only 2 left!

0

13

Cub Cadet 02000673

Hair Pin, 1/2 x 1.625 x .125
(Superseded to 914-0209)

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 956-3045

Idler Pulley
(Superseded to 956-3045A)

$60.99

$

In Stock, Qty 20+

0

15

Cub Cadet 02003074

Hitch Pin, .120 x 3.00

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02003505

Flat Head Screw, 1/4-20 x .750

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 02003563

Carriage Bolt, 1/2-13 x 3.00

$

$

Not available

18

Cub Cadet 02003749

Wear Plate, 1.125 x 5.0

$35.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02005357-0637

Cylinder Mount Bracket

$

$

Not available

20

Cub Cadet 603-04668-0637

Front Axle Bracket Assembly

$186.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 680-00065-0637

Inner Guards Bracket Assembly

$

$

Not available

22

Cub Cadet 680-00094-0637

Lift Index Housing Assembly

$

$

Not available

23

Cub Cadet 680-00124-0637

Main Frame

$

$

Not available

24

Cub Cadet 703-07098-0637

Manifold Mount Bracket

$

$

Not available

25

Cub Cadet 703-07204-0637

Hitch Bracket

$

$

Not available

26

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3248

Hex Screw, 3/8-16 x 8.50

$21.99

$

In Stock, only 3 left!

0

28

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 935-0199A

Rubber Bumper, .62 x .22
(Superseded to 735-0199A)

$8.49

$

In Stock, Qty 18

0
