S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Front Axle Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

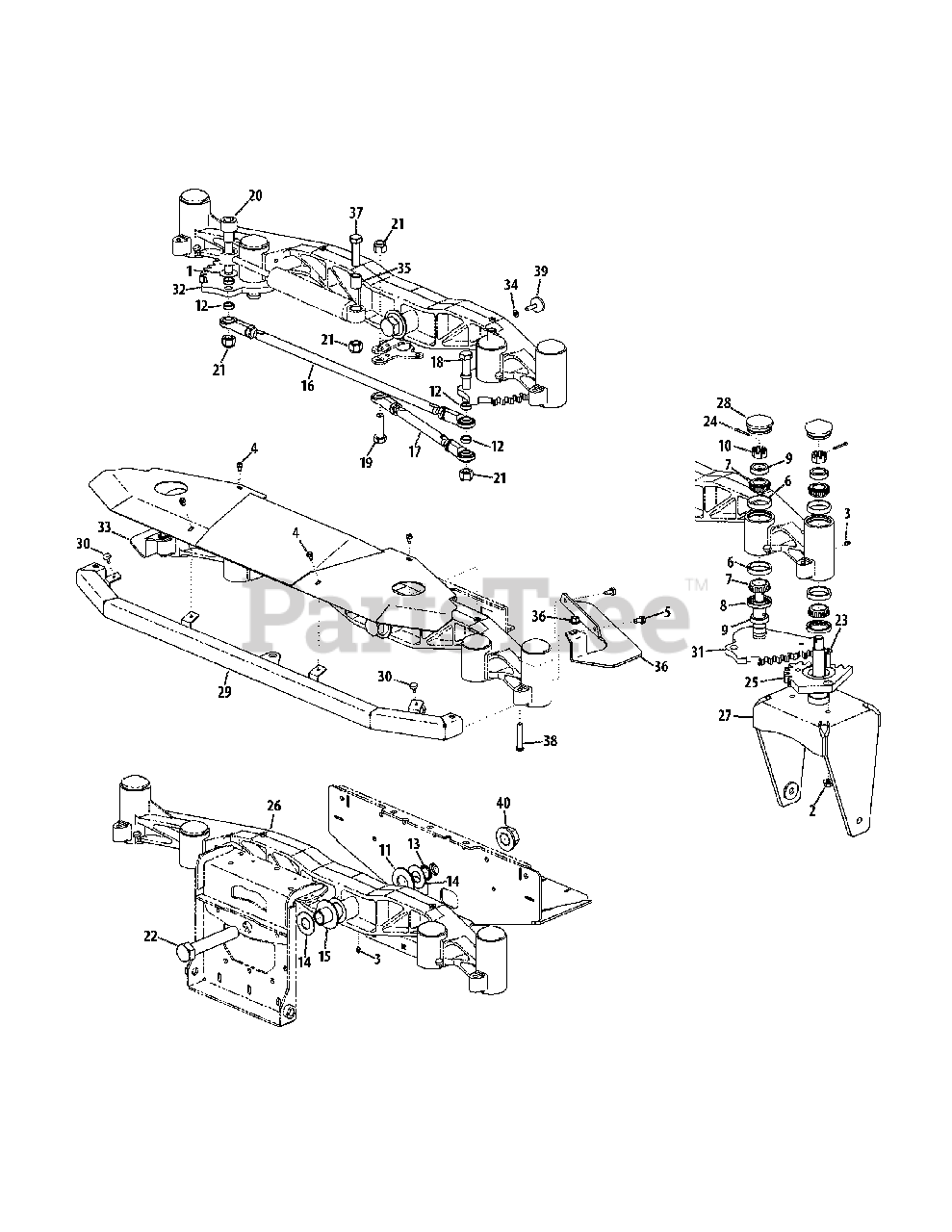

Front Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 00002766

Washer, .655 x 1.5 x .055

$3.49

$

In Stock, only 3 left!

0

2

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0604A

Flange Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

6

Cub Cadet 01002620

Bearing Cup, L44610
(Superseded to 741-04548)

$9.49

$

In Stock, only 4 left!

0

7

Cub Cadet 01002621

Cone Bearing, L44643
(Superseded to 741-04549)

$20.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01002622

Seal, 14858
(Superseded to 721-04462)

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01002624

Seal Ring
(Superseded to 750-05600)

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 712-0359

Slot Nut, 3/4-16

$12.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01006294

Bell Washer, 1.25 x 2.50 x .180
(Superseded to 736-04604)

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01008404P

Spacer, .635 x .880 x .312

$16.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01009997

Self-Lock External Retainer
(Superseded to 716-04191)

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 02000588

Washer, 1.00 x 2.00 x .075
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 02000589

Spacer, 1.00 x 1.25 x 3.47

$33.99

$

In Stock, only 2 left!

0

16

Cub Cadet 02003187

Tie Rod Assembly, 1/2-20 x 28

$

$

Not available

17

Cub Cadet 02003217

Tie Rod Assembly, 5/8-18 x 14

$

$

Not available

18

Cub Cadet 02003220

Hex Screw, 5/8-11 x 4.00

$

$

Not available

19

Cub Cadet 02003222

Hex Screw, 5/8-11 x 1.75

$

$

Not available

20

Cub Cadet 02003357

Shoulder Bolt, .872 x 1.030 x 2.88

$

$

Not available

21

Cub Cadet 712-3016

Hex Lock Nut, 5/8-11

$7.49

$

In Stock, Qty 14

0

22

Cub Cadet 02003804

Hex Screw, 1-14 x 5.5
(Superseded to 710-06026)

$49.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02005073

Hex Screw, 3/8-16 x 1.50

$

$

Not available

24

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 717-04729

Yoke Steering Gear

$

$

Not available

26

Cub Cadet 719-04517

Axle

$

$

Not available

27

Cub Cadet 603-04645A-0637

Yoke Assembly

$823.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-07348

Axle Grease Cap

$9.49

$

In Stock, Qty 8

0

29

Cub Cadet 680-00072-0637

Axle Bumper Assembly

$

$

Not available

30

Cub Cadet 935-0199A

Rubber Bumper, .62 x .22
(Superseded to 735-0199A)

$8.49

$

In Stock, Qty 18

0

31

Cub Cadet 680-00074

LH Steering Gear Assembly

$349.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 680-00075

RH Steering Gear Assembly

$

$

Not available

33

Cub Cadet 703-07259

RH Gear Cover Plate

Variations

Cub Cadet 703-07259-0637

PLATE - RH GEAR CO - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-05335

Spacer, .635 x .875 x 1.031

$

$

Not available

36

Cub Cadet 703-07471

LH Gear Cover Plate

Variations

Cub Cadet 703-07471-0637

PLATE- LH GEAR COV - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 710-05000

Hex Screw, 5/8-11 x 2.25

$3.49

$

In Stock, only 2 left!

0

38

Cub Cadet 710-05066

Screw, 3/8-16 x 2.25

$

$

Not available

39

Cub Cadet 710-05068

Adjustable Skid Shoe

$

$

Not available

40

Cub Cadet 712-04191

Flange Top Lock Nut, 1.0-14

$3.99

$

Usually ships in 3-6 days

0
