S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Fuel Tank Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

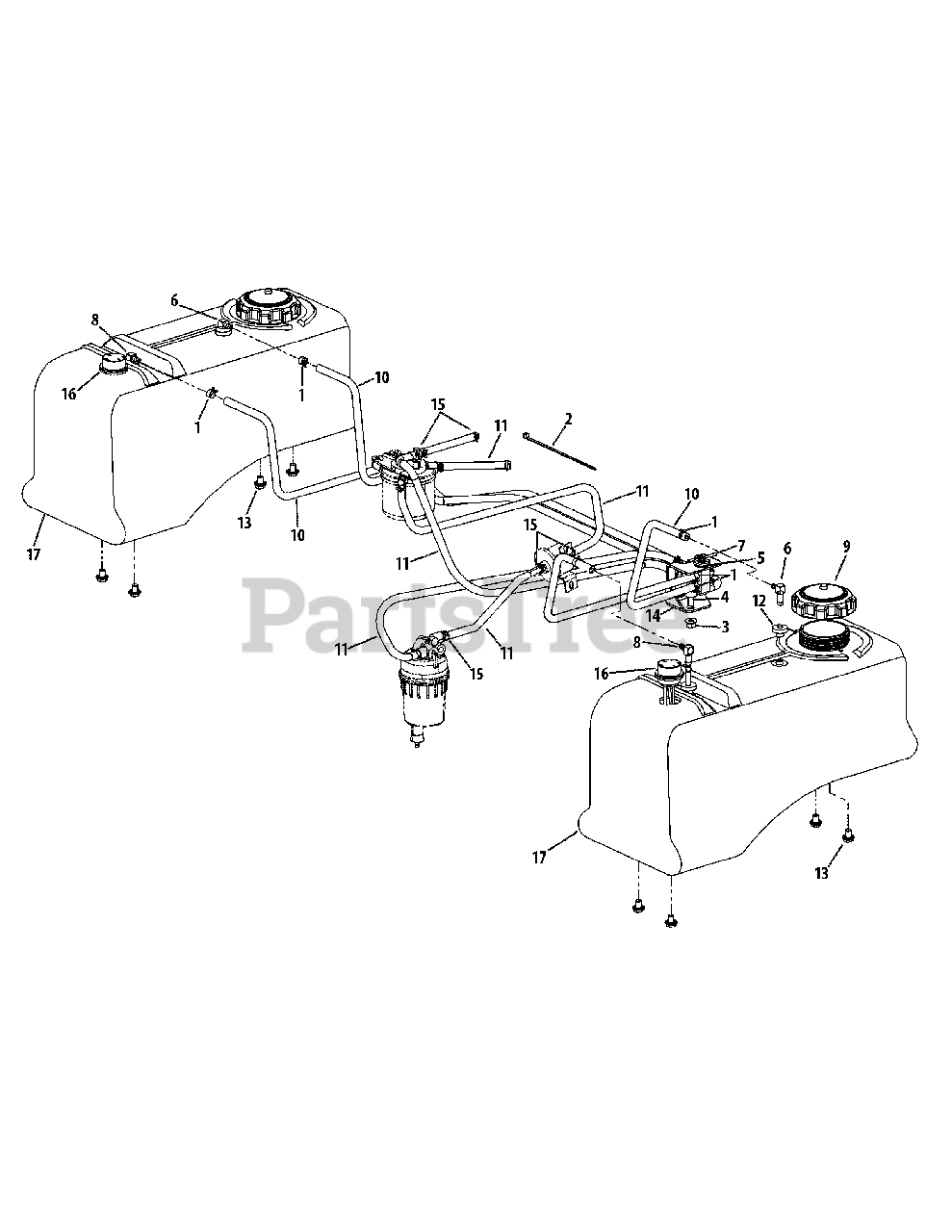

Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 00012235

Hose Clamp
(Superseded to 726-04123A)

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01004340

Washer, .675 x 1.05 x .048

$

$

Not available

6

Cub Cadet 01009809P

Fuel Tank Elbow, 1/4

$48.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01009812

Fuel Valve

$182.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01009821P

Fuel Pick-Up Fitting Valve
(Superseded to 751-11986B)

$

$

Not available

9

Cub Cadet 02001081

Diesel Fuel Cap

$

$

Not available

10

Cub Cadet 02001911-5

Fuel Hose, 1/4

$

$

Not available

11

Cub Cadet 02002004-3

Fuel Hose, 5/16

$

$

Not available

12

Cub Cadet 02002253

Fuel Tank Grommet

$5.49

$

In Stock, Qty 15

0

13

Cub Cadet 02005013

Hex Flange Screw, 3/8-16 x .500
(Superseded to 710-05412)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 680-00086-0637

Fuel Valve Bracket

$

$

Not available

15

Cub Cadet 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 15

0

16

Cub Cadet 751-11322

Fuel Gauge

$

$

Not available

17

Cub Cadet 751-11325

Fuel Tank w/ Gauge

$

$

Not available
