S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Hood & Bumper Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

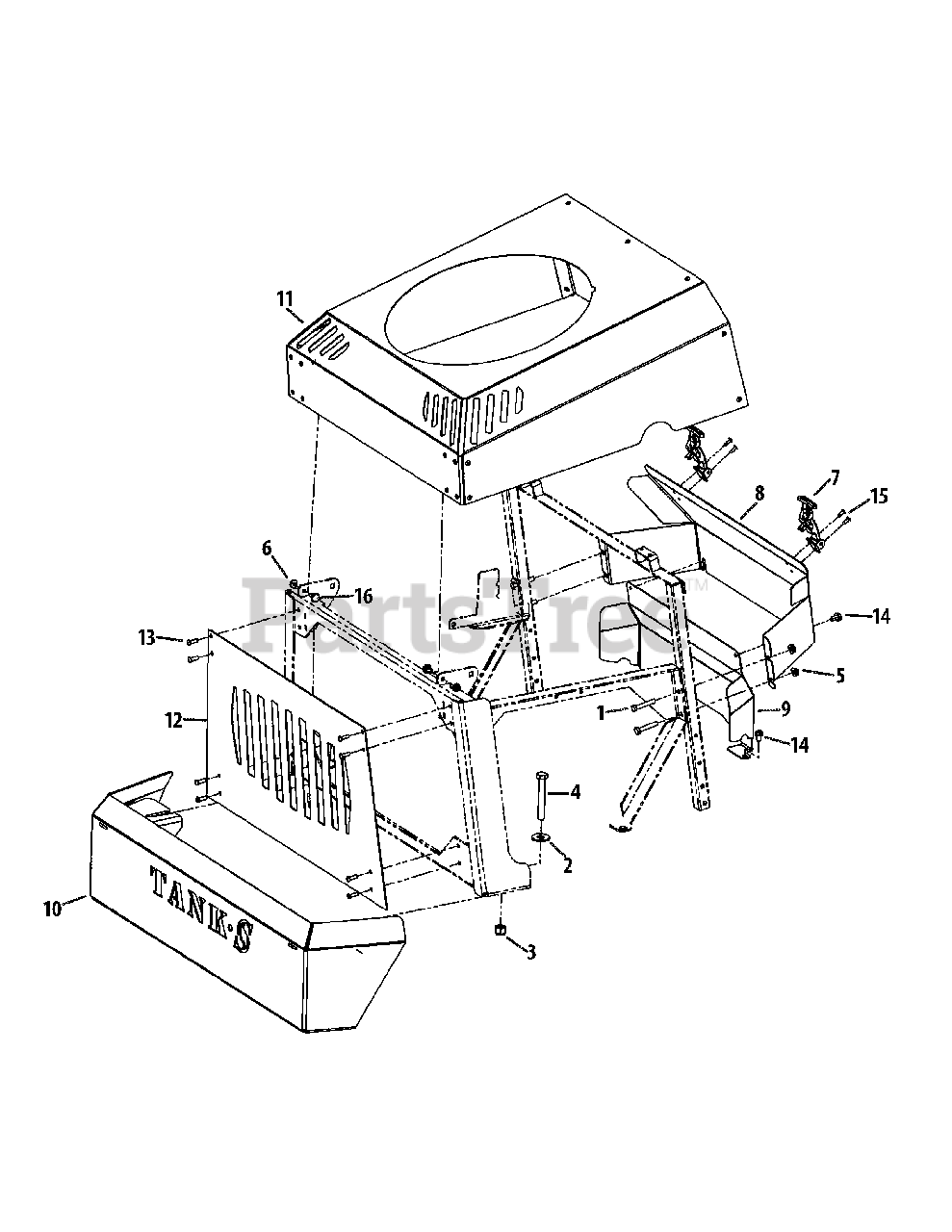

Hood & Bumper Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Screw, 5/16-18 x 1.75

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00011459

Washer, .563 x 1.38 x .109

$

$

Not available

3

Cub Cadet 00012428

Nut, 1/2-13

$7.49

$

In Stock, only 2 left!

0

4

Cub Cadet 01000226

Hex Screw, 1/2-13 x 3.50

$

$

Not available

5

Cub Cadet 712-3004A

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 912-3027

Flange Top Luck Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

Cub Cadet 01005869P

T-Handle Draw Latch
(Superseded to 935-04038)

$16.99

$

In Stock, only 4 left!

0

8

Cub Cadet 680-00101-0637

Top Guard Plate

$

$

Not available

9

Cub Cadet 680-00102-0637

Front Bottom Guard Plate

$

$

Not available

10

Cub Cadet 680-00125-4021

Bumper Assembly

$

$

Not available

11

Cub Cadet 680-00134-4021

Hood Assembly

$

$

Not available

12

Cub Cadet 703-07722-4021

Engine Cover

$

$

Not available

13

Cub Cadet 710-0924

Machine Screw, 1/4-20 x 0.750

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x 0.625

$4.99

$

In Stock, Qty 8

0

15

Cub Cadet 728-04033

Rivet, 3/16

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 938-0255

Shoulder Screw, .375 x .181

$5.49

$

In Stock, only 2 left!

0
