S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Yanmar 3TNV82A-BDCB Cylinder Block Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

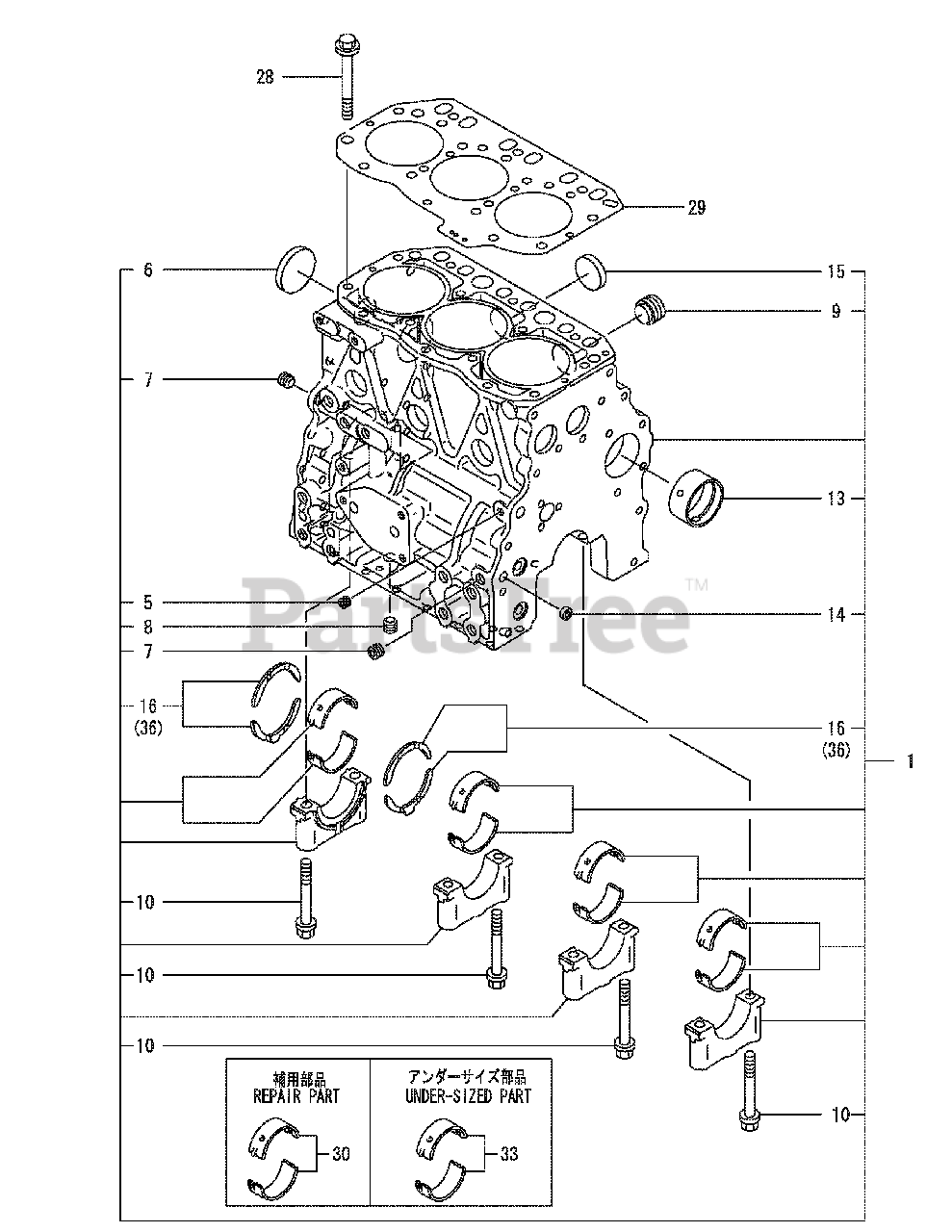

Yanmar 3TNV82A-BDCB Cylinder Block Parts Diagram

  • Title

1

Cub Cadet YA-719802-01560

Cylinder Block Assembly

$

$

Not available

5

Cub Cadet YA-124060-01050

Plug, 1.8

$2.49

$

Usually ships in 3-6 days

0

6

Cub Cadet YA-129001-01250

Plug, 50

$

$

Not available

7

Cub Cadet YA-124160-01910

Plug, 1.4

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet YA-124160-01910

Plug, 1.4

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet YA-171051-01921

Plug

$

$

Not available

10

Cub Cadet YA-119620-02020

Metal Cap Bolt

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet YA-129795-02412

Camshaft Bushing

$

$

Not available

14

Cub Cadet YA-27241-120000

Plug, 12

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet YA-27243-300000

Plug, 30

$

$

Not available

16

Cub Cadet YA-119717-02930

Thrust Bearing

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet YA-119810-01200

Cylinder Head Bolt

$

$

Not available

29

Cub Cadet YA-119812-01330

Head Gasket

$174.99

$

In Stock, only 1 left!

0

30

Cub Cadet YA-719810-02981

Main Bearing Assembly

$

$

Not available

33

Cub Cadet YA-119810-02871

Main Bearing, .25

$

$

Not available

36

Cub Cadet YA-119810-02941

Thrust Bearing, .25

$48.99

$

Usually ships in 3-6 days

0
