SD 48 (967027301) - Husqvarna 48" Mower Deck Assembly (2019-01) 48"/122CM CUTTING DECK 2 Parts Diagram

48" Mower Deck Assembly

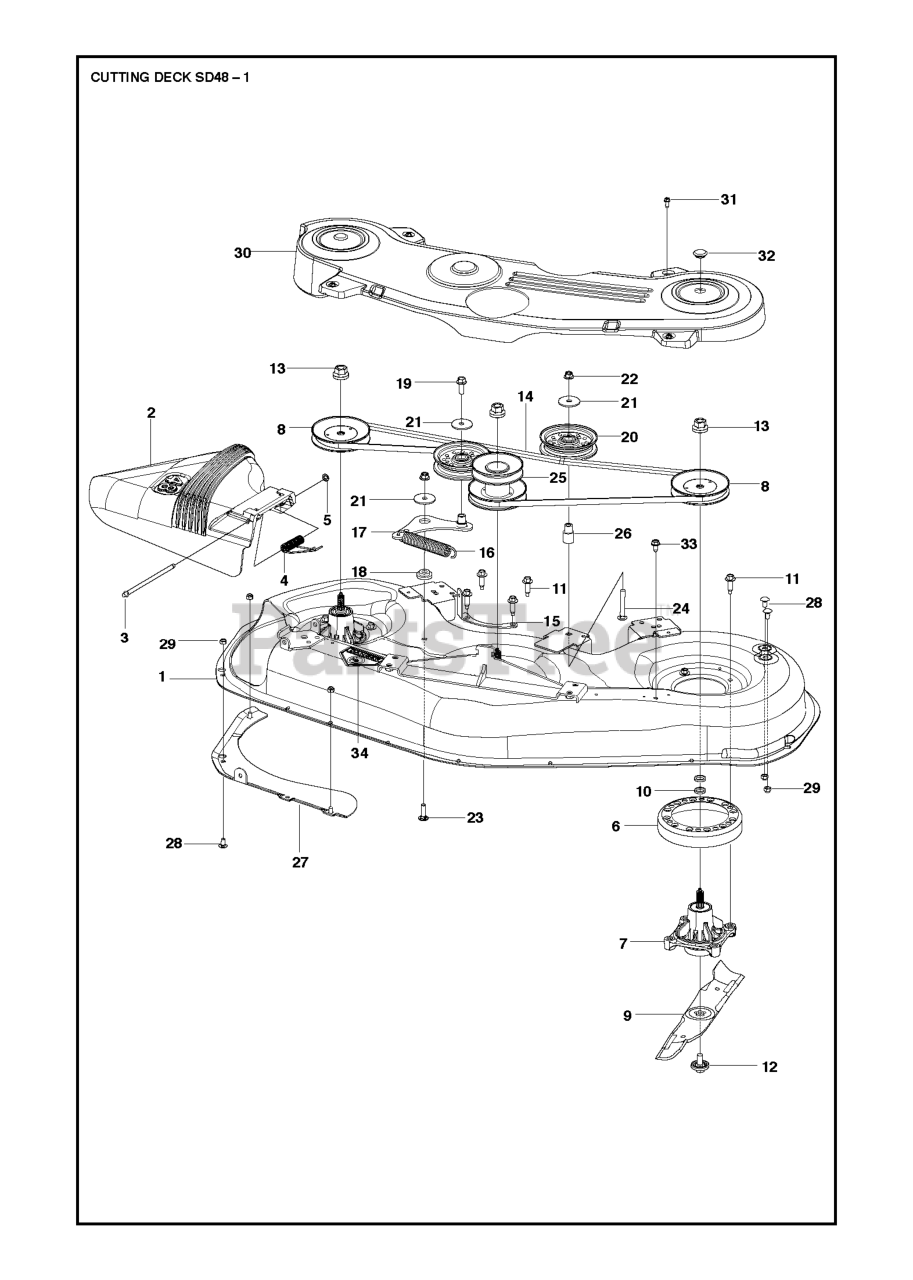

48"/122CM CUTTING DECK 2 Parts Diagram

  • Title

23

Husqvarna 72140610

Carriage Bolt 3/8-16 x 1-1/4

$

$

Not available

3

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

34

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 578415302

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

$10.99

$

In Stock, Qty 20+

0

24

Husqvarna 72140620

Bolt, Carriage 3/8-16 x 2-1/2
(Superseded to 872140620)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 578977302

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532174356

MANDREL ASM
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0

33

Husqvarna 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

12

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

25

Husqvarna 578431001

RP PULLEY.ASSY.STACKED
(Superseded to 588586301)

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

9

Husqvarna 532180054

48" HI-LIFT BLADE

$15.99

$

In Stock, Qty 20+

0

11

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 532180213

V-BELT.MOWER.

$78.99

$

In Stock, only 1 left!

0

2

Husqvarna 532180655

DEFLECTOR.ASM.BLACK.48"

$42.99

$

In Stock, Qty 20+

0

15

Husqvarna 578935502

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 579444601

SPRING.TENSION

$13.99

$

Usually ships in 3-10 days

0

30

Husqvarna 579297001

SHIELD.BELT.48".STAMPED

$454.99

$

Usually ships in 3-10 days

0

28

Husqvarna 72110505

Bolt, Carriage 5/16-18 x 5/8

$

$

Not available

26

Husqvarna 579405901

BUSHING.FLANGE

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532174378

BAFFLE, VORTEX MWR

$14.99

$

In Stock, Qty 19

0

18

Husqvarna 578415501

BUSHING.FLANGE..405

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 579470801

PLUG.HOLE.MANDREL.COVER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 73800500

Nut, Hex, with Lockwasher Insert 5/16-18

$

$

Not available

6

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0
