SH255-3101 - Kohler SH Series Engine, Made for Jiangmeng Baodeli, 5.5hp, 4.2kW Crankcase Parts Diagram

SH Series Engine, Made for Jiangmeng Baodeli, 5.5hp, 4.2kW

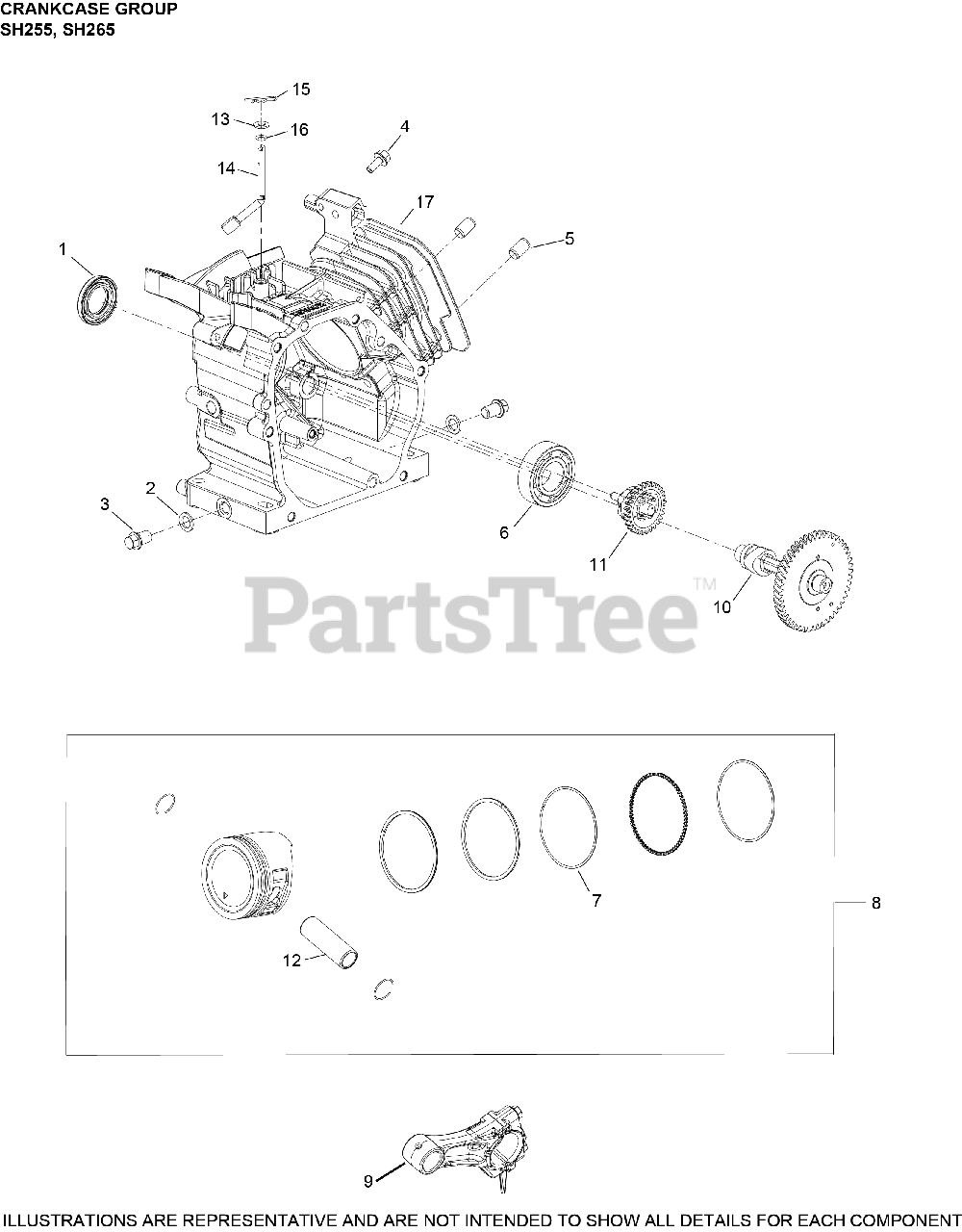

Crankcase Parts Diagram

  • Title

1

Kohler 17 032 20-S

SEAL- USE 17 032 29-S
(Superseded to 17 032 29-S)

$7.99

$

Usually ships in 2-5 days

0

2

Kohler 18 468 01-S

WASHER, DRAIN PLUG

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 17 139 01-S

KIT, DRAIN PLUG

$3.49

$

Usually ships in 2-5 days

0

5

Kohler 14 380 06-S

DOWEL, CYLINDER HEAD-(#1438013S)
(Superseded to 14 380 13-S)

$1.99

$

Usually ships in 2-5 days

0

6

Kohler 17 030 12-S

BEARING, BALL

$32.99

$

Usually ships in 2-5 days

0

7

Kohler 18 108 03-S

RING SET

$33.99

$

In Stock, only 1 left!

0

8

Kohler 18 874 02-S

KIT, PISTON (STD)

$72.99

$

Usually ships in 2-5 days

0

9

Kohler 17 067 01-S

ROD, CONNECTING ASSEMBLY

$44.99

$

Usually ships in 2-5 days

0

10

Kohler 18 010 06-S

CAMSHAFT

$67.99

$

In Stock, only 1 left!

0

12

Kohler 14 380 04-S

PIN, PISTON

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 14 468 07-S

WASHER, FLAT (DIA 13MM O.D.)
(Superseded to 14 468 30-S)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 18 144 02-S

CROSS SHAFT

$5.49

$

Usually ships in 2-5 days

0

15

Kohler 14 154 01-S

CLIP, GOVERNOR SHAFT

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 18 032 07-S

SEAL

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 18 561 06-S

CRANKCASE
(Superseded to 17 561 47-S)

$177.99

$

Usually ships in 2-5 days

0
