SRM-200 BE - Echo String Trimmer Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

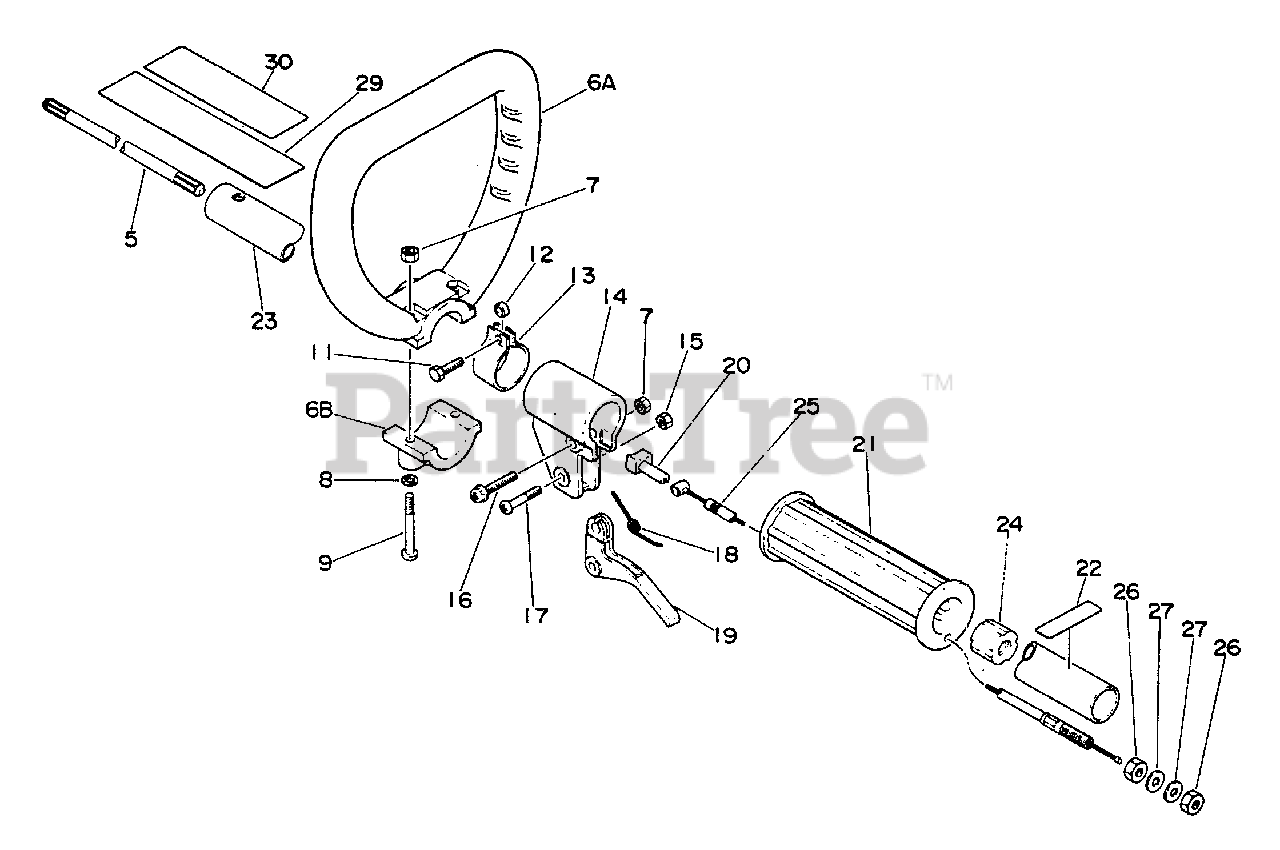

Driveshaft, Handles, Throttle Parts Diagram

  • Title

5

Echo 61001108930

DRIVESHAFT

$61.99

$

Usually ships in 2-4 days

0

6

Echo 351201-08930

LOOP HANDLE ASSY

Note: Includes items 7 thru 9

$45.99

$

Usually ships in 2-4 days

0

6A

Echo 351201-08930

LOOP HANDLE ASSY

Note: See Ref No. 6, Handle set, P/N 35120108930

$45.99

$

Usually ships in 2-4 days

0

6B

Echo 351201-08930

LOOP HANDLE ASSY

Note: See Ref No. 6, Handle set, P\N 35120108930

$45.99

$

Usually ships in 2-4 days

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

11

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

12

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

13

Echo 301207-08930

HOOK

$5.99

$

Usually ships in 2-4 days

0

14

Echo 17802408930

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

15

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

16

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

17

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

18

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

19

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, Qty 5

0

20

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

21

Echo 35101208930

GRIP
(Superseded to Discontinued)

$

$

Not available

22

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

23

Echo 61020608930

MAIN PIPE ASSY
(Superseded to 61020622830)

Note: Includes ITEM 24

$

$

Not available

24

Echo 61010508930

STOPPER
(Superseded to Discontinued)

$

$

Not available

25

Echo 17800108931

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

26

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

27

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

29

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$4.49

$

Usually ships in 2-4 days

0

30

Echo 89017709130

LABEL

$1.49

$

Usually ships in 2-4 days

0
