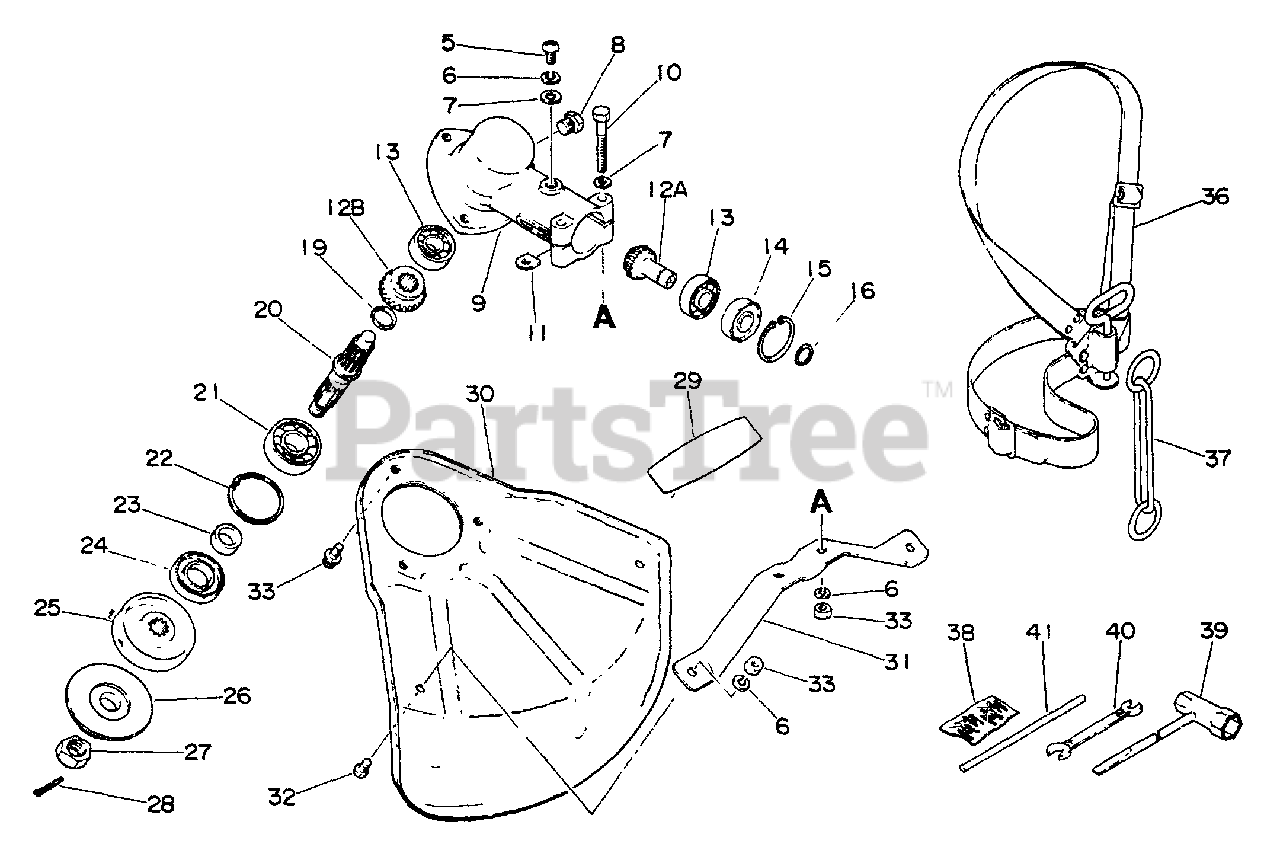

  • Title

Echo 61040208932

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Consists of items 5 thru 28

$

$

Not available

5

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

9

Echo 61046008930

CASE, GEAR
(Superseded to 61046008931)

$

$

Not available

10

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

11

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

12

Echo 61030108930

GEAR SET

$155.99

$

Usually ships in 2-4 days

0

12A

Echo 61030108930

GEAR SET

Note: See Ref No. 12, Gear set, P/N 61030108930

$155.99

$

Usually ships in 2-4 days

0

12B

Echo 61030108930

GEAR SET

Note: See Ref No. 12, Gear set, P/N 61030108930

$155.99

$

Usually ships in 2-4 days

0

13

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

14

Echo 90080300609

BEARING, BALL 609

$19.99

$

Usually ships in 2-4 days

0

15

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

16

Echo 61033708930

RING, RETAINING
(Superseded to 90070600009)

$1.49

$

In Stock, Qty 17

0

19

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 20+

0

20

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

21

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

22

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

23

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

24

Echo 16041307130

SEAL, OIL
(Superseded to 61041307130)

$6.99

$

In Stock, only 1 left!

0

25

Echo 61033808930

PLATE, ADAPTER - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 16

0

26

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

27

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

28

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

29

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

30

Echo 69900020330

SHIELD ASSY
(Superseded to Discontinued)

Note: Includes items 6, 31 thru 33

$

$

Not available

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

31

Echo 69901523431

BRACKET, SHIELD MOUNTING

$12.99

$

Usually ships in 2-4 days

0

32

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

33

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

36

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

Note: Includes item 37

$98.99

$

Usually ships in 2-4 days

0

37

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

38

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

39

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

40

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

41

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

Echo 69600108330

BLADE - 8 TOOTH
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

Echo 69500108330

SAW, CIRCULAR

Note: OPTIONAL

$

$

Currently unavailable
