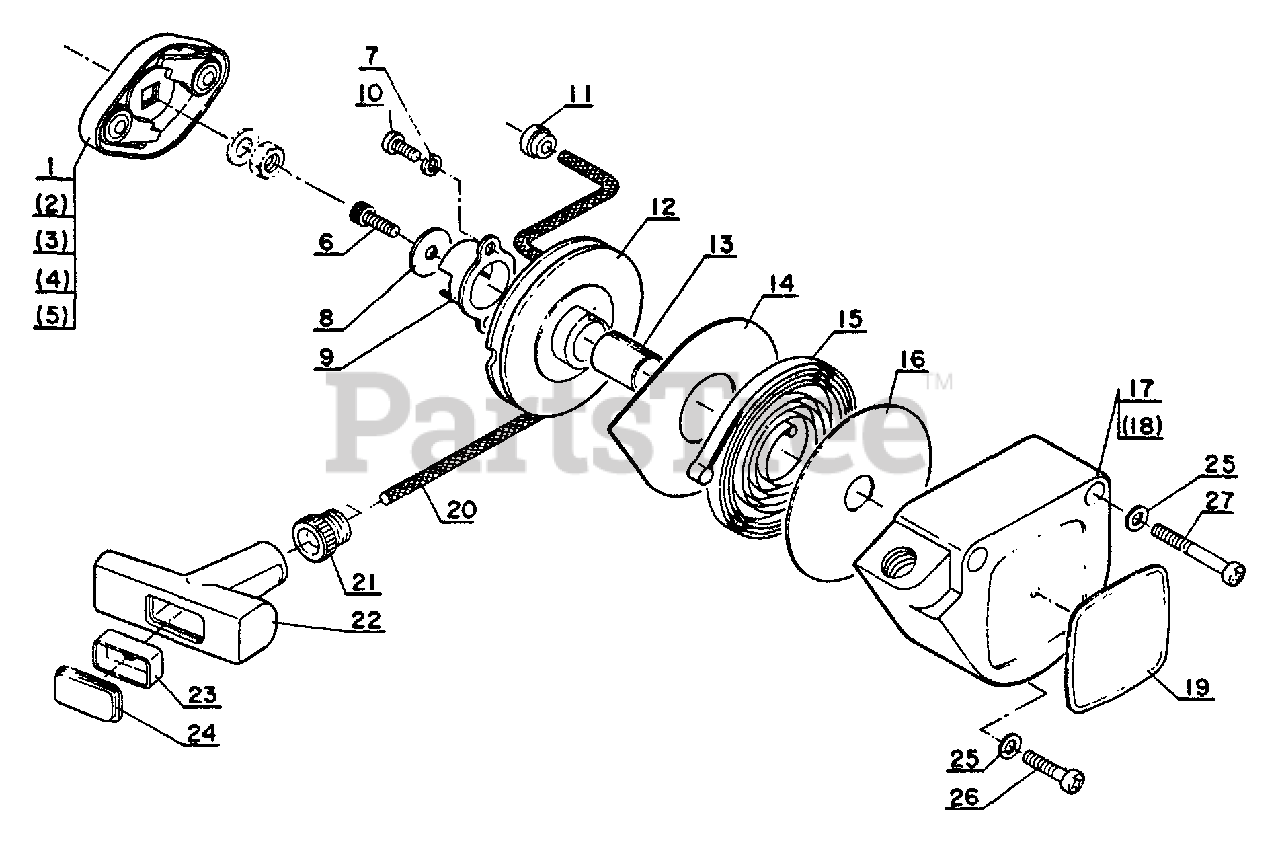

SRM-302 ADX - Echo String Trimmer Starter Parts Diagram

String Trimmer

Starter Parts Diagram

  • Title

1

Echo 17730504130

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available

Echo 17720004930

STARTER ASSY
(Superseded to 17720004931)

$

$

Not available

2

------------------

N/A

$

$

Not available

3

------------------

N/A

$

$

Not available

4

------------------

N/A

$

$

Not available

5

------------------

N/A

$

$

Not available

6

Echo 90010504012

SCREW - 4X12

$1.49

$

Usually ships in 2-4 days

0

7

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 13

0

9

Echo 17724304130

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

10

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

11

Echo 17724603930

RETAINER, ROPE

$0.99

$

In Stock, only 2 left!

0

12

Echo 17721504130

REEL, ROPE

$21.99

$

Usually ships in 2-4 days

0

13

Echo 17721603930

BUSHING
(Superseded to Discontinued)

$

$

Not available

14

Echo 17724203930

PLATE, STARTER

$3.99

$

Usually ships in 2-4 days

0

15

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, Qty 5

0

16

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

17

Echo 17720904930

CASE, STARTER
(Superseded to 17720904931)

$

$

Not available

18

------------------

N/A

$

$

Not available

19

Echo 89005306631

NAME PLATE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 9

0

21

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

22

Echo 17722804630

GRIP, STARTER
(Superseded to 17722819830)

$4.99

$

Usually ships in 2-4 days

0

23

Echo 17722902830

RING, RETAINING

$1.99

$

Usually ships in 2-4 days

0

24

Echo 17724402830

CAP

$0.99

$

Usually ships in 2-4 days

0

25

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 13

0

26

Echo 90022004020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90022004035

SCREW - 4X35
(Superseded to Discontinued)

$

$

Not available
