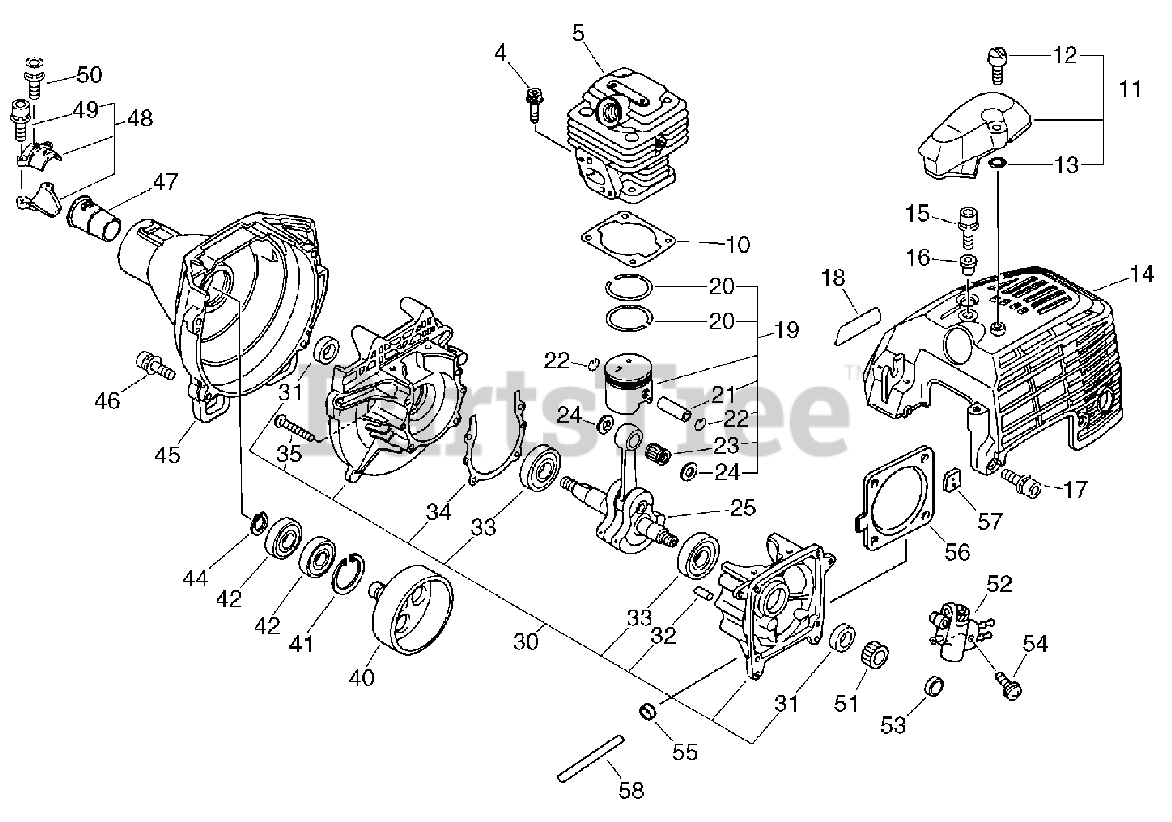

SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) Cylinder, Crankcase, Piston, Fan Cover(Sr/Nr 36003114 and after) Parts Diagram

String Trimmer

Cylinder, Crankcase, Piston, Fan Cover(Sr/Nr 36003114 and after) Parts Diagram

  • Title

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo A130000601

CYLINDER

$166.99

$

Usually ships in 2-4 days

0

5

Echo A130000601

CYLINDER

$166.99

$

Usually ships in 2-4 days

0

10

Echo 10101054430

GASKET, CYLINDER

$6.99

$

Usually ships in 2-4 days

0

10

Echo 10101054430

GASKET, CYLINDER

$6.99

$

Usually ships in 2-4 days

0

11

Echo 15990255230

GUARD KIT, TOP

$16.99

$

Usually ships in 2-4 days

0

11

Echo 15990255230

GUARD KIT, TOP

$16.99

$

Usually ships in 2-4 days

0

12

Echo 352325-55230

THUMBSCREW M5×15.5

$3.49

$

Usually ships in 2-4 days

0

12

Echo 352325-55230

THUMBSCREW M5×15.5

$3.49

$

Usually ships in 2-4 days

0

13

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

13

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

14

Echo 10151455630

COVER, ENGINE

$56.99

$

Usually ships in 2-4 days

0

14

Echo 10151455630

COVER, ENGINE

$56.99

$

Usually ships in 2-4 days

0

15

Echo 9111805020

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

15

Echo 9111805020

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10153155230

COLLAR

$4.49

$

Usually ships in 2-4 days

0

16

Echo 10153155230

COLLAR

$4.49

$

Usually ships in 2-4 days

0

17

Echo 9111805012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

17

Echo 9111805012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

18

Echo 89011264730

LABEL - MODEL

Note: Sus. by X547-001020

$

$

Currently unavailable

18

Echo 89011264730

LABEL - MODEL

Note: Sus. by X547-001020

$

$

Currently unavailable

18

Echo X547001020

LABEL, ECHO

$

$

Currently unavailable

18

Echo X547001020

LABEL, ECHO

$

$

Currently unavailable

19

Echo P021007410

PISTON KIT
(Superseded to P021015780)

$101.99

$

Usually ships in 2-4 days

0

20

Echo 10001142230

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

20

Echo 10001142230

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

21

Echo 10001327430

PIN, PISTON

$8.99

$

Usually ships in 2-4 days

0

21

Echo 10001327430

PIN, PISTON

$8.99

$

Usually ships in 2-4 days

0

22

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 11

0

22

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 11

0

23

Echo 10001216131

BEARING, NEEDLE 9

$13.99

$

In Stock, only 2 left!

0

23

Echo 10001216131

BEARING, NEEDLE 9

$13.99

$

In Stock, only 2 left!

0

24

Echo 10001453630

WASHER, THRUST

$6.99

$

Usually ships in 2-4 days

0

24

Echo 10001453630

WASHER, THRUST

$6.99

$

Usually ships in 2-4 days

0

25

Echo 10010056930

CRANKSHAFT ASSY

$

$

Currently unavailable

25

Echo 10010056930

CRANKSHAFT ASSY

$

$

Currently unavailable

30

Echo 10020456930

CRANKCASE KIT

$

$

Currently unavailable

30

Echo 10020456930

CRANKCASE KIT

$

$

Currently unavailable

31

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

31

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

32

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

32

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

33

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

33

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

34

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$4.99

$

Usually ships in 2-4 days

0

34

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$4.99

$

Usually ships in 2-4 days

0

35

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

35

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

40

Echo 17500549930

DRUM, CLUTCH

$74.99

$

Usually ships in 2-4 days

0

40

Echo 17500549930

DRUM, CLUTCH

$74.99

$

Usually ships in 2-4 days

0

41

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

41

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

42

Echo 90080706001

BEARING, BALL 6001

$13.99

$

In Stock, only 2 left!

0

42

Echo 90080706001

BEARING, BALL 6001

$13.99

$

In Stock, only 2 left!

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

45

Echo 10151155430

COVER, FAN

$

$

Currently unavailable

45

Echo 10151155430

COVER, FAN

$

$

Currently unavailable

46

Echo 9111805020

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

46

Echo 9111805020

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

47

Echo 61091051830

CUSHION 28

$12.99

$

In Stock, only 1 left!

0

47

Echo 61091051830

CUSHION 28

$12.99

$

In Stock, only 1 left!

0

48

Echo P021012800

HOLDER KIT

$21.99

$

Usually ships in 2-4 days

0

48

Echo P021012800

HOLDER KIT

$21.99

$

Usually ships in 2-4 days

0

49

Echo 9111805025

BOLT 5×25

$1.49

$

Usually ships in 2-4 days

0

49

Echo 9111805025

BOLT 5×25

$1.49

$

Usually ships in 2-4 days

0

50

Echo 9111805012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

50

Echo 9111805012

BOLT 5×12

$1.49

$

Usually ships in 2-4 days

0

51

Echo 43706350430

GEAR, WORM

$

$

Currently unavailable

51

Echo 43706350430

GEAR, WORM

$

$

Currently unavailable

52

Echo 43700249931

AUTO-OILER ASSY

$

$

Currently unavailable

52

Echo 43700249931

AUTO-OILER ASSY

$

$

Currently unavailable

53

Echo 10012750430

COLLAR 8

$

$

Currently unavailable

53

Echo 10012750430

COLLAR 8

$

$

Currently unavailable

54

Echo 90024004016

SCREW - 4×16

$

$

Currently unavailable

54

Echo 90024004016

SCREW - 4×16

$

$

Currently unavailable

55

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

55

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

56

Echo 10158656930

SPACER

$

$

Currently unavailable

56

Echo 10158656930

SPACER

$

$

Currently unavailable

57

Echo 43724356930

GROMMET

$

$

Currently unavailable

57

Echo 43724356930

GROMMET

$

$

Currently unavailable

58

Echo 13271734330

PIPE 2×4×115

$

$

Currently unavailable

58

Echo 13271734330

PIPE 2×4×115

$

$

Currently unavailable
