SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) Cylinder, Crankcase, Piston, Fan Cover(Sr/Nr 36003114 and after) Parts Diagram

String Trimmer

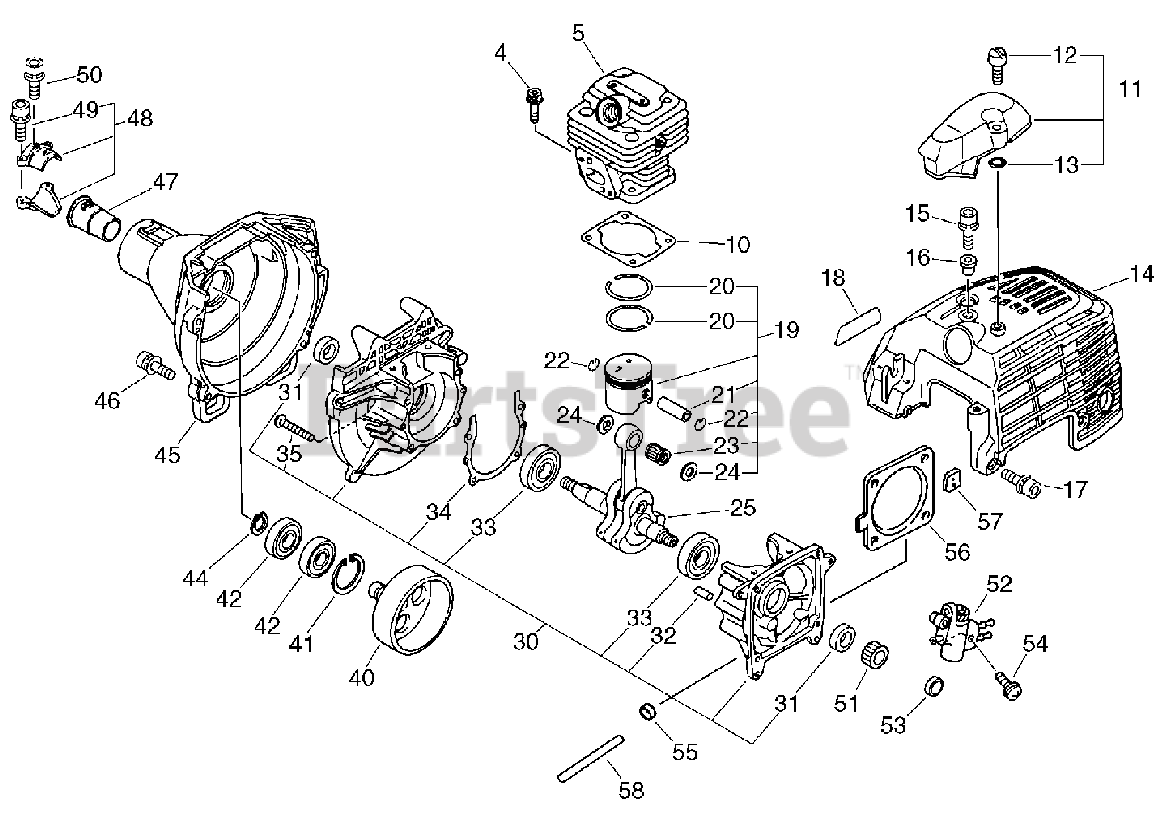

Cylinder, Crankcase, Piston, Fan Cover(Sr/Nr 36003114 and after) Parts Diagram

  • Title

4

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

5

Echo A130000601

CYLINDER

$166.99

$

Usually ships in 2-4 days

0

5

Echo A130000601

CYLINDER

$166.99

$

Usually ships in 2-4 days

0

10

Echo 10101054430

GASKET, CYLINDER

$6.99

$

Usually ships in 2-4 days

0

10

Echo 10101054430

GASKET, CYLINDER

$6.99

$

Usually ships in 2-4 days

0

11

Echo 15990255230

GUARD KIT

$16.99

$

Usually ships in 2-4 days

0

11

Echo 15990255230

GUARD KIT

$16.99

$

Usually ships in 2-4 days

0

12

Echo 352325-55230

KNOB, FASTENER

$3.49

$

Usually ships in 2-4 days

0

12

Echo 352325-55230

KNOB, FASTENER

$3.49

$

Usually ships in 2-4 days

0

13

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 13

0

13

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 13

0

14

Echo 10151455630

COVER, ENGINE

$56.99

$

Usually ships in 2-4 days

0

14

Echo 10151455630

COVER, ENGINE

$56.99

$

Usually ships in 2-4 days

0

15

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

15

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10153155230

COLLAR

$4.49

$

Usually ships in 2-4 days

0

16

Echo 10153155230

COLLAR

$4.49

$

Usually ships in 2-4 days

0

17

Echo 9111805012

SCREW - 5X12

$1.49

$

Usually ships in 2-4 days

0

17

Echo 9111805012

SCREW - 5X12

$1.49

$

Usually ships in 2-4 days

0

18

Echo 89011264730

LABEL - MODEL

Note: Sus. by X547-001020

$

$

Currently unavailable

18

Echo 89011264730

LABEL - MODEL

Note: Sus. by X547-001020

$

$

Currently unavailable

18

Echo X547001020

LABEL - ECHO

$

$

Currently unavailable

18

Echo X547001020

LABEL - ECHO

$

$

Currently unavailable

19

Echo P021007410

PISTON KIT
(Superseded to P021015780)

$101.99

$

Usually ships in 2-4 days

0

20

Echo 10001142230

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

20

Echo 10001142230

RING, PISTON

$11.99

$

Usually ships in 2-4 days

0

21

Echo 10001327430

PIN, PISTON

$8.99

$

Usually ships in 2-4 days

0

21

Echo 10001327430

PIN, PISTON

$8.99

$

Usually ships in 2-4 days

0

22

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 13

0

22

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 13

0

23

Echo 10001216131

BEARING, NEEDLE

$13.99

$

In Stock, only 3 left!

0

23

Echo 10001216131

BEARING, NEEDLE

$13.99

$

In Stock, only 3 left!

0

24

Echo 10001453630

SPACER, PISTON

$6.99

$

Usually ships in 2-4 days

0

24

Echo 10001453630

SPACER, PISTON

$6.99

$

Usually ships in 2-4 days

0

25

Echo 10010056930

CRANKSHAFT ASSY

$

$

Currently unavailable

25

Echo 10010056930

CRANKSHAFT ASSY

$

$

Currently unavailable

30

Echo 10020456930

CRANKCASE KIT

$

$

Currently unavailable

30

Echo 10020456930

CRANKCASE KIT

$

$

Currently unavailable

31

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 16

0

31

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 16

0

32

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 15

0

32

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 15

0

33

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

33

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

34

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$4.99

$

Usually ships in 2-4 days

0

34

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$4.99

$

Usually ships in 2-4 days

0

35

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

35

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

40

Echo 17500549930

DRUM, CLUTCH

$74.99

$

Usually ships in 2-4 days

0

40

Echo 17500549930

DRUM, CLUTCH

$74.99

$

Usually ships in 2-4 days

0

41

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

41

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

42

Echo 90080706001

BEARING, BALL - 6001

$13.99

$

In Stock, only 2 left!

0

42

Echo 90080706001

BEARING, BALL - 6001

$13.99

$

In Stock, only 2 left!

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

45

Echo 10151155430

COVER, FAN

$

$

Currently unavailable

45

Echo 10151155430

COVER, FAN

$

$

Currently unavailable

46

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

46

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

47

Echo 61091051830

CUSHION

$12.99

$

In Stock, only 1 left!

0

47

Echo 61091051830

CUSHION

$12.99

$

In Stock, only 1 left!

0

48

Echo P021012800

CLAMP KIT

$21.99

$

Usually ships in 2-4 days

0

48

Echo P021012800

CLAMP KIT

$21.99

$

Usually ships in 2-4 days

0

49

Echo 9111805025

SCREW - 5X25

$1.49

$

Usually ships in 2-4 days

0

49

Echo 9111805025

SCREW - 5X25

$1.49

$

Usually ships in 2-4 days

0

50

Echo 9111805012

SCREW - 5X12

$1.49

$

Usually ships in 2-4 days

0

50

Echo 9111805012

SCREW - 5X12

$1.49

$

Usually ships in 2-4 days

0

51

Echo 43706350430

GEAR - WORM

$

$

Currently unavailable

51

Echo 43706350430

GEAR - WORM

$

$

Currently unavailable

52

Echo 43700249931

AUTO-OILER ASSY

$

$

Currently unavailable

52

Echo 43700249931

AUTO-OILER ASSY

$

$

Currently unavailable

53

Echo 10012750430

COLLAR - 8

$

$

Currently unavailable

53

Echo 10012750430

COLLAR - 8

$

$

Currently unavailable

54

Echo 90024004016

SCREW - 4X16

$

$

Currently unavailable

54

Echo 90024004016

SCREW - 4X16

$

$

Currently unavailable

55

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

55

Echo 17881003930

GROMMET

$1.99

$

In Stock, only 1 left!

0

56

Echo 10158656930

SPACER

$

$

Currently unavailable

56

Echo 10158656930

SPACER

$

$

Currently unavailable

57

Echo 43724356930

GROMMET

$

$

Currently unavailable

57

Echo 43724356930

GROMMET

$

$

Currently unavailable

58

Echo 13271734330

PIPE - 2X4X115

$

$

Currently unavailable

58

Echo 13271734330

PIPE - 2X4X115

$

$

Currently unavailable
