SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) Loop Handle Parts Diagram

String Trimmer

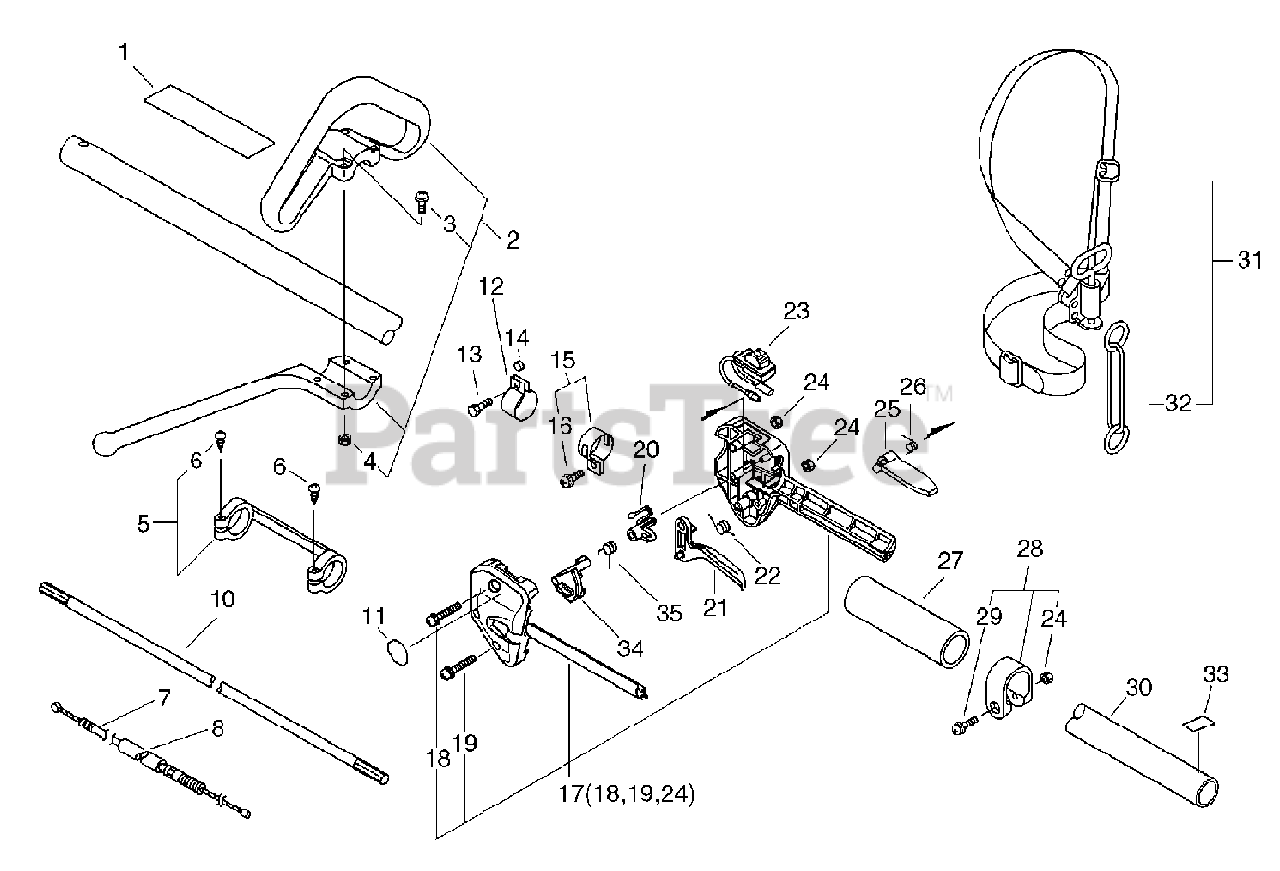

Loop Handle Parts Diagram

  • Title

1

Echo 89017746730

LABEL - CAUTION

Note: Sus. by 890617-43130

$

$

Currently unavailable

1

Echo 89017746730

LABEL - CAUTION

Note: Sus. by 890617-43130

$

$

Currently unavailable

1

Echo 89061763630

LABEL - CAUTION
(Superseded to Discontinued)

Note: Sus. by 890617-43130

$

$

Not available

1

Echo 89061763630

LABEL - CAUTION
(Superseded to Discontinued)

Note: Sus. by 890617-43130

$

$

Not available

1

Echo X505000140

LABEL - CAUTION

Note: Sus. by 890617-43130

$11.99

$

Usually ships in 2-4 days

0

1

Echo X505000140

LABEL - CAUTION

Note: Sus. by 890617-43130

$11.99

$

Usually ships in 2-4 days

0

1

Echo 89061743130

LABEL - CAUTION

$27.99

$

Usually ships in 2-4 days

0

1

Echo 89061743130

LABEL - CAUTION

$27.99

$

Usually ships in 2-4 days

0

2

Echo 35120155630

LOOP HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 35120155630

LOOP HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 61028142230

CLAMP KIT
(Superseded to Discontinued)

$

$

Not available

5

Echo 61028142230

CLAMP KIT
(Superseded to Discontinued)

$

$

Not available

6

Echo 90025304025

SCREW - 4X25

$0.99

$

In Stock, Qty 10

0

6

Echo 90025304025

SCREW - 4X25

$0.99

$

In Stock, Qty 10

0

7

Echo 17800224430

CABLE, THROTTLE

Note: Sus. by 178002-64730

$

$

Currently unavailable

7

Echo 17800224430

CABLE, THROTTLE

Note: Sus. by 178002-64730

$

$

Currently unavailable

7

Echo 17800264730

CABLE, THROTTLE

$

$

Currently unavailable

7

Echo 17800264730

CABLE, THROTTLE

$

$

Currently unavailable

8

Echo 17812755931

TUBE

$

$

Currently unavailable

8

Echo 17812755931

TUBE

$

$

Currently unavailable

10

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

10

Echo 61001106230

DRIVESHAFT

$55.99

$

Usually ships in 2-4 days

0

11

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

Note: Drive Shaft Sr/Nr 005809 and before

$2.99

$

Usually ships in 2-4 days

0

11

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

Note: Drive Shaft Sr/Nr 005809 and before

$2.99

$

Usually ships in 2-4 days

0

12

Echo 30120707530

HOOK

$6.99

$

Usually ships in 2-4 days

0

12

Echo 30120707530

HOOK

$6.99

$

Usually ships in 2-4 days

0

13

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 8

0

13

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 8

0

14

Echo 69901203330

SPACER

$1.99

$

In Stock, Qty 13

0

14

Echo 69901203330

SPACER

$1.99

$

In Stock, Qty 13

0

15

Echo 30120042230

HOOK ASSY

$10.99

$

Usually ships in 2-4 days

0

15

Echo 30120042230

HOOK ASSY

$10.99

$

Usually ships in 2-4 days

0

16

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

16

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

17

Echo 17800351830

THROTTLE BRACKET SET

Note: Sus. by P021-005890

$54.99

$

Usually ships in 2-4 days

0

17

Echo 17800351830

THROTTLE BRACKET SET

Note: Sus. by P021-005890

$54.99

$

Usually ships in 2-4 days

0

17

Echo P021005890

THROTTLE BRACKET SET

$

$

Currently unavailable

17

Echo P021005890

THROTTLE BRACKET SET

$

$

Currently unavailable

18

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

18

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 17801252630

LOCKOUT, THROTTLE

Note: Drive Shaft Sr/Nr 005809 and before

$5.49

$

Usually ships in 2-4 days

0

20

Echo 17801252630

LOCKOUT, THROTTLE

Note: Drive Shaft Sr/Nr 005809 and before

$5.49

$

Usually ships in 2-4 days

0

20

Echo C461000000

LOCKOUT, THROTTLE

Note: Drive Shaft Sr/Nr 005810 and after

$5.49

$

Usually ships in 2-4 days

0

20

Echo C461000000

LOCKOUT, THROTTLE

Note: Drive Shaft Sr/Nr 005810 and after

$5.49

$

Usually ships in 2-4 days

0

21

Echo 17801052130

TRIGGER, THROTTLE

Note: Drive Shaft Sr/Nr 005809 and before

$4.49

$

In Stock, Qty 20+

0

21

Echo 17801052130

TRIGGER, THROTTLE

Note: Drive Shaft Sr/Nr 005809 and before

$4.49

$

In Stock, Qty 20+

0

21

Echo V450000110

SPRING

Note: Drive Shaft Sr/Nr 005810 and after

$

$

Currently unavailable

21

Echo V450000110

SPRING

Note: Drive Shaft Sr/Nr 005810 and after

$

$

Currently unavailable

22

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

22

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

23

Echo 16340049930

SWITCH, IGNITION

$

$

Currently unavailable

23

Echo 16340049930

SWITCH, IGNITION

$

$

Currently unavailable

25

Echo 17809052630

LOCKOUT, THROTTLE
(Superseded to 17809052631)

Note: Sus. By 178090-52632

$3.99

$

In Stock, only 3 left!

0

25

Echo 17809052630

LOCKOUT, THROTTLE
(Superseded to 17809052631)

Note: Sus. By 178090-52632

$3.99

$

In Stock, only 3 left!

0

25

Echo 17809052631

LOCKOUT, THROTTLE
(Superseded to 17809052632)

Note: Sus. by 178090-52632

$3.99

$

In Stock, only 3 left!

0

25

Echo 17809052631

LOCKOUT, THROTTLE
(Superseded to 17809052632)

Note: Sus. by 178090-52632

$3.99

$

In Stock, only 3 left!

0

25

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$3.99

$

In Stock, only 3 left!

0

25

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$3.99

$

In Stock, only 3 left!

0

26

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.99

$

In Stock, Qty 17

0

26

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.99

$

In Stock, Qty 17

0

27

Echo 35121351830

GRIP, HANDLE - FRONT

$14.99

$

Usually ships in 2-4 days

0

27

Echo 35121351830

GRIP, HANDLE - FRONT

$14.99

$

Usually ships in 2-4 days

0

28

Echo 61027251830

BAND

$23.99

$

Usually ships in 2-4 days

0

28

Echo 61027251830

BAND

$23.99

$

Usually ships in 2-4 days

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

29

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

30

Echo 61020656930

PIPE, MAIN

$250.99

$

Usually ships in 2-4 days

0

30

Echo 61020656930

PIPE, MAIN

$250.99

$

Usually ships in 2-4 days

0

31

Echo 30100055230

HARNESS ASSY
(Superseded to 30100055232)

Note: Sus. by 301000-55231

$98.99

$

Usually ships in 2-4 days

0

31

Echo 30100055230

HARNESS ASSY
(Superseded to 30100055232)

Note: Sus. by 301000-55231

$98.99

$

Usually ships in 2-4 days

0

31

Echo 30100055231

HARNESS ASSY

$

$

Currently unavailable

31

Echo 30100055231

HARNESS ASSY

$

$

Currently unavailable

32

Echo 30130524330

HOOK

$12.99

$

Usually ships in 2-4 days

0

32

Echo 30130524330

HOOK

$12.99

$

Usually ships in 2-4 days

0

33

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

33

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

34

Echo C461000010

LOCKOUT, THROTTLE

Note: Can be used P021-005890 only

$5.99

$

Usually ships in 2-4 days

0

34

Echo C461000010

LOCKOUT, THROTTLE

Note: Can be used P021-005890 only

$5.99

$

Usually ships in 2-4 days

0

35

Echo V452000120

SPRING

Note: Can be used P021-005890 only

$2.99

$

Usually ships in 2-4 days

0

35

Echo V452000120

SPRING

Note: Can be used P021-005890 only

$2.99

$

Usually ships in 2-4 days

0
